Frigidaire FLCE752CAW - INSTALLATION; Laundry center dimensions

18
INSTALLATION

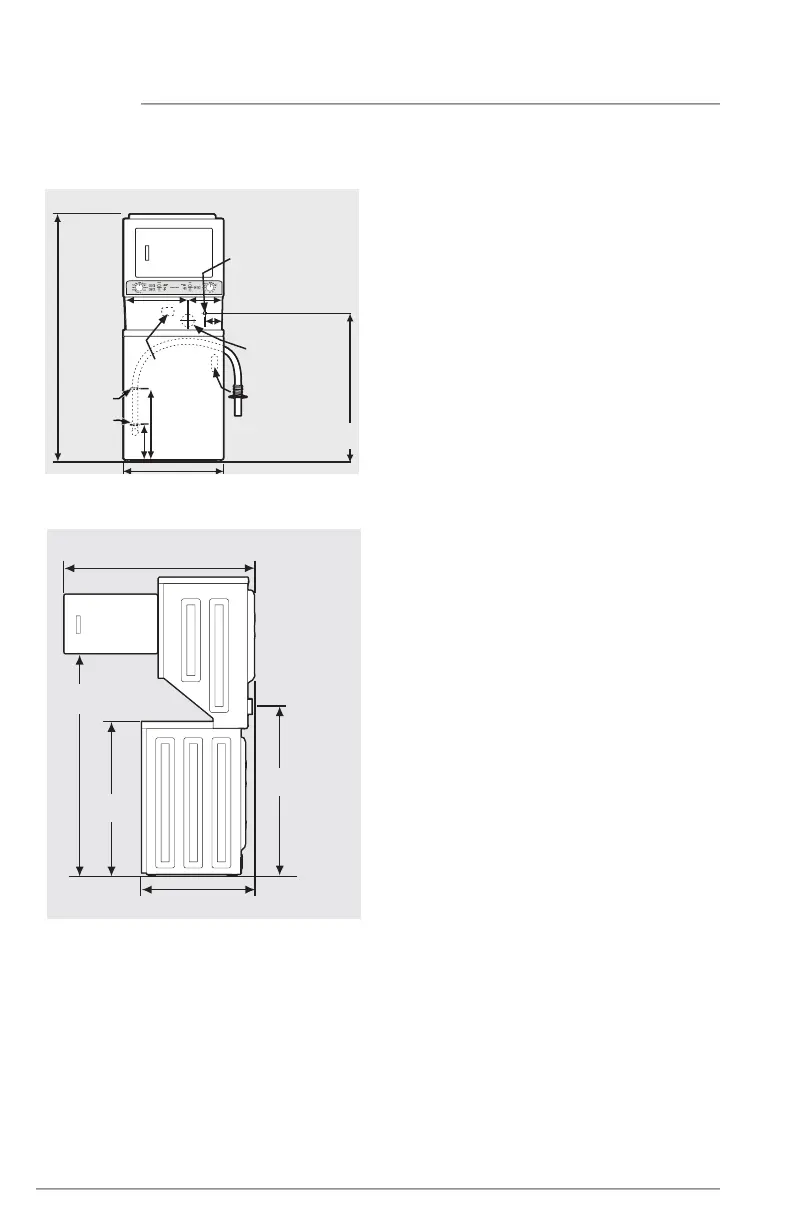

Laundry center dimensions
1
Power supply cord length on gas unit
approximately 60 inches (152.5 cm).
2
Loose drain hose length beyond clamp
approximately 51.5 inches (131 cm).
31.5" (80 cm)
47.5" (120.5 cm)
31.5" (80 cm)
38"
(96.5 cm)
55.75"
(141.5 cm)
41.5"
(105.5 cm)
center line height
for 4 in. (102 mm)
exhaust outlet
Side view
27" (68.5 cm)
4 in. (102 mm)
exhaust vent
on rear of unit
drain
hose-
retention
clips on
rear of
washer
2
water supply
connection on
rear of washer
power cord
attachment
location on
rear of unit
1
43.5"
(110.5
cm)
9.4"
(24 cm)
5.5"
(14 cm)
Front view
gas supply
pipe on rear
of gas unit
13"
(33 mm)
77"
(196.5 cm)
17.6"
(45 cm)
23"
(58.5 cm)
