Frigidaire FLCE752CAW0 - Installation Guide; Laundry Center Dimensions

18
INSTALLATION

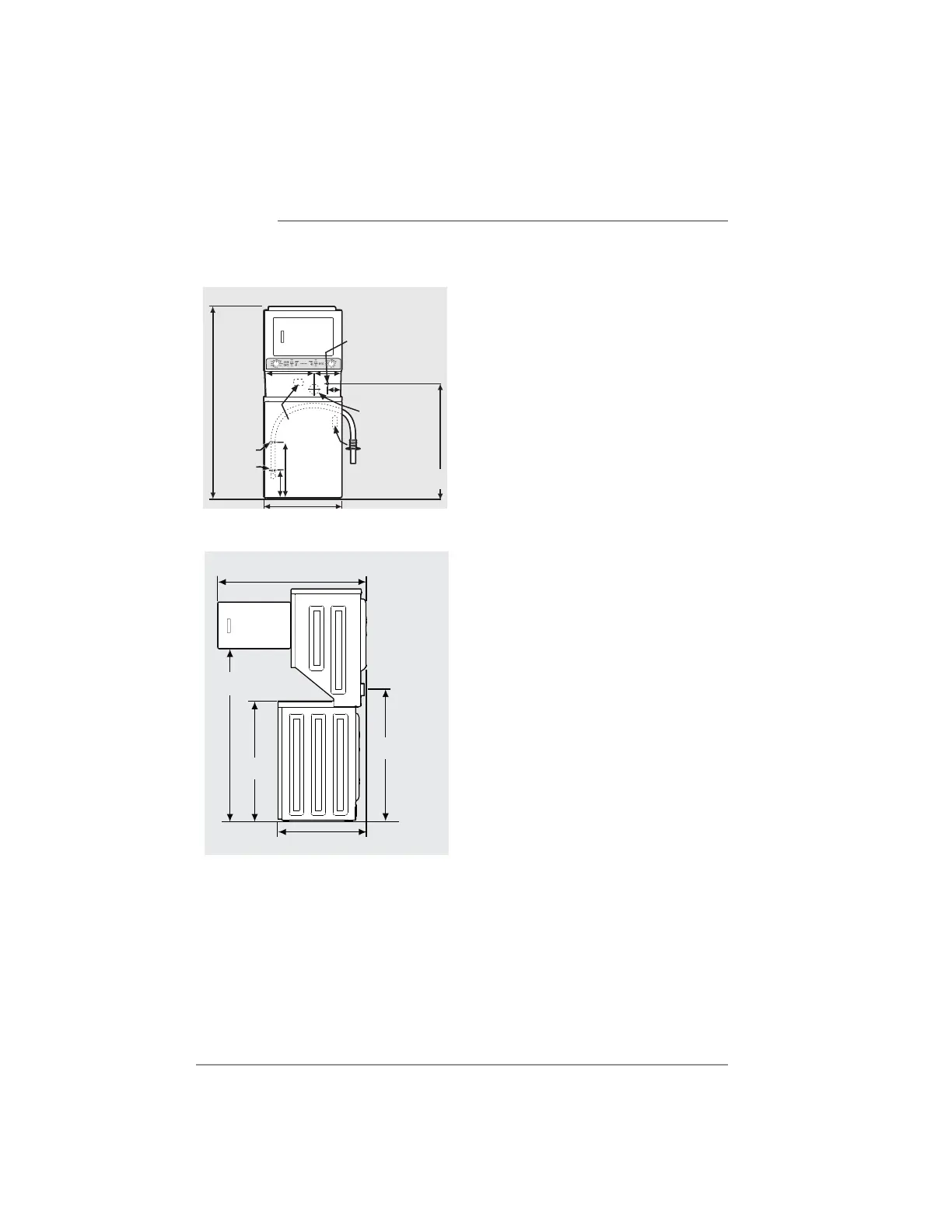

Laundry center dimensions
1
Power supply cord length on gas unit
approximately 60 inches (152.5 cm).
2
Loose drain hose length beyond clamp
approximately 51.5 inches (131 cm).
31.5" (80 cm)
47.5" (120.5 cm)
31.5"
(
80 cm
)
38"
(96.5 cm)
55.75"
(141.5 cm)
41.5"
(105.5 cm)
center line height
for 4 in. (102 mm)
exhaust outlet
Side view
4 in. (102 mm)
exhaust vent
on rear of unit
drain
hose-
retention
clips on
rear of
washer
2
water supply
connection on
rear of washer
power cord
attachment
location on
rear of unit
1
43.5"
(110.5 c
m
9.4"
(24 cm)
5.5"
(14 cm)
Front view
gas supply
pipe on rear
of gas unit
13"
(33 mm)
77"
(196.5 cm)
17.6"
(45 cm)
23"
(58.5 cm)
