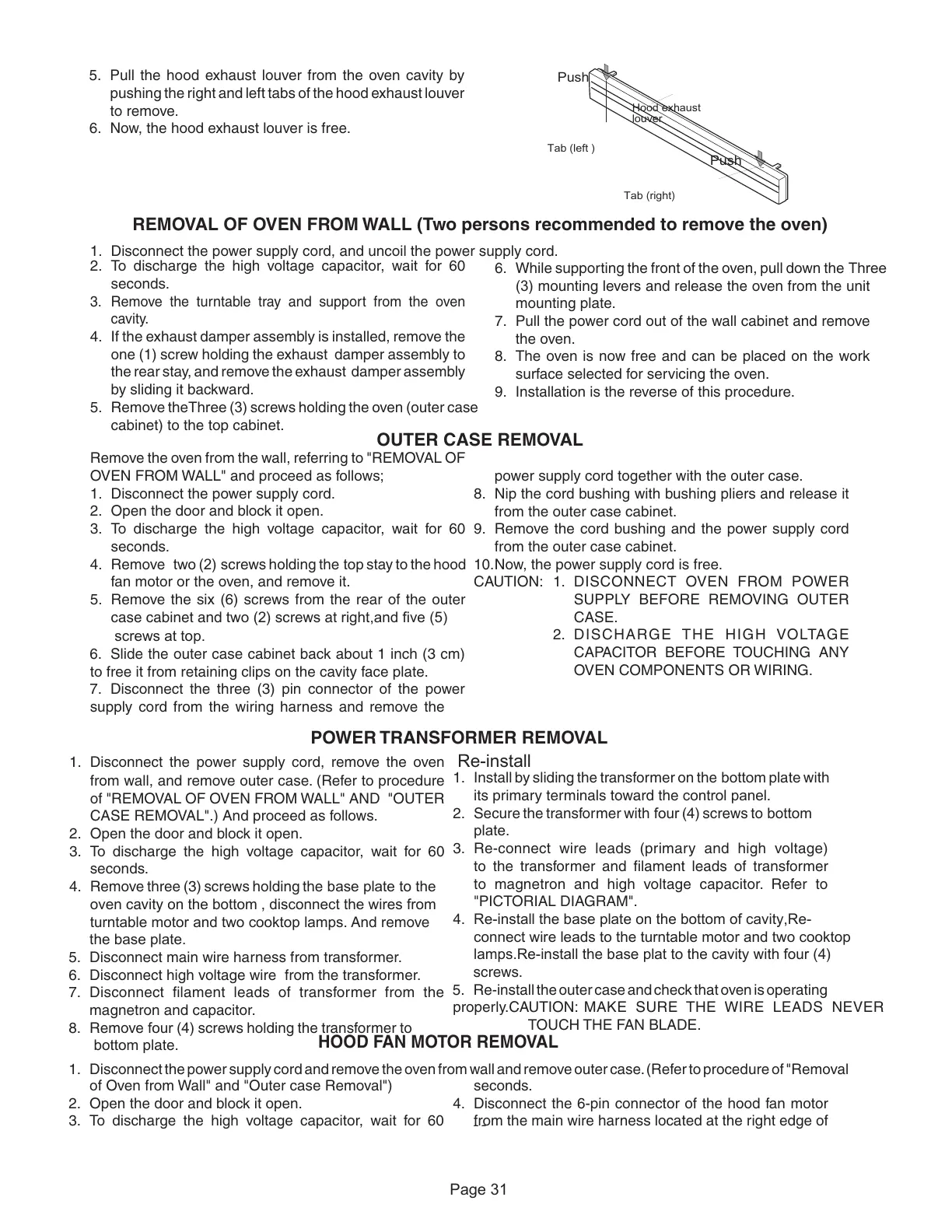

REMOVAL OF OVEN FROM WALL (Two persons recommended to remove the oven)
1. Disconnect the power supply cord, and uncoil the power supply cord.
2. To discharge the high voltage capacitor, wait for 60
seconds.
3. Remove the turntable tray and support from the oven
cavity.
4. If the exhaust damper assembly is installed, remove the
one (1) screw holding the exhaust damper assembly to
the rear stay, and remove the exhaust damper assembly
by sliding it backward.
5. Remove theThree (3) screws holding the oven (outer case
cabinet) to the top cabinet.
6. While supporting the front of the oven, pull down the Three
(3) mounting levers and release the oven from the unit
mounting plate.
7. Pull the power cord out of the wall cabinet and remove
the oven.
8. The oven is now free and can be placed on the work
surface selected for servicing the oven.
9. Installation is the reverse of this procedure.
OUTER CASE REMOVAL
Remove the oven from the wall, referring to "REMOVAL OF
OVEN FROM WALL" and proceed as follows;
1. Disconnect the power supply cord.
2. Open the door and block it open.
3. To discharge the high voltage capacitor, wait for 60
seconds.
4. Remove two (2) screws holding the top stay to the hood
fan motor or the oven, and remove it.
5. Remove the six (6) screws from the rear of the outer
case cabinet and two (2) screws at right,and five (5)
screws at top.
6. Slide the outer case cabinet back about 1 inch (3 cm)
to free it from retaining clips on the cavity face plate.
7. Disconnect the three (3) pin connector of the power
supply cord from the wiring harness and remove the
power supply cord together with the outer case.
8. Nip the cord bushing with bushing pliers and release it
from the outer case cabinet.
9. Remove the cord bushing and the power supply cord
from the outer case cabinet.
10.Now, the power supply cord is free.
CAUTION: 1. DISCONNECT OVEN FROM POWER
SUPPLY BEFORE REMOVING OUTER
CASE.
2. DISCHARGE THE HIGH VOLTAGE
CAPACITOR BEFORE TOUCHING ANY
OVEN COMPONENTS OR WIRING.
POWER TRANSFORMER REMOVAL
1. Disconnect the power supply cord, remove the oven Re-install
from wall, and remove outer case. (Refer to procedure
of "REMOVAL OF OVEN FROM WALL" AND "OUTER
CASE REMOVAL".) And proceed as follows.
2. Open the door and block it open.
3. To discharge the high voltage capacitor, wait for 60
seconds.
4. Remove three (3) screws holding the base plate to the
oven cavity on the bottom , disconnect the wires from
turntable motor and two cooktop lamps. And remove
the base plate.
5. Disconnect main wire harness from transformer.
6. Disconnect high voltage wire from the transformer.
7. Disconnect filament leads of transformer from the
magnetron and capacitor.
8. Remove four (4) screws holding the transformer to
bottom plate.
1. Install by sliding the transformer on the bottom plate with
its primary terminals toward the control panel.
2. Secure the transformer with four (4) screws to bottom
plate.
3. Re-connect wire leads (primary and high voltage)
to the transformer and filament leads of transformer
to magnetron and high voltage capacitor. Refer to
"PICTORIAL DIAGRAM".
4. Re-install the base plate on the bottom of cavity,Re-
connect wire leads to the turntable motor and two cooktop
lamps.Re-install the base plat to the cavity with four (4)
screws.
5. Re-install the outer case and check that oven is operating
properly.CAUTION: MAKE SURE THE WIRE LEADS NEVER
TOUCH THE FAN BLADE.
5. Pull the hood exhaust louver from the oven cavity by
pushing the right and left tabs of the hood exhaust louver
to remove.
6. Now, the hood exhaust louver is free.
HOOD FAN MOTOR REMOVAL
1. Disconnect the power supply cord and remove the oven from wall and remove outer case. (Refer to procedure of "Removal
of Oven from Wall" and "Outer case Removal")
2.
Open the door and block it open.
3. To discharge the high voltage capacitor, wait for 60
seconds.
4. Disconnect the 6-pin connector of the hood fan motor
from the main wire harness located at the right edge of
Hood exhaust
louver
Tab (left )
Tab (right)
Push
Push
