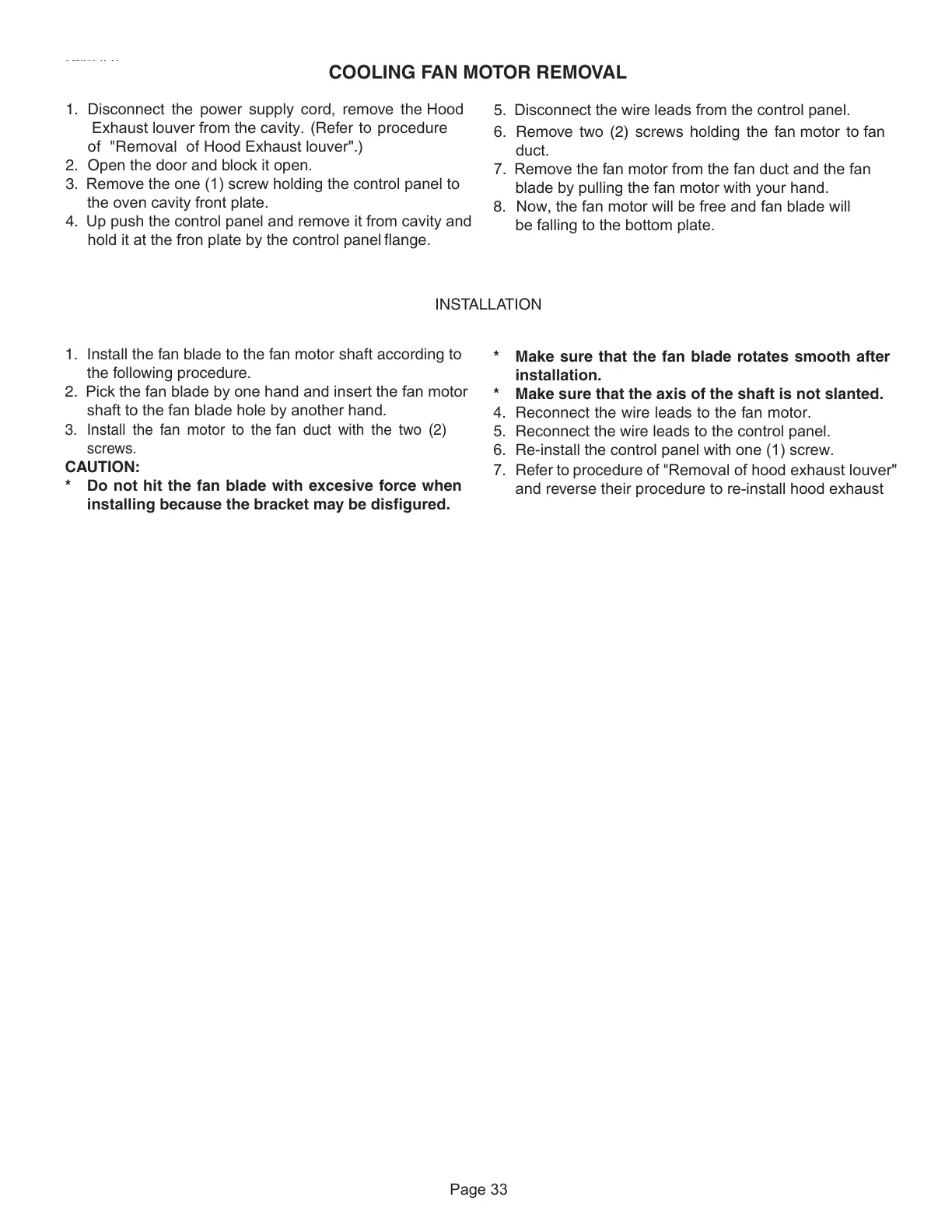

1. Disconnect the power supply cord, remove the Hood
Exhaust louver from the cavity. (Refer to procedure
of "Removal of Hood Exhaust louver".)
2. Open the door and block it open.
3. Remove the one (1) screw holding the control panel to
the oven cavity front plate.
4. Up push the control panel and remove it from cavity and
hold it at the fron plate by the control panel flange.
5. Disconnect the wire leads from the control panel.
6. Remove two (2) screws holding the fan motor to fan
duct.
7. Remove the fan motor from the fan duct and the fan
blade by pulling the fan motor with your hand.
COOLING FAN MOTOR REMOVAL
be falling to the bottom plate.
INSTALLATION
1. Install the fan blade to the fan motor shaft according to
the following procedure.
2. Pick the fan blade by one hand and insert the fan motor
shaft to the fan blade hole by another hand.
screws.
* Do not hit the fan blade with excesive force when
installing because the bracket may be disfigured.
*
Make sure that the fan blade rotates smooth after
installation.
* Make sure that the axis of the shaft is not slanted.
and reverse their procedure to re-install hood exhaust
3. Install the fan motor to the fan duct with the two (2)
4. Reconnect the wire leads to the fan motor.
6. Re-install the control panel with one (1) screw.
CAUTION:
5. Reconnect the wire leads to the control panel.
7. Refer to procedure of "Removal of hood exhaust louver"
8. Now, the fan motor will be free and fan blade will
FMV157GQ
FMV157GC
