13
CONNECTING WATER SUPPLY
5. With steel clamp and screw, secure water supply line (copper tubing only) to rear panel of
freezer as shown.
6. Coil excess water supply line (copper tubing only), about 2½ turns, behind freezer as
shown and arrange coils so they do not vibrate or wear against any other surface.
7. Turn ON water supply at shutoff valve and tighten any connections that leak.
8. Reconnect freezer to electrical power source.
9. To turn ice maker on, lower wire signal arm (side-mounted) or set the ice maker’s On/Off
power switch to the “I” position (rear-mounted).
Plastic Water
Tubing to Ice
Maker Fill
Tube
Bracket
Valve Inlet
Water Valve
Copper water line
from household
water supply
(Include enough tubing in loop
to allow moving refrigerator out
for cleaning.)

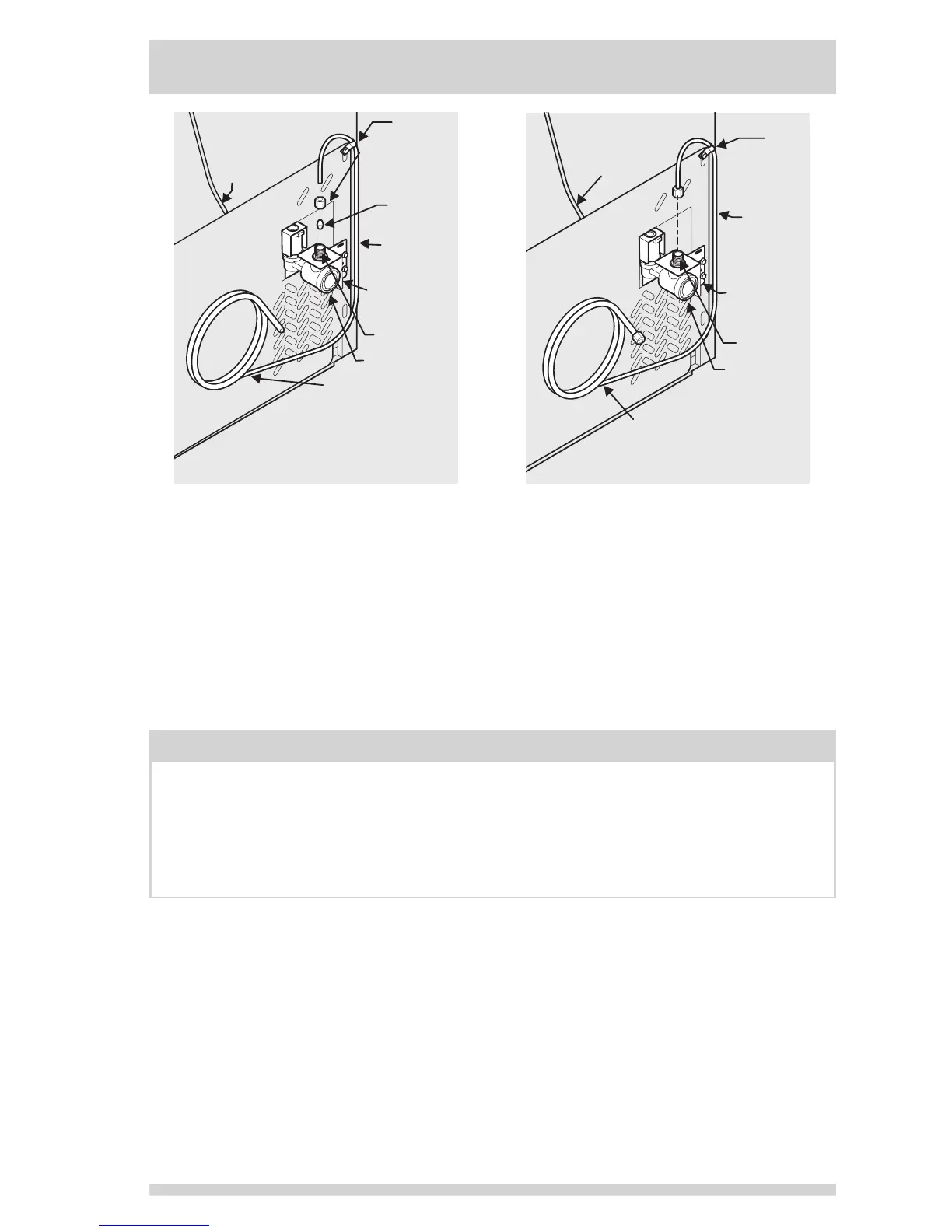

Figure A. Copper Water Line Connection
Steel
Clamp
Stainless
Steel
water Line
Water Valve
Bracket
Valve Inlet
Water Valve
6 ft. Stainless Steel water line
from household water supply
Plastic Water Tubing
to Ice Maker
Fill Tube
Figure B. Stainless Steel Water Line Connection
NOTE
Check with your local building authority for recommendations on water lines and associated
materials prior to installing your new freezer. Depending on your local/state building codes,
Frigidaire recommends for homes with existing valves its Smart Choice
®
water line kit
5305513409 (with a 6 ft. Stainless Steel Water Line) and for homes without an existing valve,
Frigidaire recommends its Smart Choice
®
water line kit 5305510264 (with a 20 ft. Copper
Water Line with selftapping saddle valve). Please refer to http://frigidaire.stores.yahoo.net for
more information.
