Frigidaire FRA106HT10 - Operation; PTAC Controls; About the Controls on Your Unit

[] hi
[] reed
[] b
temp/timer
[] indoor
[] set#oint
[] cool
[]fanonly
[] heat
[]
[] auto []

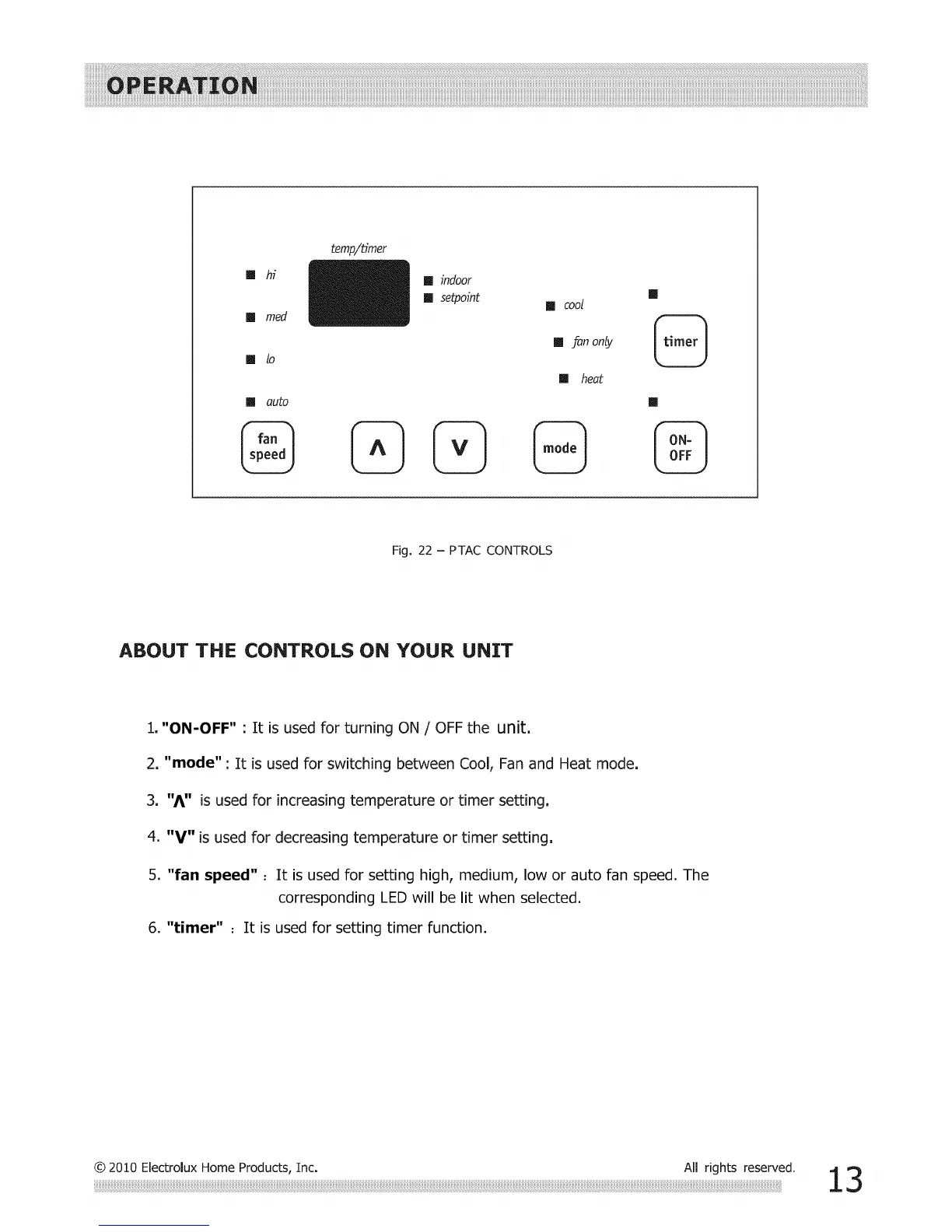

Fig. 22 - PTAC CONTROLS
ABOUT THE CONTROLS ON YOUR UNIT
i."ON-OFF" : Itisused forturningON / OFF the unit.
2."mode": Ttisused forswitchingbetween Cool,Fan and Heat mode.
3. "A" Jsused forincreasingtemperature ortimersetting.
4. "V" isused fordecreasingtemperature or timersetting.
5. "fan speed" : Itisused forsettinghigh,medium, low or auto fan speed.The
correspondingLED willbe litwhen selected.
6. "timer" : Itisused forsettingtimerfunction.
© 2010 Electrolux Home Products, Inc. All rights reserved.
13
