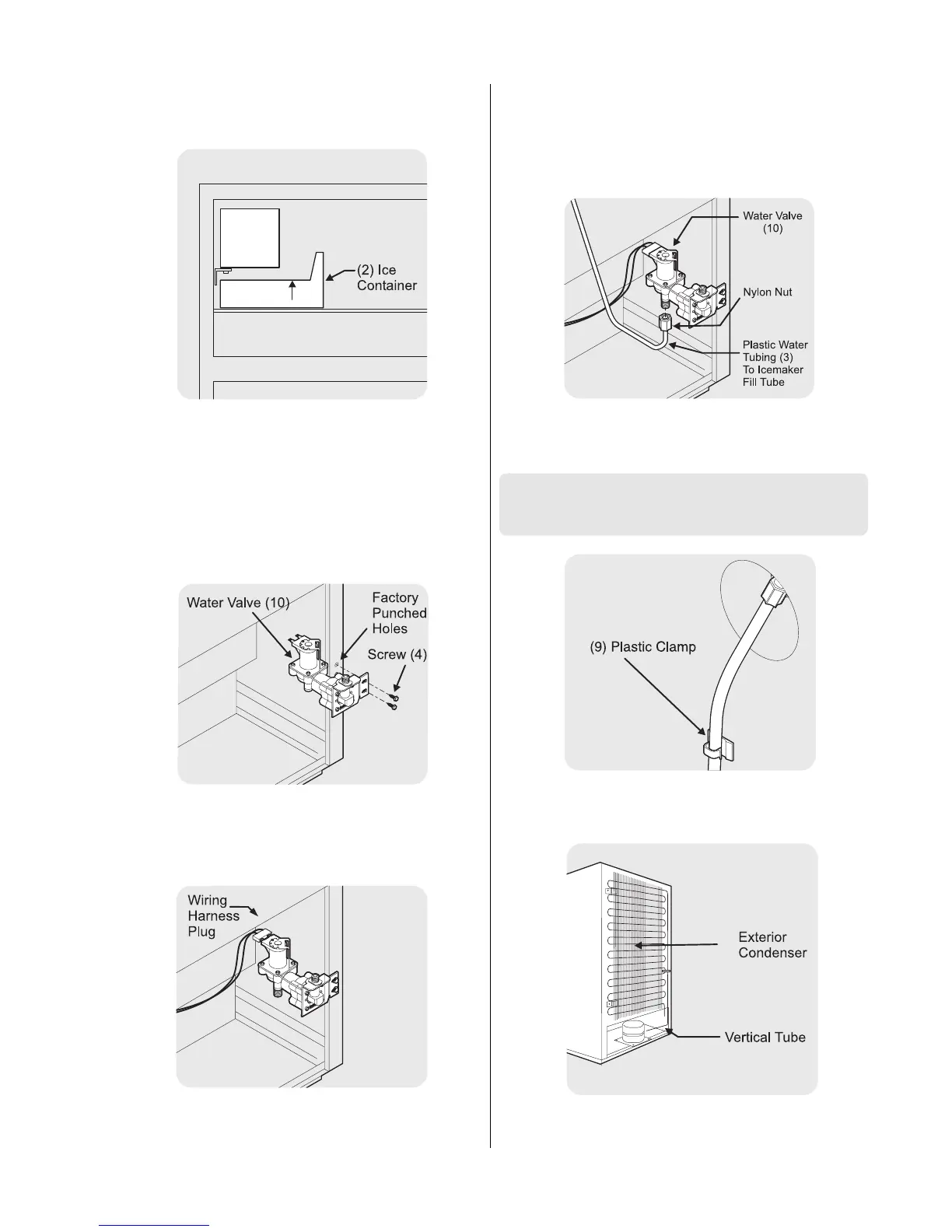

16. Locate factory punched holes at bottom right corner
of rear panel. Holes are only drilled through cabinet
liner. Align water valve bracket with factory drilled
holes. Use a power drill with a Phillips
®
head bit to
drive the two self drilling screws (4) through bracket
and into cabinet.
17. Connect wiring harness to water valve. Make sure
connection is tight.
18. Push plastic water supply tubing into bottom of water
valve as far as it will go. Finger tighten nylon
compression nut onto threaded end of water valve.
Tighten another one half turn with wrench. DO NOT
over tighten.
20. On models with exterior condenser, reinstall
condenser brackets and tighten down screws.
19. Secure plastic water tubing to rear of cabinet with
two plastic clamps (9).
NOTE: Clean back of cabinet with a commercial
household cleaner, ammonia or alcohol before
applying clamps.
15. Reinstall freezer shelf in lower position. Set ice
container (2) on shelf.
21. On refrigerators with dynamic condensers, remount
sound baffle, if installed. See step 5.
