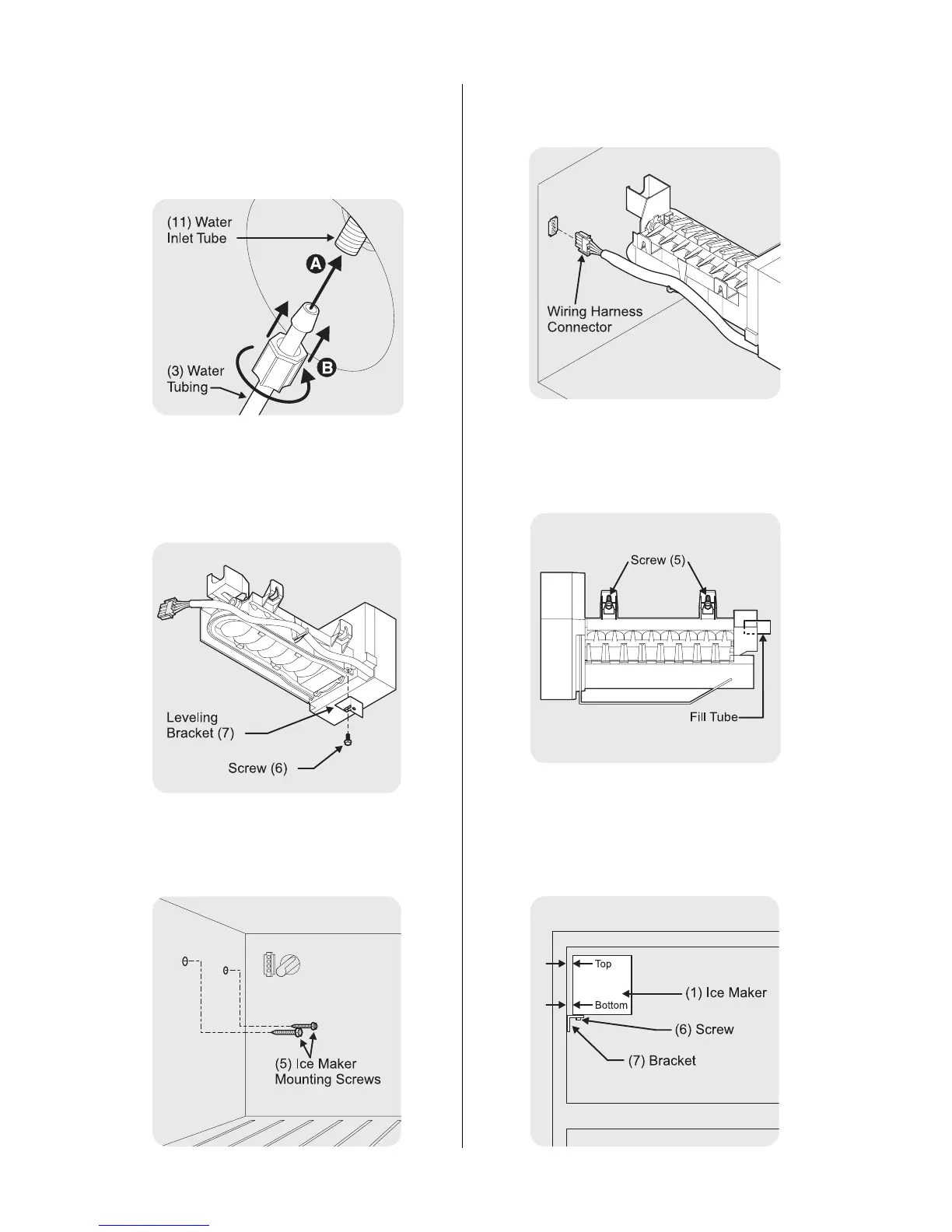

10. Install adjustable leveling bracket (7) on bottom of
ice maker with screw (6). DO NOT tighten bracket.
(Bracket will be tightened later.)
11. Start two, long, ice maker mounting screws (5) into
freezer wall. Turn each screw five turns clockwise.
12. With ice maker in one hand, plug ice maker
connector into connector mounted on back freezer
panel. Make sure connection is tight.
13. Mount ice maker onto two screws (5) you installed
in Step 12.Tighten screws. Make sure water inlet
tube (11) is sitting inside fill cup.
14. Adjust leveling bracket (7) to level ice maker (1). Ice
maker is level when gap between freezer wall and
ice maker is same at top and bottom. Tighten screw
(6) when level.
9. Push plastic water supply tubing (3) into water inlet
tube (11) as far as it will go and finger tighten nylon
compression nut onto threaded end of inlet tube.
Tighten another one half turn with a wrench. DO NOT
over tighten.
