FRIGOMAR ENG - CU50VFD-CU70VFD 20190108.doc81218 Page 14 of 24
Touch buttons:
1. ECO: ECO mode can be activated by touching ECO symbol, in heating or cooling mode.
ECO symbol will change color from neutral to green once activated and vice versa.
2. SUN and SNOW FLAKE: by touching SUN the heating mode will be activated and the symbol
will change color from neutral to red, by touching the SNOW FLAKE symbol the mode will shift
to cooling and the SNOW FLAKE symbol will change the color from neutral to blue. If shifting
from cooling to heating or vice versa, the compressor must stop for 3 min before restarting,
while the fresh water pump keeps running and the seawater pump stops as the compressor
stops and restarts slightly before the compressor restarts, as usual.
3. SET: by touching the symbol SET we get access to the page “MENU and SETTINGS”.
4. ALARM: by touching the symbol we get access to “Saved Alarm Show” page.
Alarm reset: by pressing more than 5 s the alarm symbol
5. ON/OFF: by touching the symbol either we switch ON or OFF the unit. If the unit is working and
we press ON/OFF the units will be switched off and if we press again ON/OFF the unit restarts
maintaining the previous selected mode (heating/cooling and ECO activate /disabled).

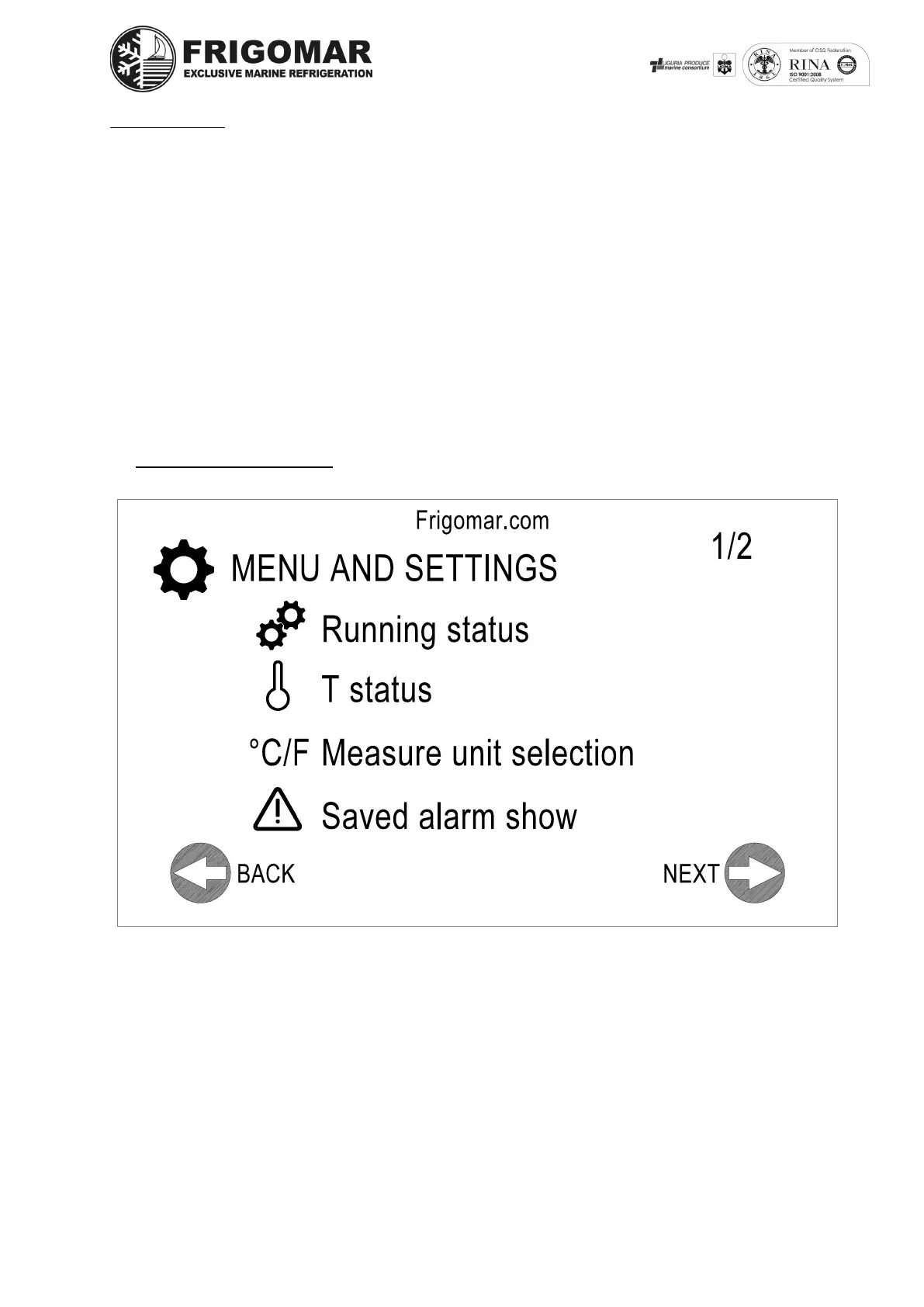

4.3 PAGE MENU SETTINGS 1/2 :
