Ceiling Cassette FCU
1. Connection the pipe
a) Cut the opening in the false ceiling to allow the fan coil to be inserted.
b) Position the tie rods and fix them to the load bearing structures.
c) Adjust the height of the unit and keeps it horizontal using a levelling.

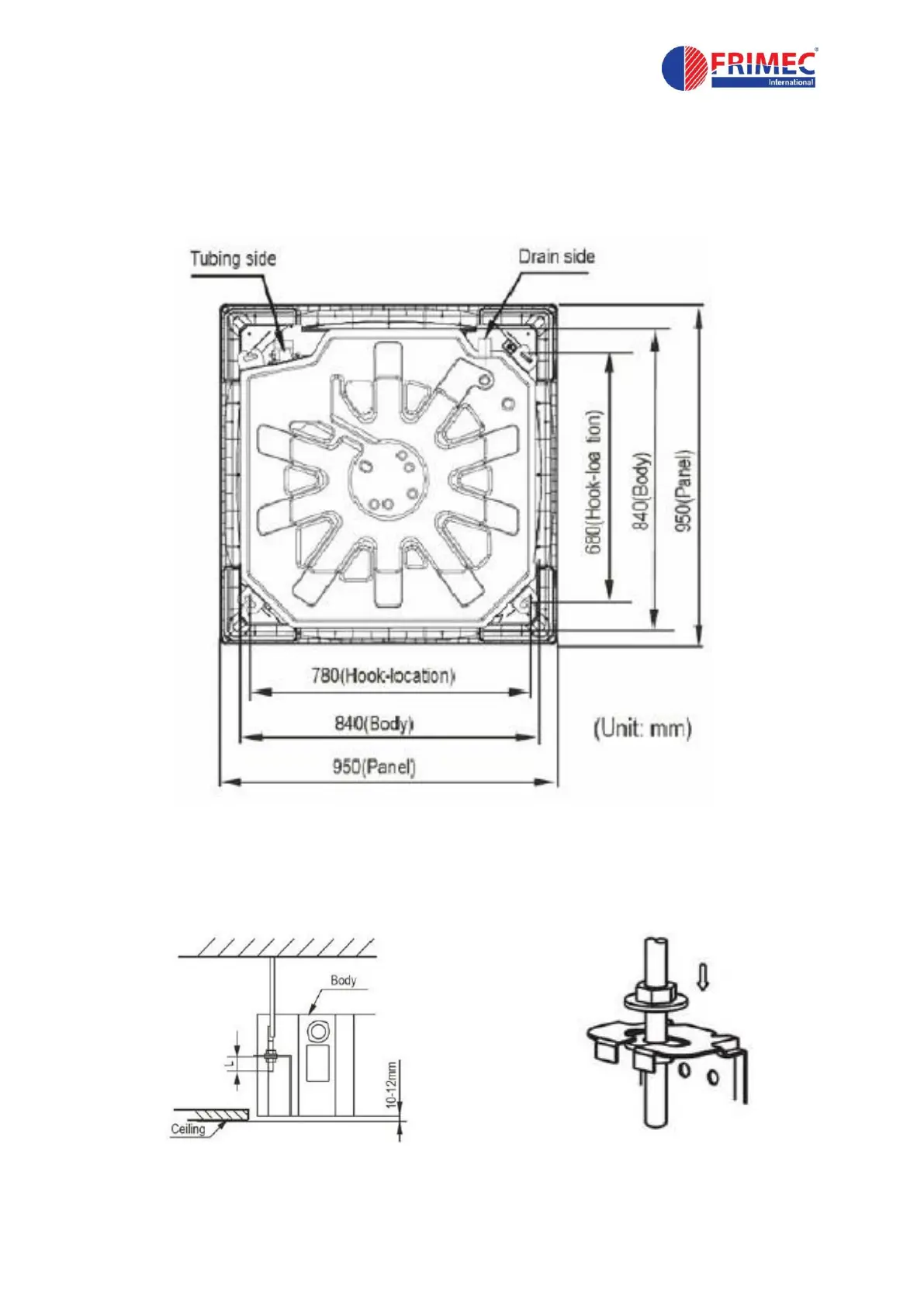

d) Adjust the position to ensure the gaps between the body and the four sides of ceiling are
even. The body’s lower part should sink into the ceiling for 10~12 mm. (Refer to Fig.1)
e) In general, L is half of the screw length of the installation hook. (Refer to Fig.1)
f) Locate the air conditioner firmly by wrenching the nuts after having adjusted the body’s
position well. (Refer to Figure 2)
