Fronius FK 2200 - Connecting the Welding Torch; Connect Welding Torch with Power Source; Connect Welding Torch with Cooling Unit

24
Connecting the welding torch
Connect welding
torch with power
source
Connect welding torch with power source (see operating instructions “Power Source“).
Connect welding
torch with cooling
unit

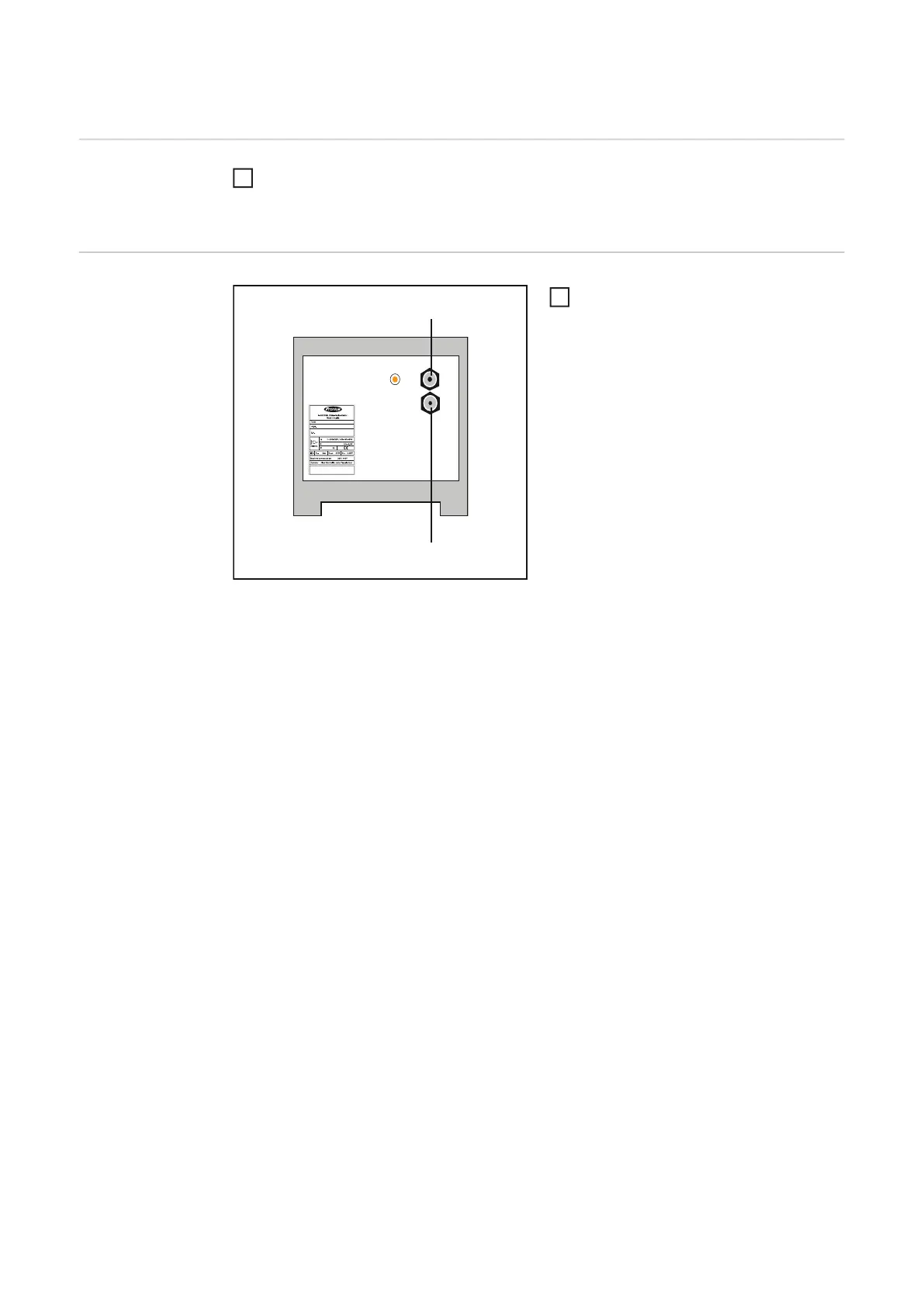

Water connections for the welding torch
Connect water connections of the wel-
ding torch with the connections of wa-
ter flow (5) - black - and water return (6)
- red - of the cooling unit.
1
(6)
(5)
1
