Fitting the cooling unit to the trolley
General The welding system can be fitted to a trolley to make the entire system more mobile.
NOTE!
If the welding system is not equipped with an auto-transformer, the cooling unit
must be installed right at the bottom.
Fitting the cool-
ing unit to the
trolley
1

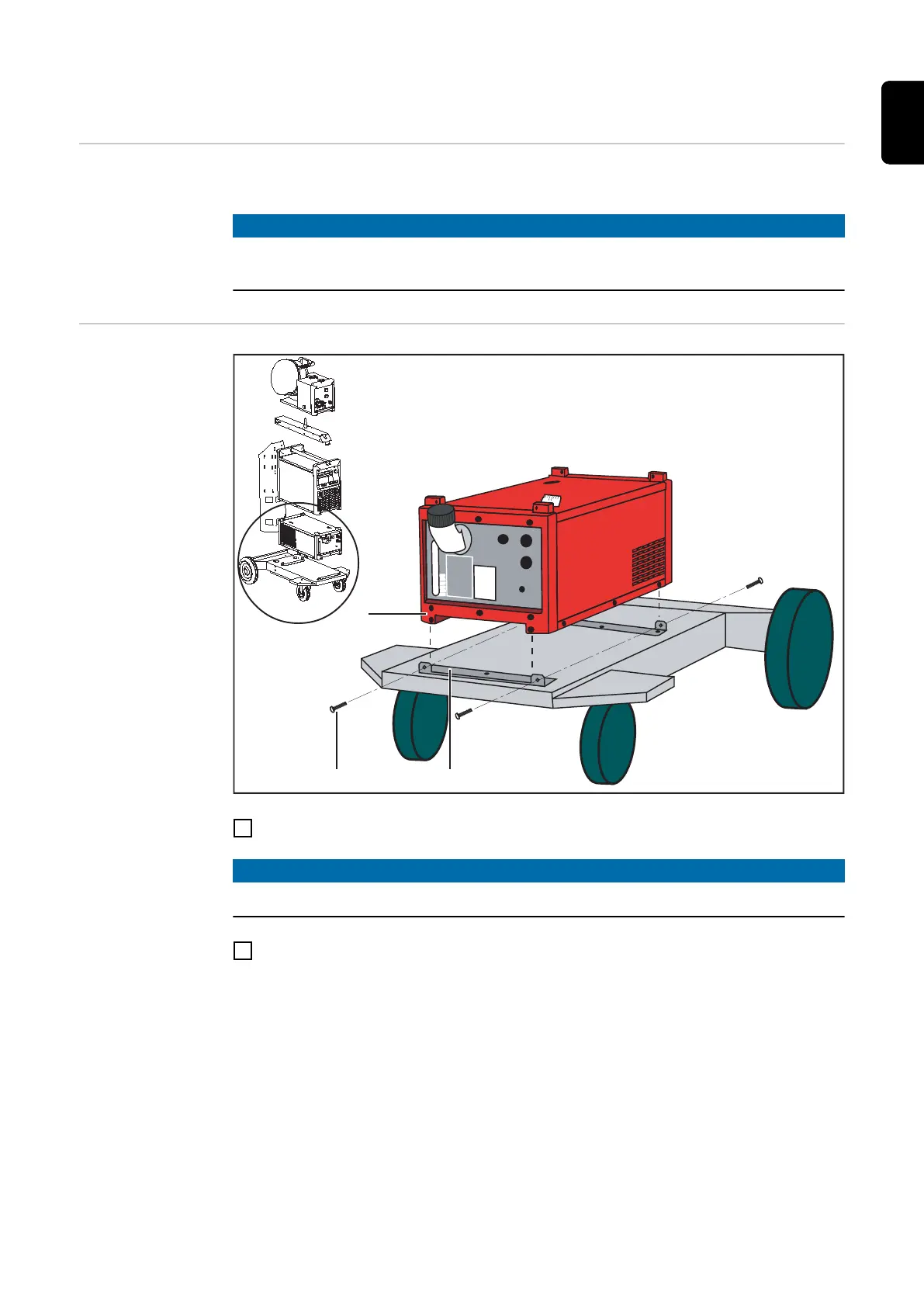

Place the cooling unit on the trolley base and fixing bracket (1)
NOTE!
The fixing brackets must be placed within the plastic feet (2) of the cooling unit.
2
Secure the cooling unit to the fixing brackets using the four TX 25 screws provided
(3), two at the front and two at the back
(* Trolley scope of supply
