Mounting the PushPull hosepack CWF 25i Drive
R/G/W/FSC
Mounting the KD
Drive cold-wire
drive unit on the
torch hosepack

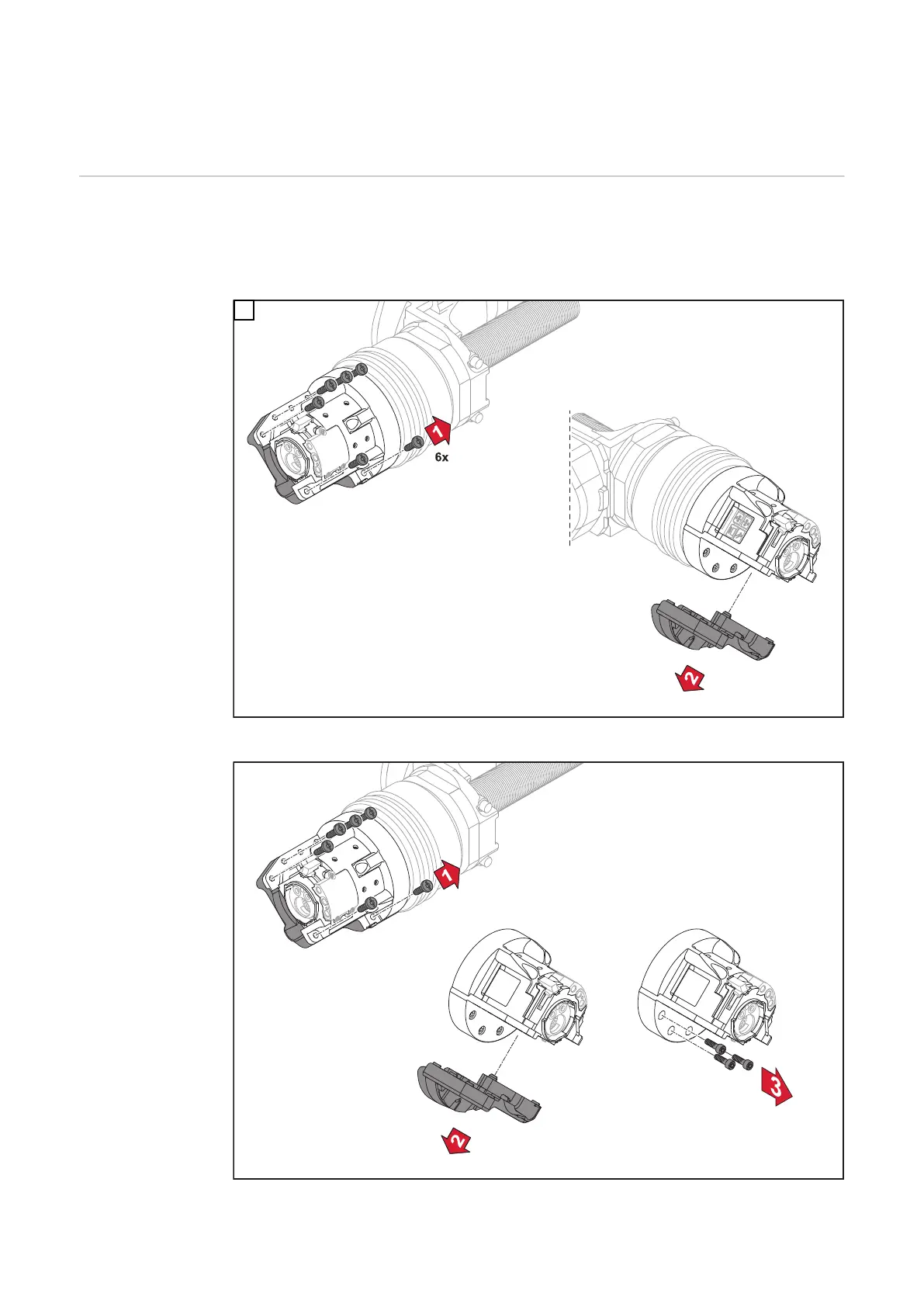

The KD Drive cold-wire drive unit is mounted on the headpiece of the torch
hosepack, regardless of whether you are using a conventional or PAP robot.
The following work steps demonstrate assembly on a PAP robot.
1
Only for a conventional robot:
143
