Rotation-direction indicator
On/off switch
with lock
Sleeve
Spindle
Nut
Grinding disc
Nut and pin
to hold wheel
Screws
Cover
US Version
Power Consumption 710 W 710 W
Voltage 230 V 120 V
No Load Speed 13.000 - 34.000 min
-1
13.000 - 34.000 min
-1
Sleeve-Ø 43 mm 43 mm
Tension rod-Ø 6 mm 6 mm
Grinding Wheel-Ø 50 mm 50 mm
Weight without cable 1880 g 1880 g
SPECIAL SAFETY INSTRUCTIONS
● Observe the safety guidelines in this manual!
● Sockets in open air should be equipped with a leak-power security switch. This
is prescribed for your electrical tool. Please apply this when using our equip-
ment.
● When using this machine always wear protective glasses and also gloves,
closed and antislip shoes and an apron.
● Insert the plug into an electrical socket only if the machine is turned off.
● Remove the plug from the electrical socket before doing any work on the ma-
chine.
● Keeptheexawayfromtheareawhereyouareworking.Runtheexaway
from the back of the machine.
● After disconnecting the spindle is still turning, lay down the tool only after com-
plete standstill.
● Do not reach into the danger zone of machinery that is turned on.
● Only use tools with an rpm at least as high as the highest idle rpm of the ma-
chine.
● Inspect the grinding wheel before use. The wheel must be perfectly mounted in
order to turn freely. Test the wheel for at least 30 seconds before use. Do not
use wheels that are damaged, asymmetrical, or that vibrate.
● Grinding metals originate sparks. Please take care nobody gets hurt. Do to
rehazardnocombustiblematerialsshouldbeincloserange.Donotusfume
extractors.
● Please hold the engine in such a way that sparks and grinding dust are blow
away from your body.
● Tighten the tension nut before each use of the machine.
● Underextremeelectromagneticinterferencefromoutside,mayoccurtempo-
rary alternations in rotations.
● Keep always the vent-holes clean.

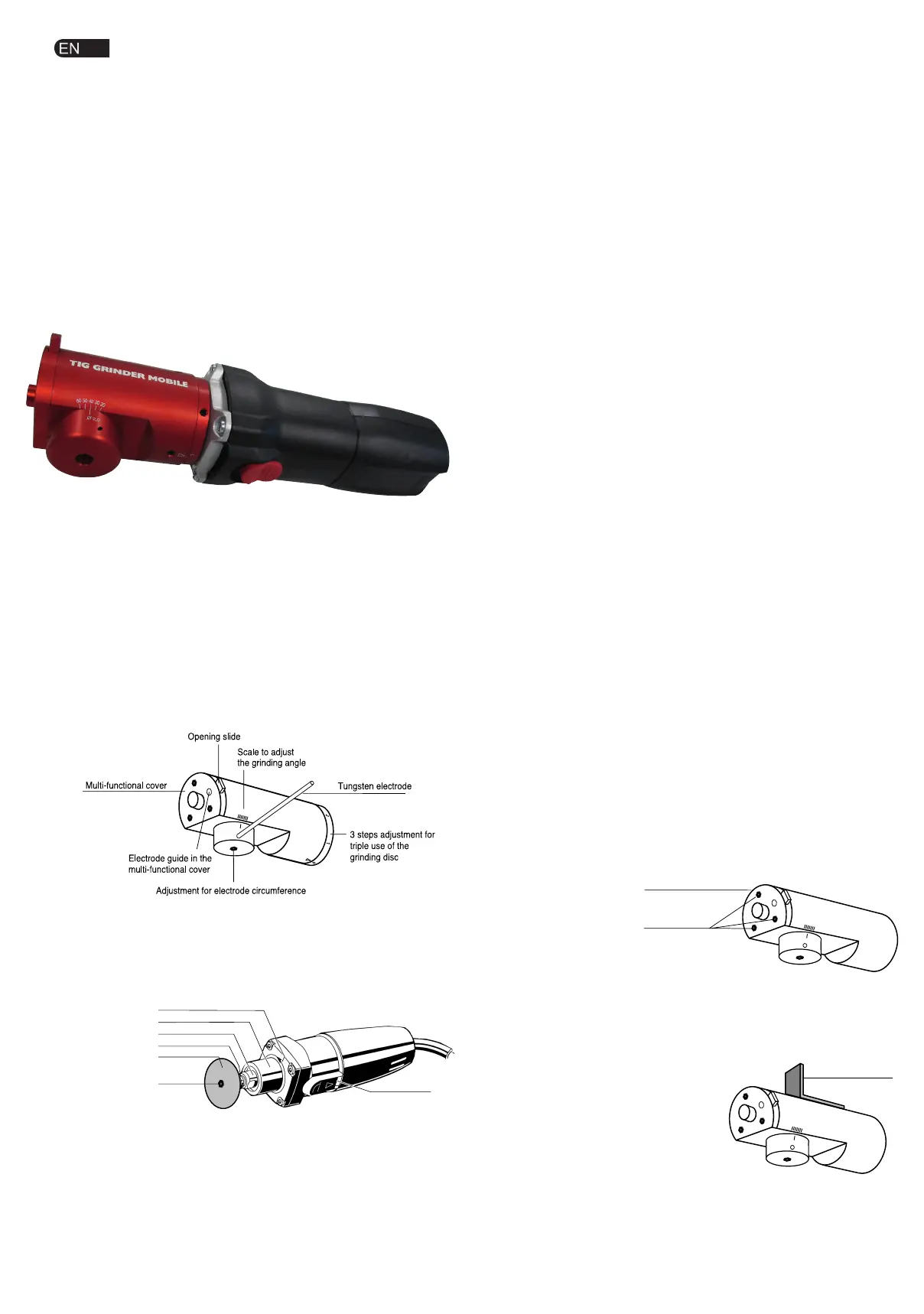

BRIEF DESCRIPTION
1. Grinding Head :
2. Motor unit :
BRIEF DESCRIPTION
3. Power On/Off :
Power off: Push the on/off switch
back. The switch will automatically
return in the 0 position.
Power on : Push the on/off switch
forward. Press the front of the switch
to lock it in position.
Electrical Connection :
Connect only to single-phase alternating current and only to the voltage stated on
thespecicationlabel.TheFRONIUSTIGGRINDERMOBILEisinsulatedaccor-
dingtoDIN57740/VDE0740(EEC20)andcanbeconnectedtoungrounded
electricalsockets.RadiointerferencecomplieswithEuropeanNormEN55014.
4. Vacuum Removal of Dust :
● Loosenandthencompletelyremovethethreehexagonalcountersunk
  screwswitha4mmhexagonalkey
● Remove the cover
● Use the supplied
rotating socket and
connect to the vacuum
system.
We recommend this procedure as a safety measure to minimise contact with the
tungsten dust that results from the grinding process.
5. Angle Iron :
● The angle iron must be mounted
so that the machine
- can be fastened in a vice
- can be fastened by means
of a screw clamp
Angel Iron
6. Optional Grinding Head :
● Asecondhead(colouredred)isavailablefortheFRONIUSTIGGRINDER
  MOBILEforelectrodeswithdiametersof1.0/4.0/4.8/6.0millimetres.
TECHNICAL DATA
  TIGGRINDERMOBILE
- 2 -
Operating Instructions
TUNGSTEN ELECTRODE GRINDER
22127000 504 00.....
TIG GRINDER MOBILE
