Front Runner TOYOTA 4RUNNER - Fit and Secure; Assemble Ladder Profiles and Top Bracket; Attach Bottom Mounts and Ladder Rungs; Positioning and Marking for Hatch Mount

100mm
LATF002_REV_A01
© 2022 FRONT RUNNER VEHICLE OUTFITTERS
3

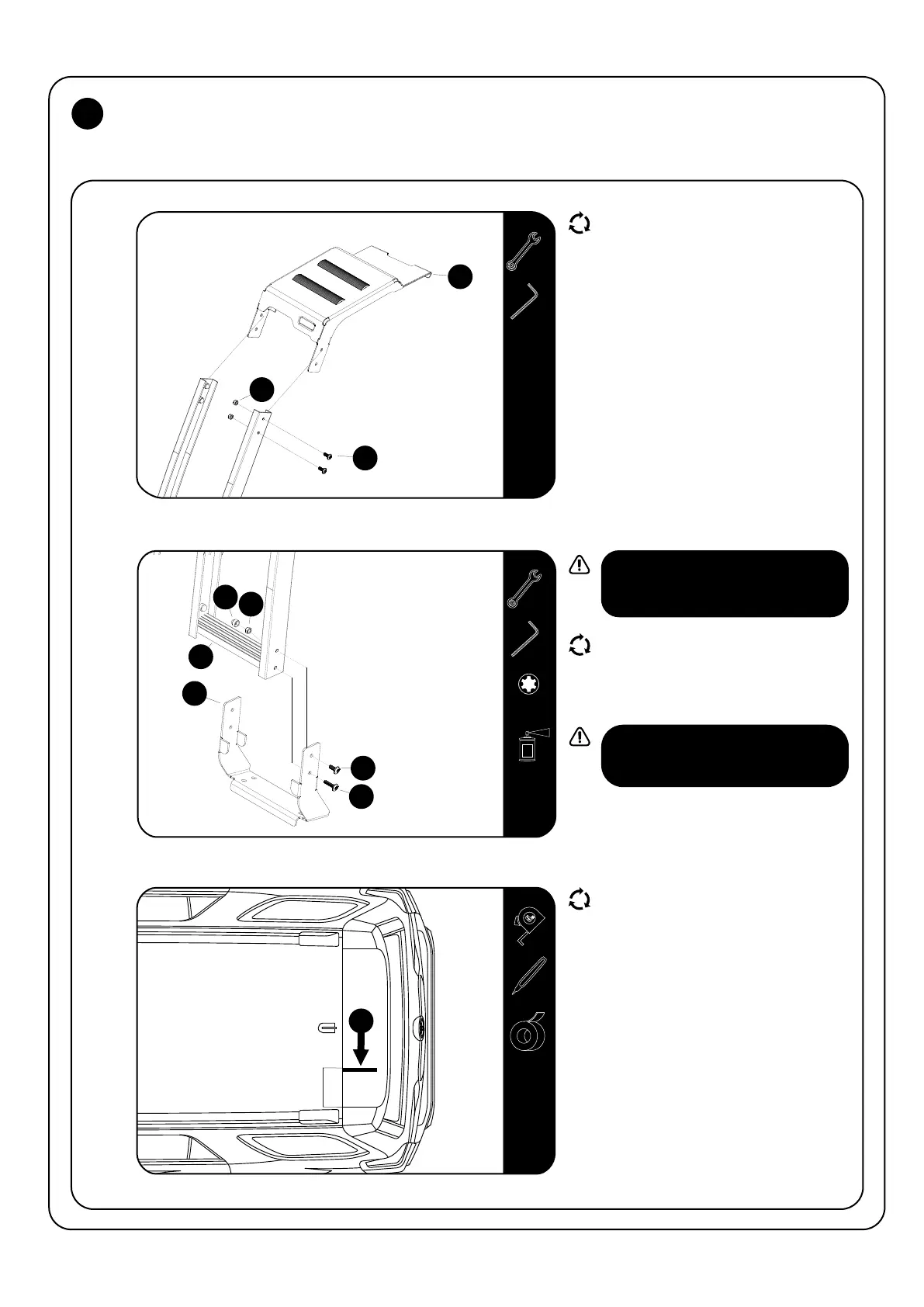

FIT AND SECURE
2
2.1
2.2
2.3
Loosly assemble both Ladder Side Profiles
(Item 2) to the Ladder Top Step Bracket
(Item 1) using the Top Mount Brackets, M6
x 16 Flange Button Head Bolts and M6 Nyloc
Nuts (Items 8 & 14).
Secure the Bottom Mount Bracket and
Ladder Rungs (Item 3 & 6) to the Ladder
Side Profiles (Item 2) using M6 x 25 Thread
Forming Screws, M6 x 16 Flange Button
Head Bolts and M6 Nyloc Nuts (Items 7, 8 &
14). Fully Tighten all Fasteners.
Place M6 Nut Caps (Item 15) over all Nyloc
Nuts.
Measuree 100mm from the inside edge of
the spoiler trim, along the hatch edge and
mark with masking tape (A) as shown.
A
Apply a little Anti Seize / oil on Thread
Forming Screws before inserting. Note
these are thread forming screws.
Tightening Torque 8-10Nm /
5.9 ft lb - 7.38 ft lb. Take care when
using a cordless driver.
10mm
4mm
10mm
4mm
Torx
T30
7
8
8
14
1
3
6
14
15
Anti-
Seize
