Make sure shields and guards are properly
installed and in good condition. Replace if dam-
aged.
Blade Installation
Your dealer can supply genuine replacement
blades. Substitute blades may not meet original
equipment specifications and may be dangerous.
Inspect blades before each use to determine that they
are mounted tightly and are in good condition. Replace
any blade that is bent, excessively nicked, worn, or has
any other damage. Small nicks can be ground out
when sharpening.
1. Place cap screws (3) through outer holes in blade
and spindle shaft.
2. Make sure blade cutting edge is positioned to lead
in a clockwise rotation, as viewed from top of
mower.
3. Place locknuts (4) on screws and torque to 84
lbs/ft. (114 N-m).
1. Spindle assembly
2. Blade
3. Screw, HHCS 1/2 NC x 1-1/2 GR5
4. Nut, flange lock 1/2 NC

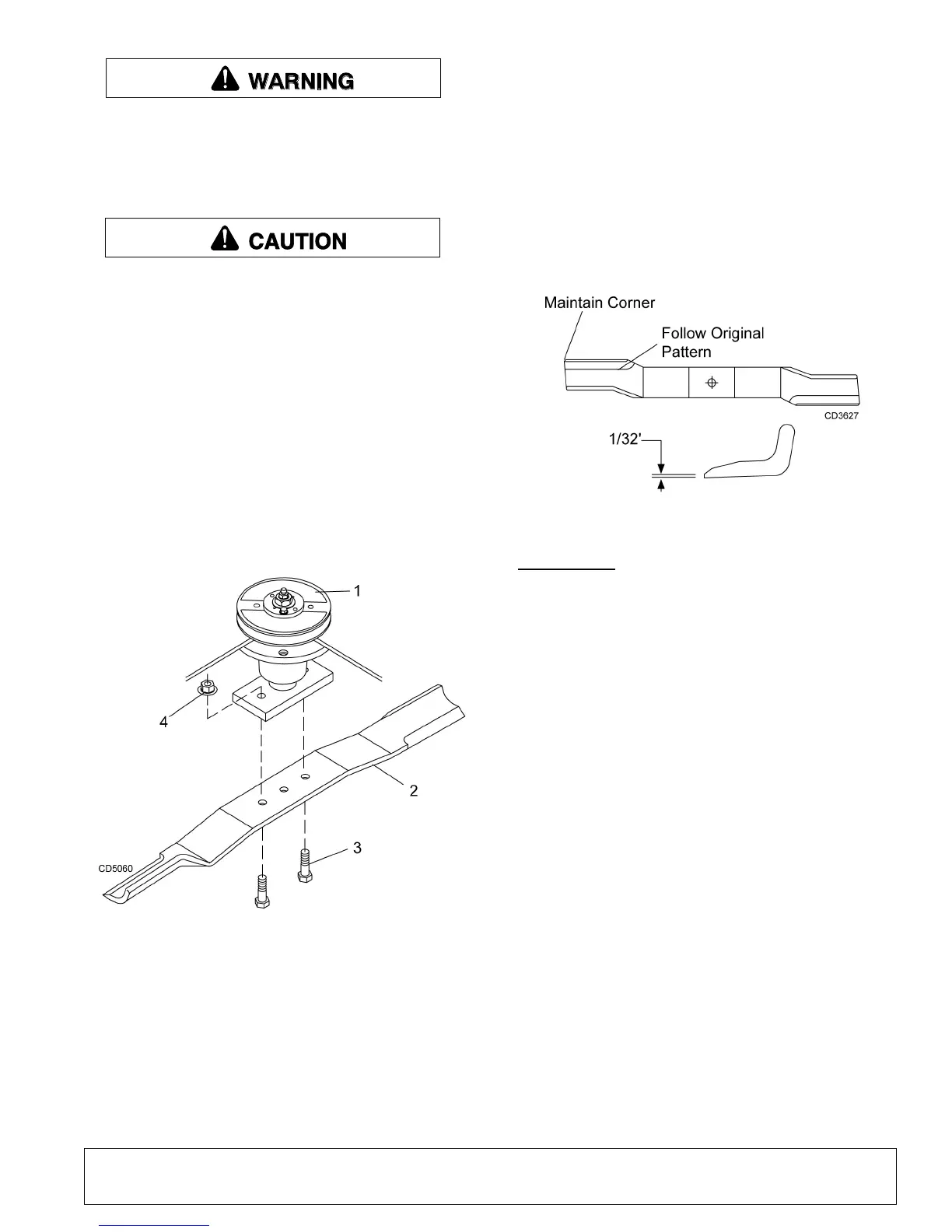

Figure 12. Blade Assembly
Blade Sharpening
NOTICE
When sharpening blades, be sure to balance
them. Unbalanced blades will cause excessive
vibration which can damage blade spindle bear-
ings. Vibration may also cause structural cracks in
mower components.
1. Remove blades.
2. Always sharpen both ends at the same time to
maintain balance.
3. Follow original sharpening pattern.
4. Do not sharpen blade to a razor edge. Leave from
1/32" to 1/16" (0.8 - 2 mm) blunt edge.
5. Do not sharpen back side.
Figure 13. Blade Sharpening
CLEANING
After Each Use
● Remove large debris such as clumps of dirt, grass,
crop residue, etc. from machine.
● Inspect machine and replace worn or damaged
parts.
● Replace any safety decals that are missing or not
readable.
Periodically or Before Extended Storage
● Clean large debris such as clumps of dirt, grass,
crop residue, etc. from machine.
● Remove the remainder using a low-pressure water
spray.
1. Be careful when spraying near scratched or torn
safety decals or near edges of decals as water
spray can peel decal off surface.
2. Be careful when spraying near chipped or
scratched paint as water spray can lift paint.
3. If a pressure washer is used, follow the advice
of the pressure washer manufacturer.
● Inspect machine and replace worn or damaged
parts.
● Sand down scratches and the edges of areas of
missing paint and coat with spray paint of matching
color (purchase from your dealer).
● Replace any safety decals that are missing or not
readable (supplied free by your dealer). See Safety
Decals section for location drawing.
