Frontier FM1012 User Manual

46 Parts
5WPMAN0183 (Rev. 7/9/2008)

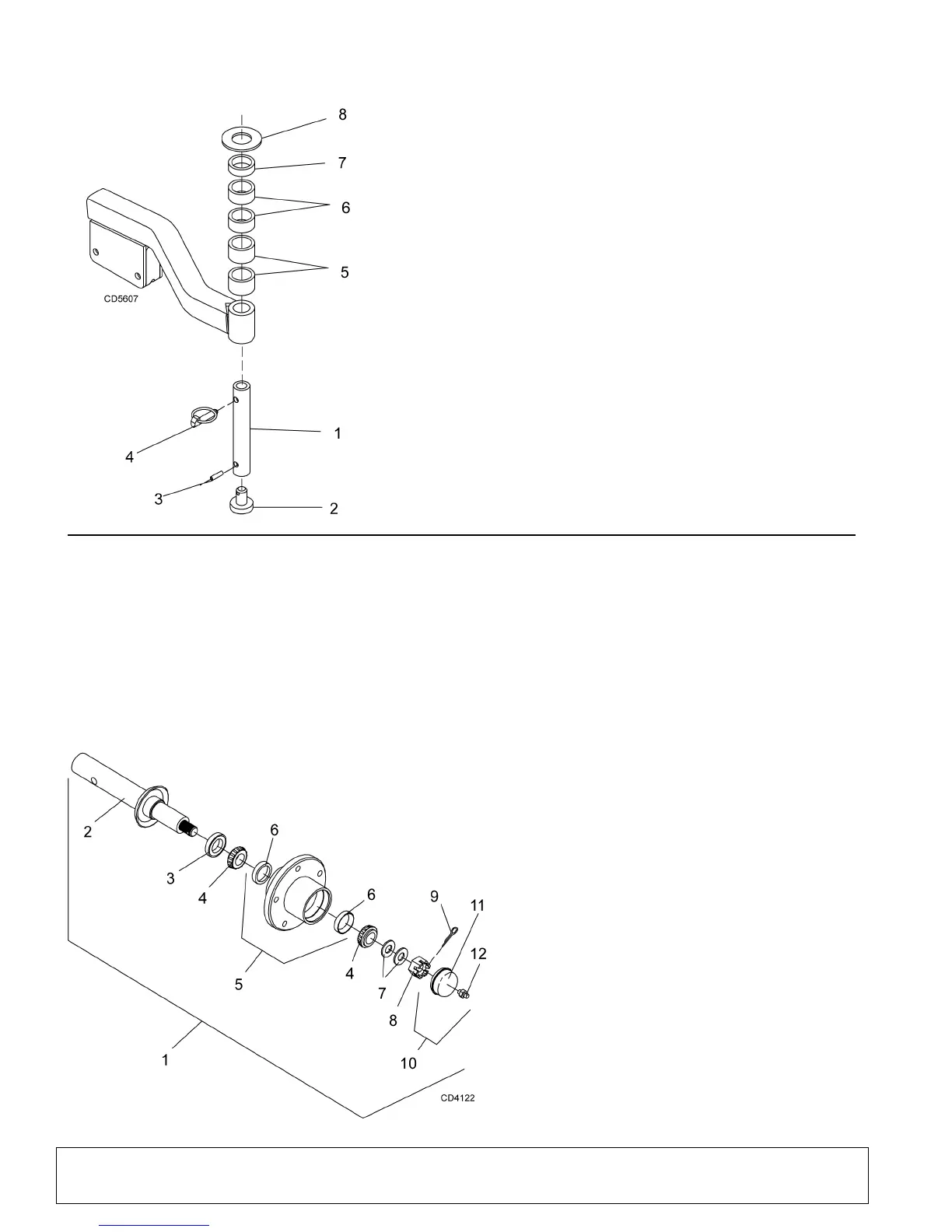

HEIGHT ADJUSTMENT POST
REF PART QTY DESCRIPTION
1 5WP58998 1 Sleeve, Drld .81 x 1.25 x 8.00
2 5WP58999 1 Wear pad
3 * 1 Pin, Spirol .25 x 1.00
4 5WP35124 1 Pin, Klik 7/16 x 2
5 5WP52855 2 Sleeve, 1.28 x 1.66 x 1.00
6 5WP52854 2 Sleeve, 1.28 x 1.66 x .75
7 5WP52853 1 Sleeve, 1.28 x 1.66 x .50
8 * 1 Washer, Flat 1-1/4 standard
* Standard Hardware, Obtain Locally
HUB & AXLE ASSEMBLY
REF PART QTY DESCRIPTION
1 5WP1001020 1 Wheel hub & axle assembly
2 5WP1001021 1 Axle shaft
3 5WP314 1 Seal, 1.50 x 2.44 x .31
4 5WP2303 2 Bearing, Cone
5 5WP38437 1 Wheel hub, Housing w/cups
6 5WP2305 2 Bearing, Cup
7 * 2 Washer, Flat 3/4 standard
8 5WP5849 1 Nut, Slotted hex 3/4 NF
9 * 1 Pin, Cotter 3/16 x 1
10 5WP14133 1 Hub cap, Assembly w/fitting
11 5WP531 1 Hub cap
12 * 1 Grease fitting, 1/4 Tapered thread
* Standard Hardware, Obtain Locally
