Frontier FM1012 User Manual

58 Parts
5WPMAN0183 (Rev. 7/9/2008)

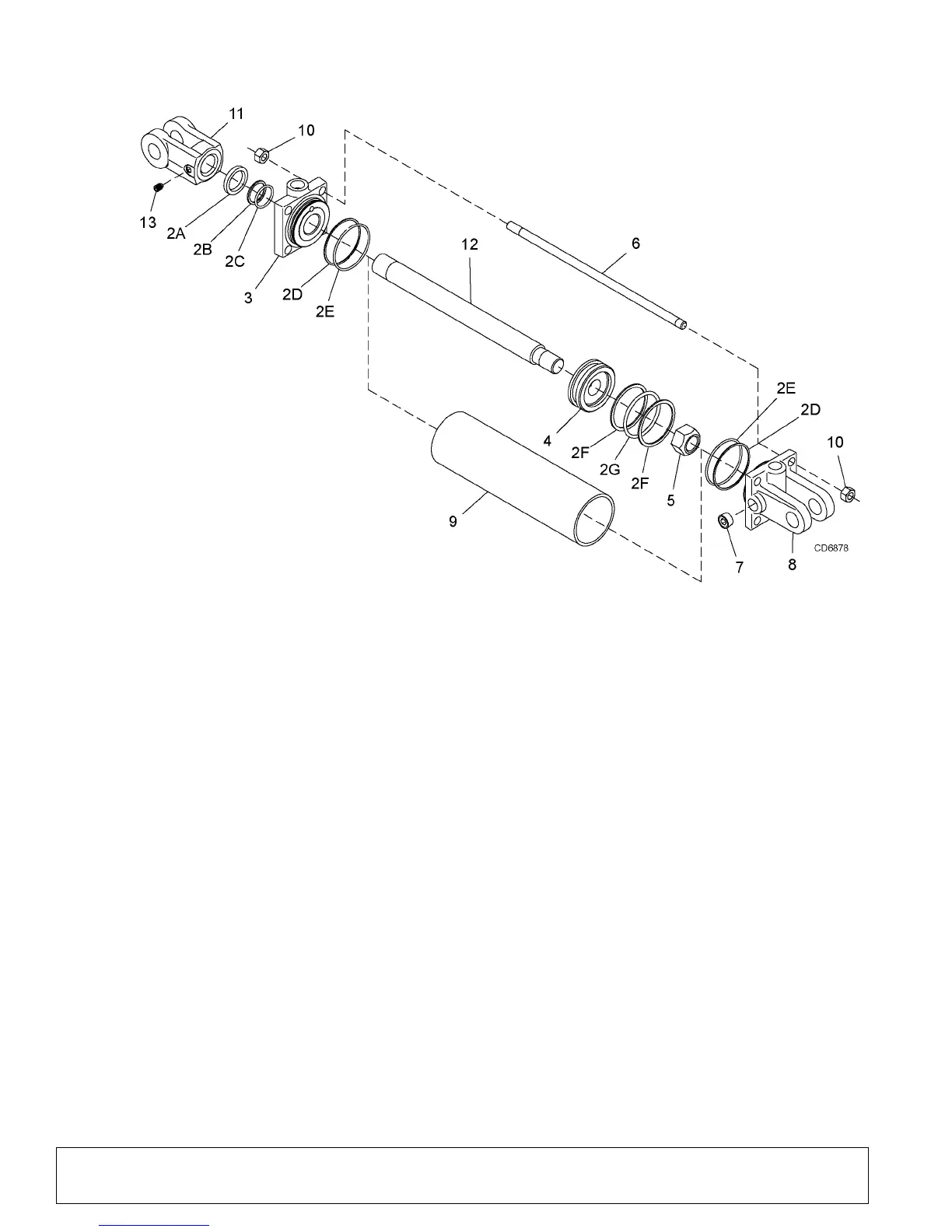

HYDRAULIC CYLINDERS
Note: The center deck uses a 3 x 8 cylinder.
The wing decks use 3 x 10 cylinders. Verify
cylinder size before ordering replacement parts.
3 x 8 3 x 10
REF PART PART QTY DESCRIPTION
1 5WP29547 5WP1019460 Complete cylinder
2 5WP19810 5WP19810 1 Seal repair kit (includes items 2A - 2G
2A † † 1 Wiper seal
2B † † 1 Rod seal
2C † † 1 Rod O-ring
2D † † 2 Cap seal
2E † † 2 Cap O-ring
2F † † 2 Piston seal
2G † † 1 Piston O-ring
3 N/S N/S 1 Cylinder housing - rod end
4N/S N/S1Piston
5N/S N/S1Jam nut
6 N/S N/S 4 Cylinder tie rod
7 * * 3 1/2 Pipe plug
8 N/S N/S 1 Cylinder housing - butt end
9 N/S N/S 2 Cylinder barrel
10 N/S N/S 8 Tie rod nut
11 N/S N/S 1 Cylinder clevis
12 N/S N/S 1 Cylinder rod
13 * * 1 Set screw 3/8 x 3/4 dog point
† Included in seal kit
* Standard hardware, obtain locally
N/S Not serviced
