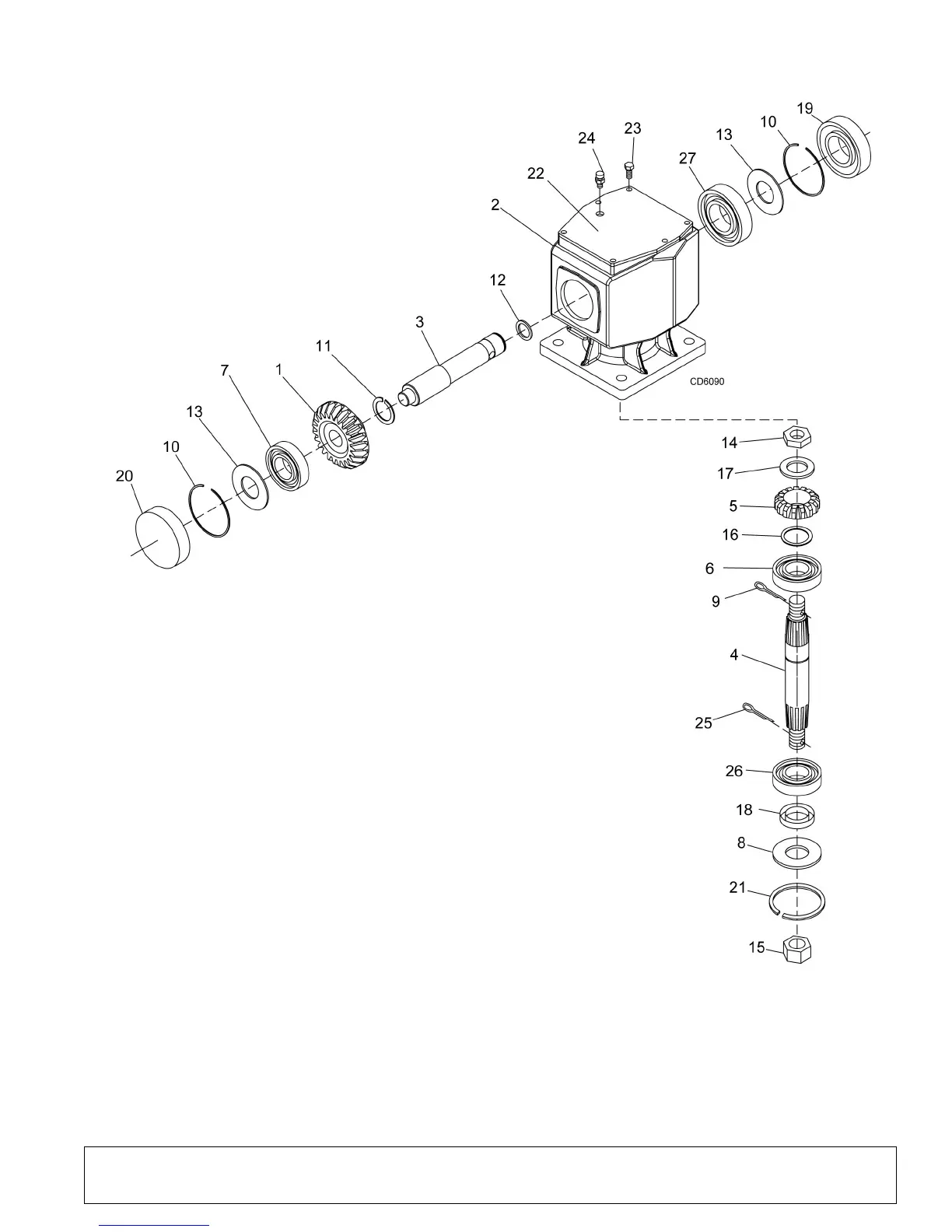

REF PART QTY DESCRIPTION
A 5WP1002499 1 Gearbox asy, complete
1 5WP57458 1 Gear crown Z25 M5.3
2 NS 1 Gearbox housing
3 5WP1005320 1 Shaft, Input 1-3/8 -6
4 5WP1005321 1 Shaft, Output 1-1/4
5 5WP57491 1 Pinion gear Z13 M5.3
6 5WP57476 1 Bearing
7 5WP57462 1 Bearing
8 5WP20888 1 Washer, Protective flat
9 * 1 Pin, Cotter 4 x 50
10 5WP57466 2 Snap ring
11 5WP20895 1 Snap ring
12 5WP57373 1 Spacer 35.5 x 48 x 2.5
13 5WP57328 2 Kit, Shim 60.3 x 71.6
14 5WP57468 1 Nut, Castle
15 5WP51946 1 Nut, Castle M24 x 2
16 5WP57328 1 Kit, Shim 30.3 x 44
17 5WP57473 1 Washer, Flat
18 5WP20900 1 Seal, Oil 40 x 80 x 12
19 5WP57463 1 Seal, Oil 35 x 72 x 10
20 5WP57374 1 Cap
21 5WP20897 1 Snap ring
REF PART QTY DESCRIPTION
22 5WP1005322 1 Cover, Top
23 * 6 Bolt 8 mm x 14 mm
24 5WP57076 1 Plug, Breather level
25 * 1 Pin, Cotter 5 x 50
26 5WP57478 1 Bearing
27 5WP20890 1 Bearing, Ball
NS Not Serviced
* Standard Hardware - Obtain Locally
