54 Parts
5WPMAN0183 (Rev. 7/9/2008)

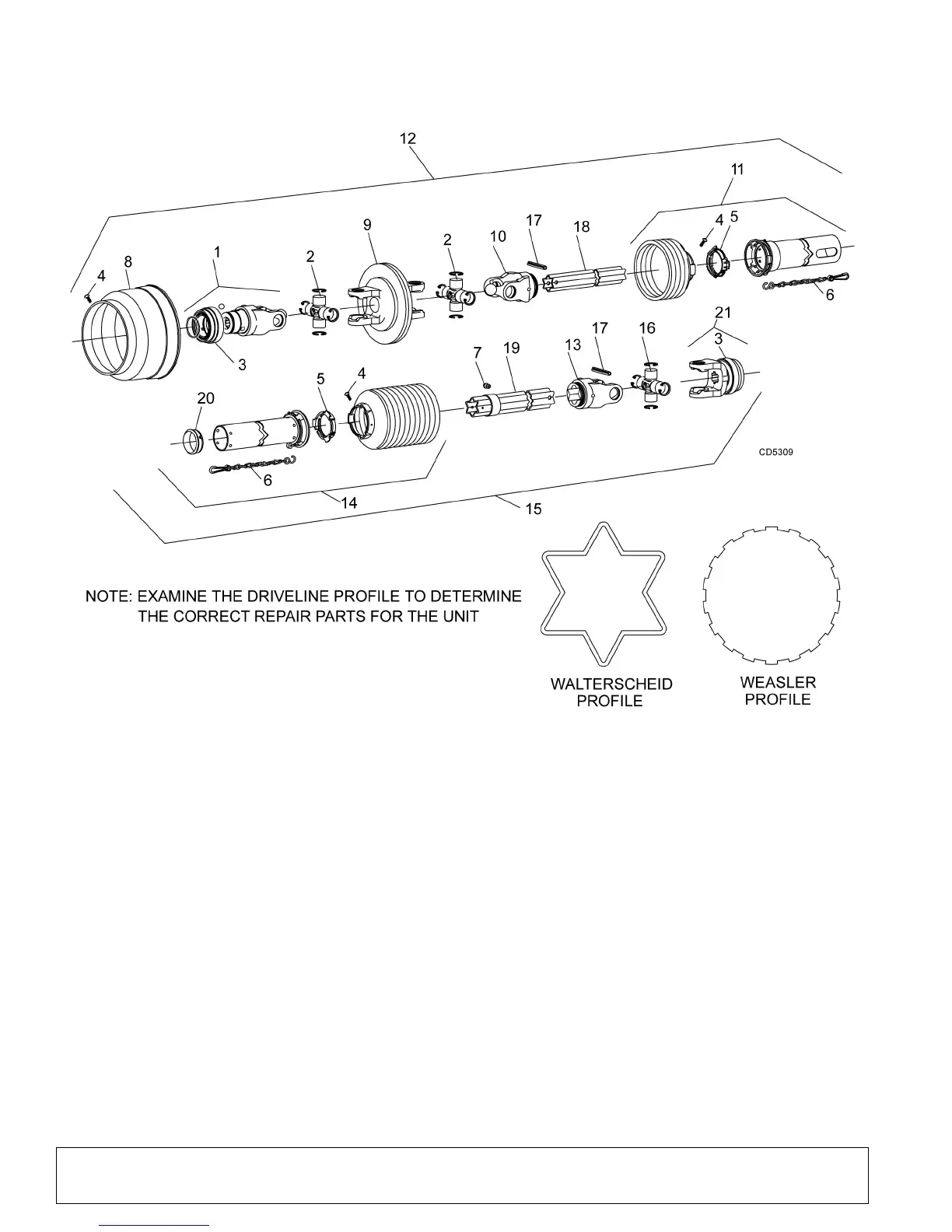

CV DRIVE ASSEMBLY
(WALTERSCHEID PROFILE)
REF PART QTY DESCRIPTION
5WP44625 Drive, Walterscheid complete CV
2480, 35.8 x 48.4
1 5WP44671 1 Yoke, 1-3/8 - 6 Spline QD
2 5WP44674 1 U-Joint repair kit 2480
3 5WP38394 1 Slide lock collar repair kit
4 5WP40778 2 Screw, Guard retainer
5 5WP40766 2 Bearing ring, Guard
6 5WP40777 1 Chain, Guard anti-rotation
7 5WP40779 1 Grease fitting, Drive line
8 5WP44699 1 Shield, CV Cone & bearing
9 5WP44672 1 CV Body
10 5WP44673 1 Yoke, Inner profile
REF PART QTY DESCRIPTION
11 5WP44688 1 Guard, Outer half
12 5WP44661 1 Drive, Inner half complete
13 5WP44677 1 Yoke, Outer profile
14 5WP44689 1 Guard, Inner half
15 5WP44662 1 Drive, Outer half complete
16 5WP38352 1 U-Joint repair kit 2400
17 5WP40764 2 Pin, Spring 10mm x 80mm
18 5WP44675 1 Drive tube, Inner profile
19 5WP44676 1 Drive tube, Outer profile
20 5WP40767 1 Bearing, Guard support
21 5WP38351 1 Yoke, 1-3/8 - 6 Spline QD
