Frontier FM1015 - FM1012, FM1015 & FM1017 Jackshaft Drive Assembly (Walterscheid); FM1012, FM1015 & FM1017 Jackshaft Drive Assembly (Comer)

56 Parts
5WPMAN0183 (Rev. 7/9/2008)

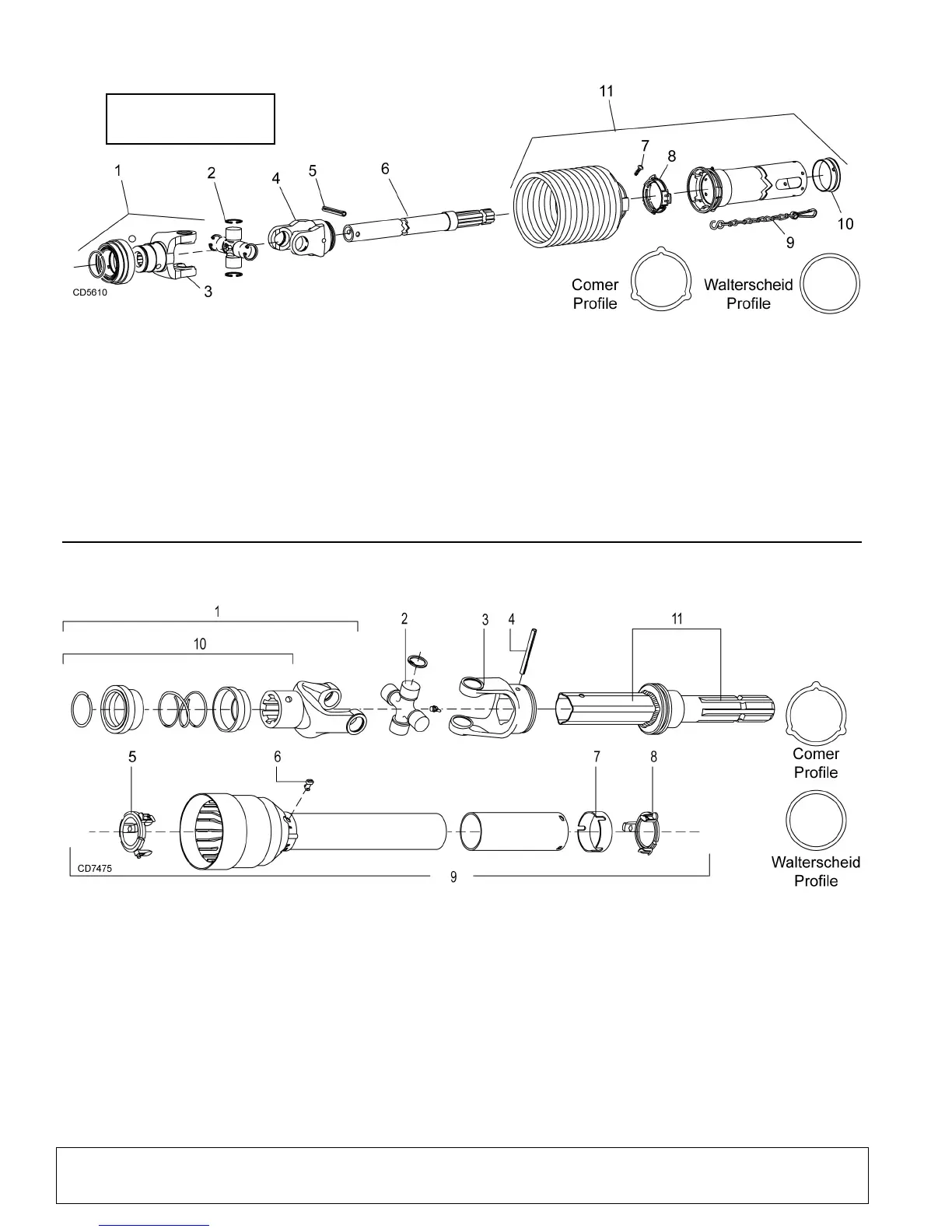

FM1012, FM1015 & FM1017 JACKSHAFT DRIVE ASSEMBLY (WALTERSCHEID)
FM1012, FM1015 & FM1017 JACKSHAFT DRIVE ASSEMBLY (COMER)
Check profile and order
from correct parts list.
REF PART QTY DESCRIPTION
A 5WP44626 Drive, Yk & shft non-tel 2400 x 26.4
1 5WP38351 1 Yoke, 1-3/8 - 6 Spline QD
2 5WP38352 1 U-Joint repair kit 2400
3 5WP38394 1 Slide lock collar repair Kit
4 5WP38353 1 Yoke, Inboard
5 5WP40764 1 Pin, Spring 10mm x 80mm
REF PART QTY DESCRIPTION
6 5WP44678 1 Shaft, Stub 1-3/8 - 6 x 26.38
7 5WP40778 1 Screw, Guard retainer
8 5WP40766 1 Bearing ring, Guard
9 5WP40777 1 Chain, Guard anti-rotation
10 5WP40767 1 Bearing, Guard support
11 5WP44690 1 Guard, Inner half
REF PART QTY DESCRIPTION
A 5WP1011759 Complete jackshaft drive asy
1 5WP1028775 1 Complete collar yoke
2 5WP36990 1 U-Joint repair kit
3 5WP1011756 1 Yoke, outer
4 5WP1001330 1 Flexible pin
5 5WP1028776 1 Outer bearing ring
REF PART QTY DESCRIPTION
6 5WP30922 6 Retainer, shield
7 5WP1011757 1 Centering ring
8 5WP1011755 1 Inner bearing ring
9 5WP1011754 1 Shield, complete (includes 5, 6, 7
& 8)
10 5WP1001340 1 Lock collar repair kit
11 NSS 1 Jackshaft
NSS Not Serviced Separately
