Frontier FM1017 - WING FRAME ASSEMBLY

42 Parts
5WPMAN0183 (Rev. 7/9/2008)
FM1012, FM1015 & FM1017 WING FRAME

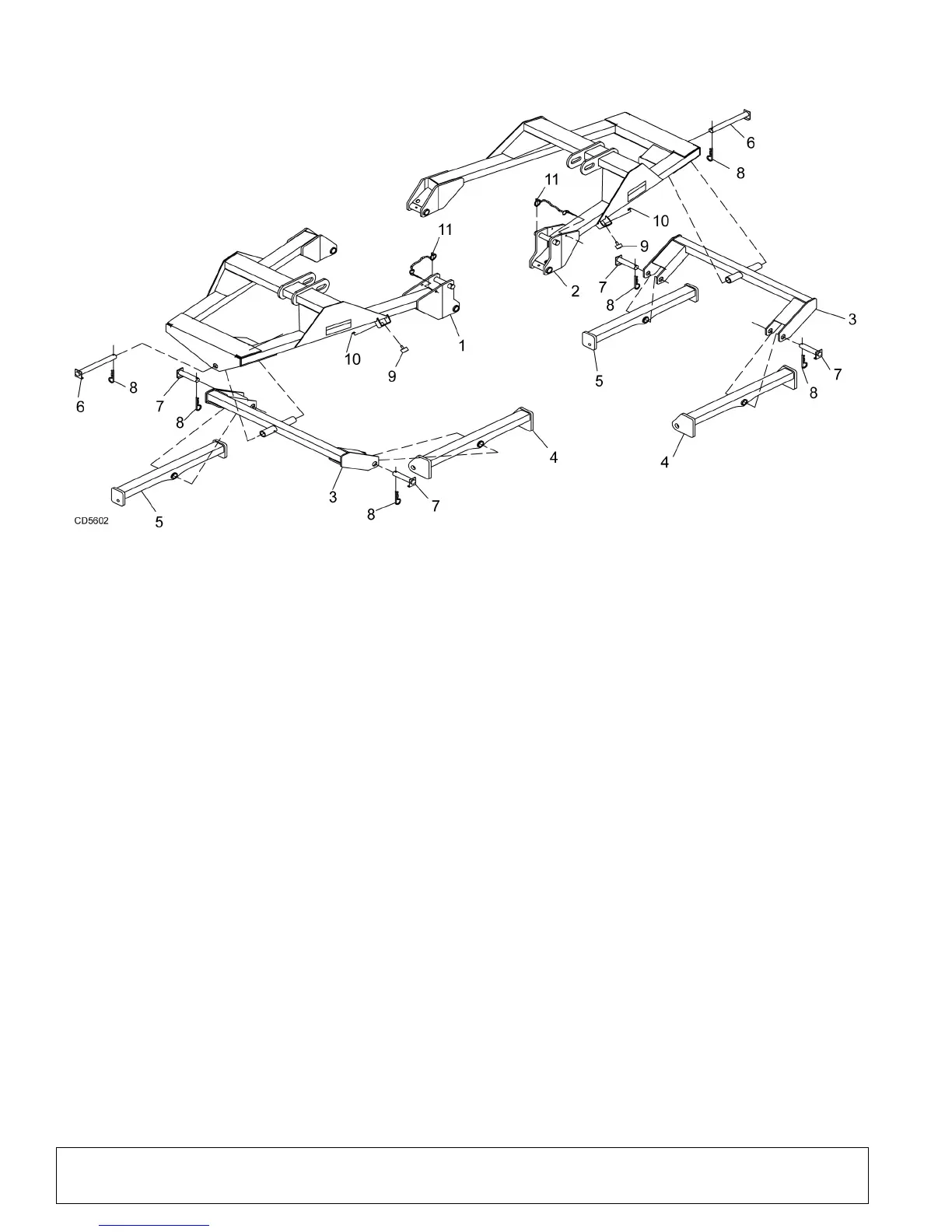

REF PART QTY DESCRIPTION
1 5WP1000610 1 Frame, Right wing (FM1012)
-or-
1 5WP1006340 1 Frame, Right wing (FM1015)
-or-
1 5WP1000614 1 Frame, Right wing (FM1017)
2 5WP1000611 1 Frame, Left wing (FM1012)
-or-
2 5WP1006341 1 Frame, Left wing (FM1015)
-or-
2 5WP1000615 1 Frame, Left wing (FM1017)
3 5WP40907 2 Link, Wing deck lift (FM1012)
-or-
3 5WP40881 2 Link, Wing deck lift (FM1015,
FM1017)
REF PART QTY DESCRIPTION
4 5WP40895 2 Trunnion, Front deck (FM1012,
FM1015)
-or-
4 5WP40887 2 Trunnion, Front deck (FM1017)
5 5WP40896 2 Trunnion, Rear deck (FM1012,
FM1015)
-or-
5 5WP40888 2 Trunnion, Rear deck (FM1017)
6 5WP58980 2 Pin, Wing deck link
7 5WP58982 4 Pin, Deck link trunnion
8 * 6 Pin, Safety 3/16
9 5WP71444 2 Rubber bumper
10 5WP14139 2 Nut, Flanged lock 5/16 NC
11 5WP38264 2 Pin, Lynch chain & cotter asy
* Standard Hardware, Obtain Locally
