Frontier FM1017 - CASTER WHEELS

Parts 45
5WPMAN0183 (Rev. 7/9/2008)

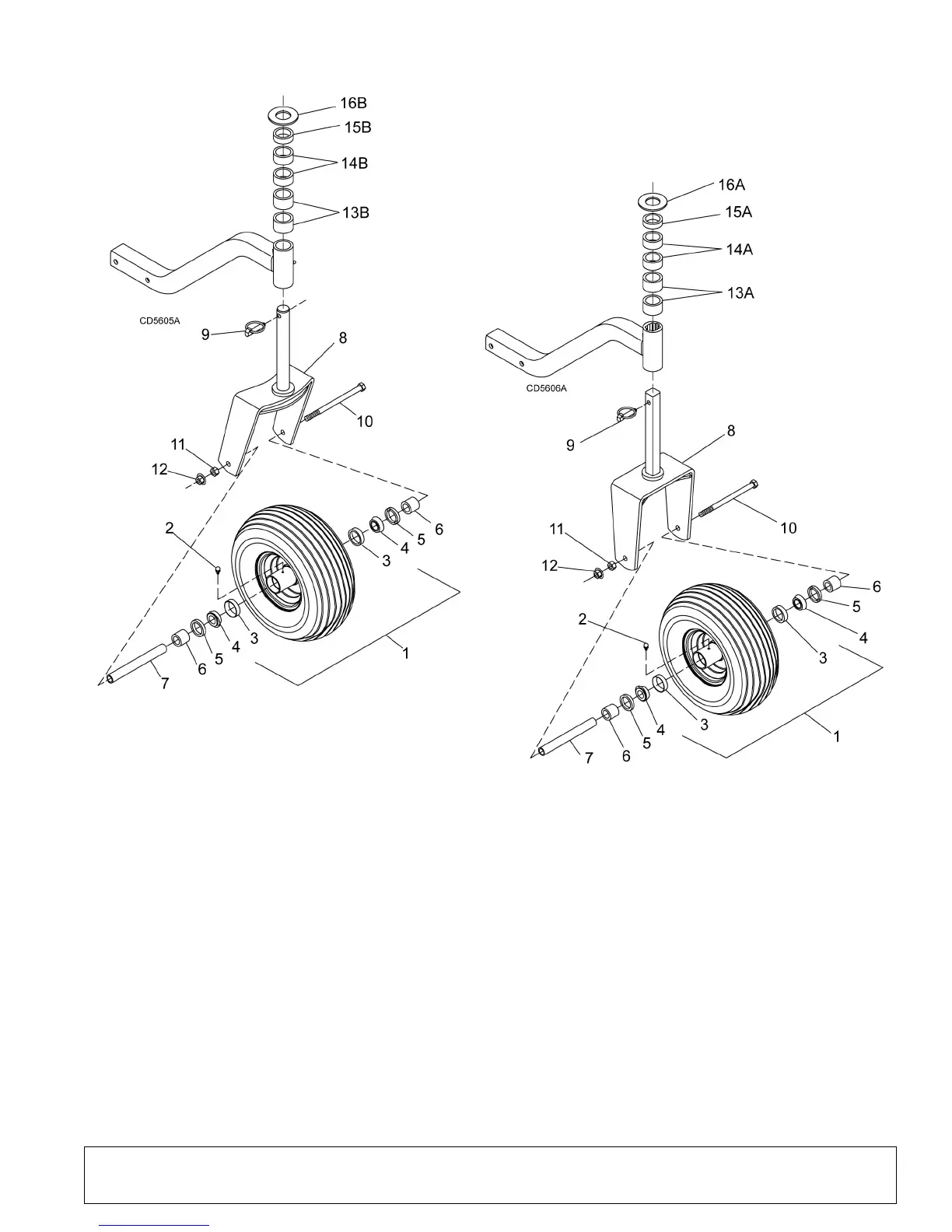

CASTER WHEELS
NON-ROTATING
ROTATING
REF PART QTY DESCRIPTION
1 5WP38267G 1 Wheel & hub 15.00 x 6.00 x 6 Gray
5WP38476G Wheel rim & hub, 6.00 x 6 w/Cups
gray
2 * 1 Grease fitting, 1/8 Pipe thread
3 5WP2306 2 Bearing, Cup
4 5WP2304 2 Bearing, Cone
5 5WP5624 2 Seal, 1.13 x 1.78 x .47
6 5WP14318 2 Sleeve, HT .75 x 1.13 x 1.25
7 5WP38111 1 Sleeve, HT .53 x .75 x 6.75
8 5WP58958 1 Caster yoke & shaft asy, Rotating
-or- -or-
8 5WP58961 1 Caster yoke & shaft asy,
Non-rotating
9 5WP35124 1 Pin, Klik 7/16 x 2
10 5WP38107 1 Screw, HHCS 1/2 NC x 9 GR5
11 * 1 Nut, Hex 1/2 NC
12 5WP11900 1 Nut, Flanged lock 1/2 NC
REF PART QTY DESCRIPTION
Non-Rotating:
13A 5WP58987 2 Sleeve, 1.50 x 1.90 x 1.00
14A 5WP58986 2 Sleeve, 1.50 x 1.90 x .75
15A 5WP58985 1 Sleeve, 1.50 x 1.90 x .50
16A 5WP6237 1 Washer, Flat 1.50 x 2.25 x 13 Ga
Rotating:
13B 5WP52855 2 Sleeve, 1.25 x 1.90 x 1.00
14B 5WP52854 2 Sleeve, 1.25 x 1.90 x .75
15B 5WP52853 1 Sleeve, 1.25 x 1.90 x .50
16B 5WP7163 1 Washer, Flat 1.25 standard
* Standard Hardware, Obtain Locally
