Frontier FM1017 - WING DECK ASSEMBLY

44 Parts
5WPMAN0183 (Rev. 7/9/2008)

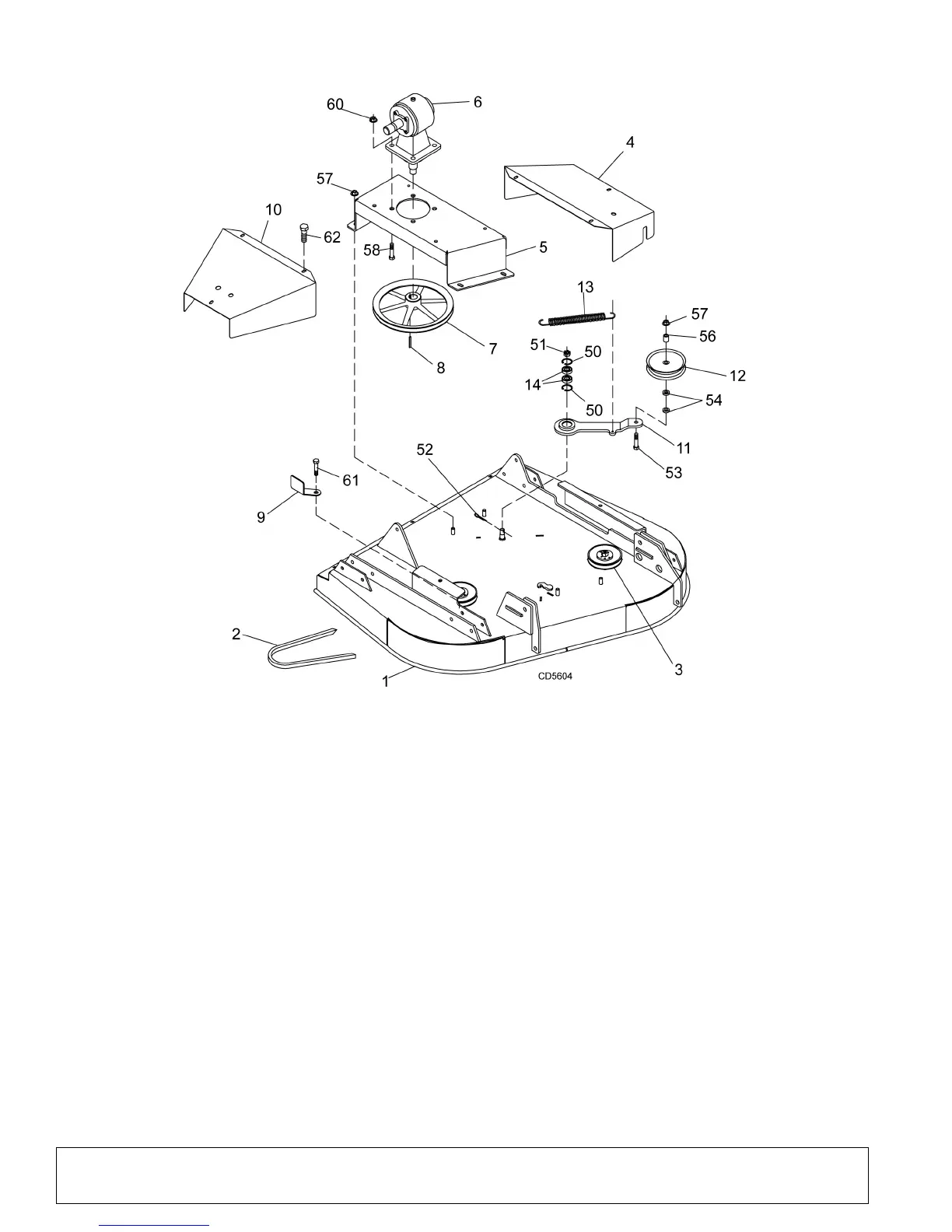

FM1012 WING DECK ASSEMBLY
REF PART QTY DESCRIPTION
1 5WP1000609 1 Deck, Weld asy 4 foot left -or-
1 5WP1000608 1 Deck, Weld asy 4 foot right (NS)
2 5WP40930 1 V-Belt, W80
3 3 CW Spindle asly (See page 48)
4 5WP58953 1 Shield, Belt left -or-
4 5WP58954 1 Shield, Belt right (NS)
5 5WP58295 1 Gearbox stand, Left -or-
5 5WP58294 1 Gearbox stand, Right (NS)
6 5WP1002499 1 Gearbox, 1:1.92 (See page 47)
7 5WP65197 1 Sheave, Offset 12.4 PD
8 5WP29792 1 Key, HT 1/4 x 1/4 x 1-1/4
9 5WP53567 1 Guide, Belt 8 Ga formed
10 5WP58952 2 Shield, Belt inner
11 5WP57939 1 Idler arm assembly
12 5WP57972 1 Idler, Flat 6.0 Dia
REF PART QTY DESCRIPTION
13 5WP67131 1 Spring, Ext .177 x 1.22 x 9.88
14 5WP35193 2 Bearing, Ball
50 5WP35141 Ring, Retaining int .062 x 1.56
51 5WP302178 Nut, Castle 5/8 NF
52 * Pin, Cotter 3/16 x 1-1/2
53 * Screw, HHCS 1/2 NC x 2-1/2 GR5
54 * Washer, Flat 1/2 standard
56 5WP52877 Sleeve, .51 x .63 x .64
57 5WP11900 Nut, Flanged lock 1/2 NC
58 5WP19024 Screw, Flngd hex head 5/8 NC x 1-3/4
60 5WP19025 Nut, Flanged lock 5/8 NC
61 5WP4358 Screw, HHCS 1/2 NF x 1-1/4 GR5
62 5WP62153 Bolt, Flngd whiz 3/8 NC x 1
NS Not Shown
* Standard Hardware, Obtain Locally
