Frontier GM1190R User Manual

Assembly 27
WPMAN0142 (Rev. 9/1/2004)

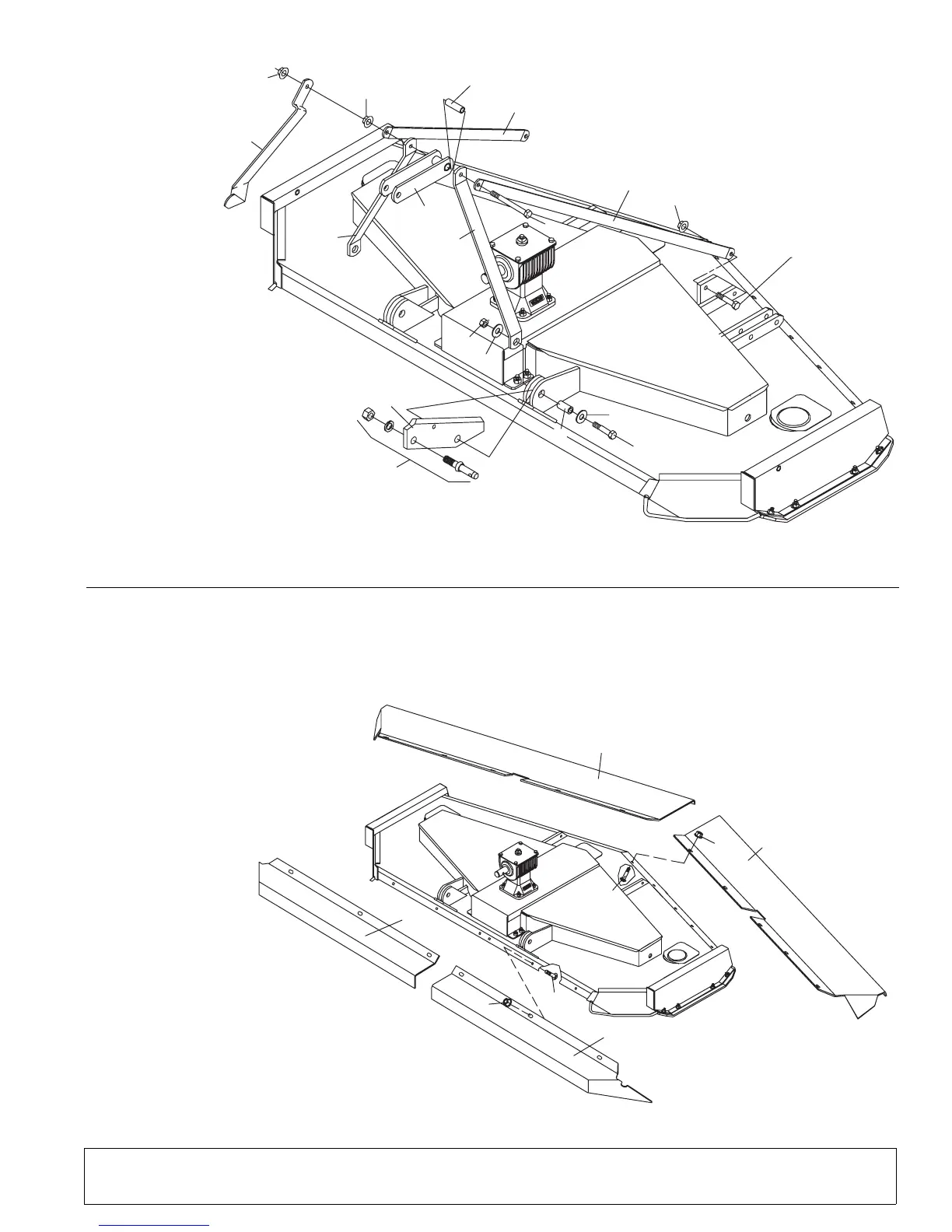

Figure 24. Hitch Installation
Figure 25. Chain Shielding Installation
CD4594A
6
14
12
11
5
5
8
10
9
12
12
1
2
4
2
7
9
3
13
1. 5/8 x 3-1/2" Bolt
2. 5/8" Flat washer
3. .64 x 1.00 x 2.09"
Sleeve
4. Hitch pin bracket
5. A-Frame bar
6. Hitch pin assembly
7. 5/8" Hex nut
8. 1/2 x 6" Bolt
9. 3-Point brace bar
10. 1/2 Schedule 40 x 2-3/4" pipe
11. Top link clevis
12. 1/2" Flanged hex locknut
14. PTO Hanger bracket
6
5
4
3
3
4
2
1
CD3953A
1. Right rear shield assembly
2. Left rear shield assembly
3. 3/8 x 1" Carriage bolt
4. 3/8" Flanged hex locknut
5. Left front shield assembly
6. Right front shield assembly
Chain Shielding Installation (Figure 25)
Chain is assembled. Attach to mower as shown.
