Frontier GM1190R User Manual

38 Parts
WPMAN0142 (Rev. 9/1/2004)
REF PART NO
NO
NO USED DESCRIPTION
- ------ 1 Chain shield bundle complete
1 WP19552 1 Shield, Plate Right Front Chain
2 WP19553 1 Shield, Plate Left Front Chain
3 WP20792 1 Shield, Plate Right Rear Chain
4 WP20793 1 Shield, Plate Left Rear Chain
5 WP4763 60 Chain, 3 Link 1/4 proof
6 WP4765 96 Chain, 4 Link 1/4 proof
REF PART NO
NO
NO USED DESCRIPTION
7 * 8 Pin, Cotter 3/16 x 1
8 WP18150 2 Pin, Headless .38 x 29.88
9 WP11761 2 Pin, Headless .38 x 48.50
10 * 16 Bolt, Carriage 3/8 NC x 1 GR5
11 WP14350 16 Nut, Flanged Lock 3/8 NC
* Obtain Locally
11
10
11
10
9
9
8
8
7
7
7
7
6
6
5
5
4
3
2
1

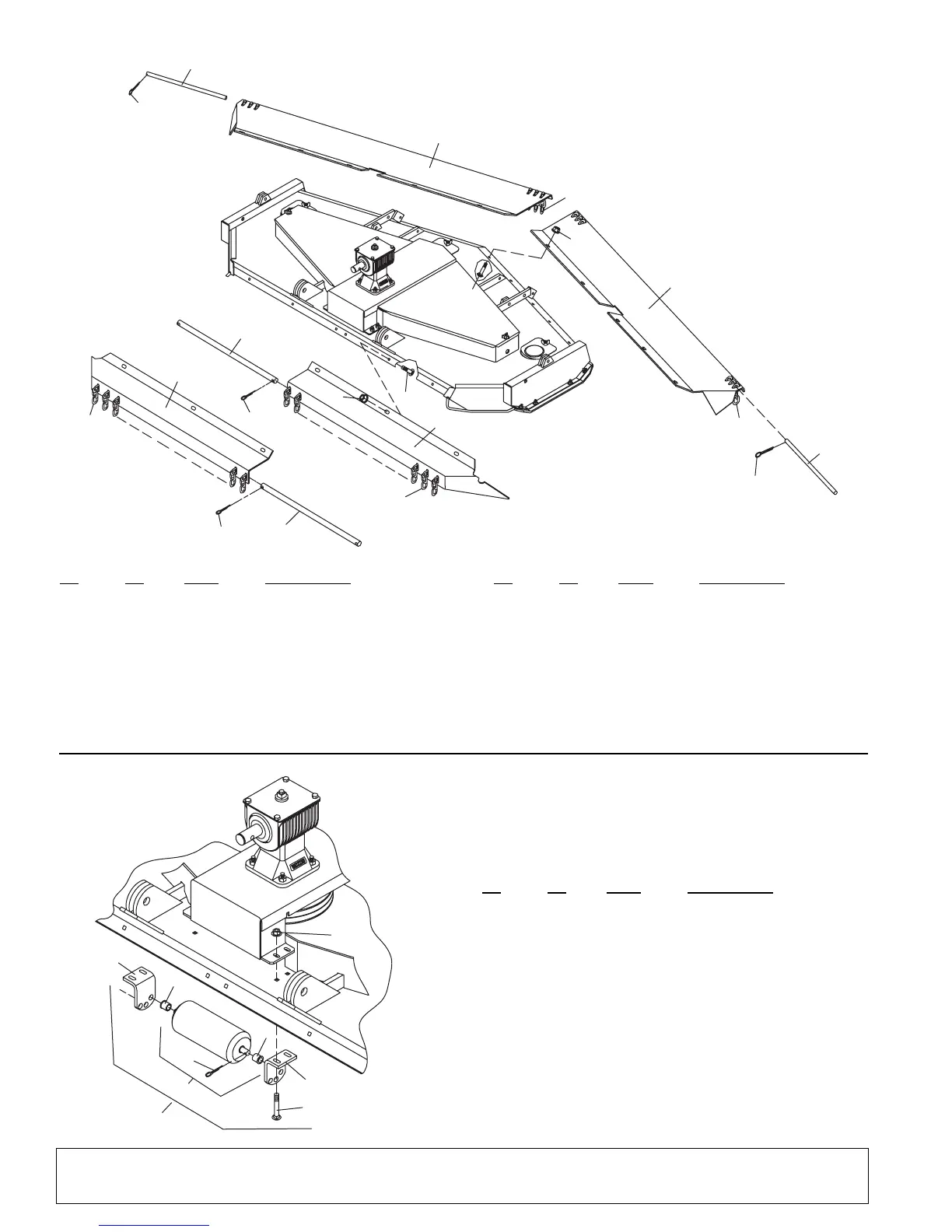

CD3957
CHAIN
SHIELDING
ASSEMBLY
8
7
3
4
6
6
5
2
1
CD3951
FRONT ROLLER ASSEMBLY (OPTIONAL)
REF PART NO
NO
NO USED DESCRIPTION
1 WP24650KT 1 Roller Kit, Front Complete
2 WP24583 1 Roller, Front w/Rod & Bearings
3 WP24587 1 Bracket, Left Front Roller
4 WP24586 1 Bracket, Right Front Roller
5 * 2 Pin, Cotter 3/16 x 1
6 WP29610 2 Bearing, Flange .63 x .88 x .88
7 * 4 Bolt, Carriage 3/8 NC x 1 GR5
8 WP14350 4 Nut, Flanged Lock 3/8 NC
