5CS2004OM (rev 00 07/2020) 33Parts Diagrams
14
10
4
11
5
12
2
10
18
11
3
10
10
11
7
8
15
16
4
1
17
8
13
14
11
9
16
10
6
6
10
19
20
21
21
20
19

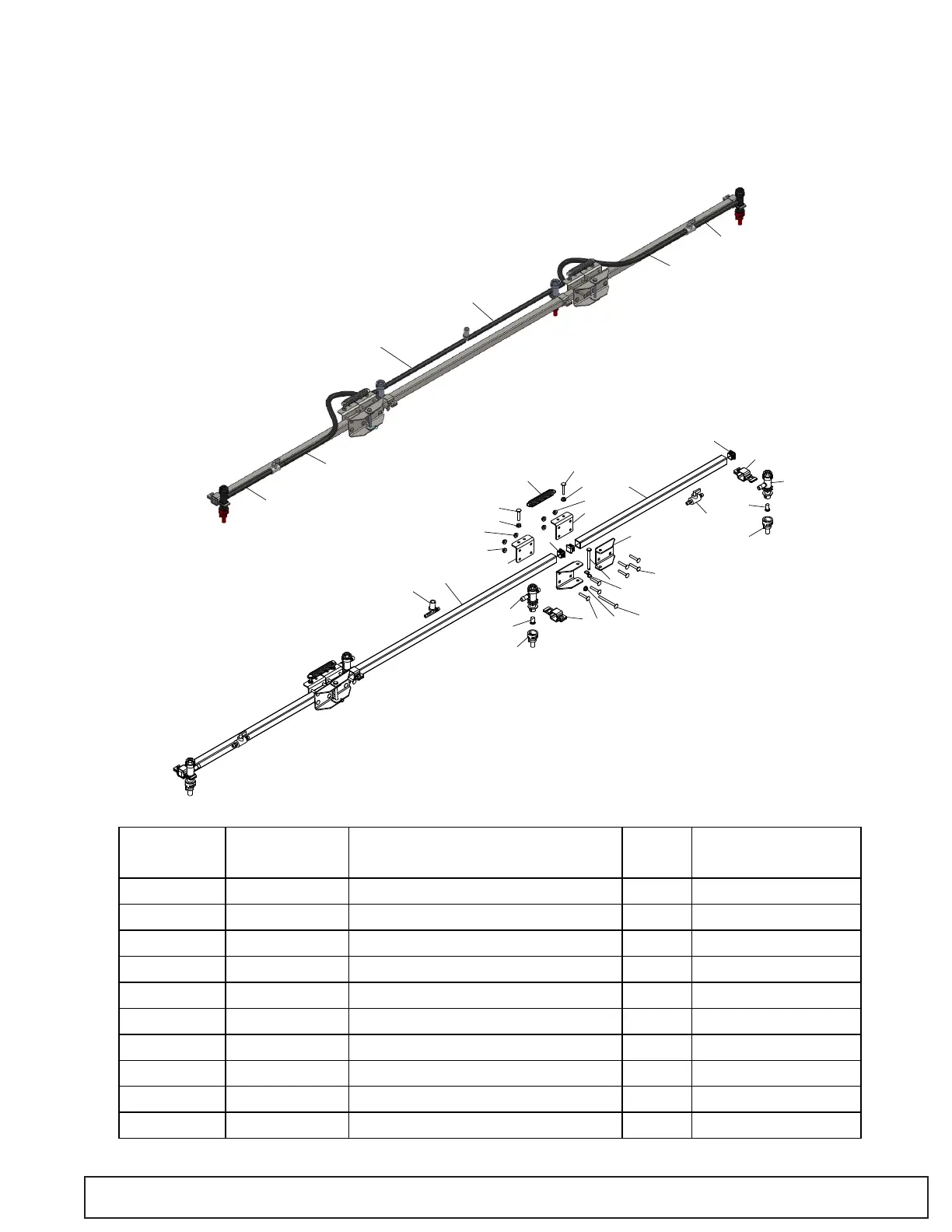

10' Folding Boom
ITEM NO.
PART
NUMBER
DESCRIPTION QTY. Note
1 5CS60084 Side Boom Tube 26” 2
2 5CS60082 Center Boom Tube 40” 1
3 5CS43849 Boom Hinge Bracket 4
4 5CS43389 Boom Hinge Backing Plate 4
5 5CS43402 5/16” x 3” Clevin Pin 2
6 5CS43401 Plastic End Cap 1” 6
7 5CS43624 Small Bowtie Clip 2
8 5CS43598 Square Tube Clamp 1” 4
9 5CS43403 Spring 3/4” x 3-3/4” x .105 2
10 N10217 1/4” Flange Nut 26
To Next Page
