5CS2006OM (rev 00 07/2020) 11

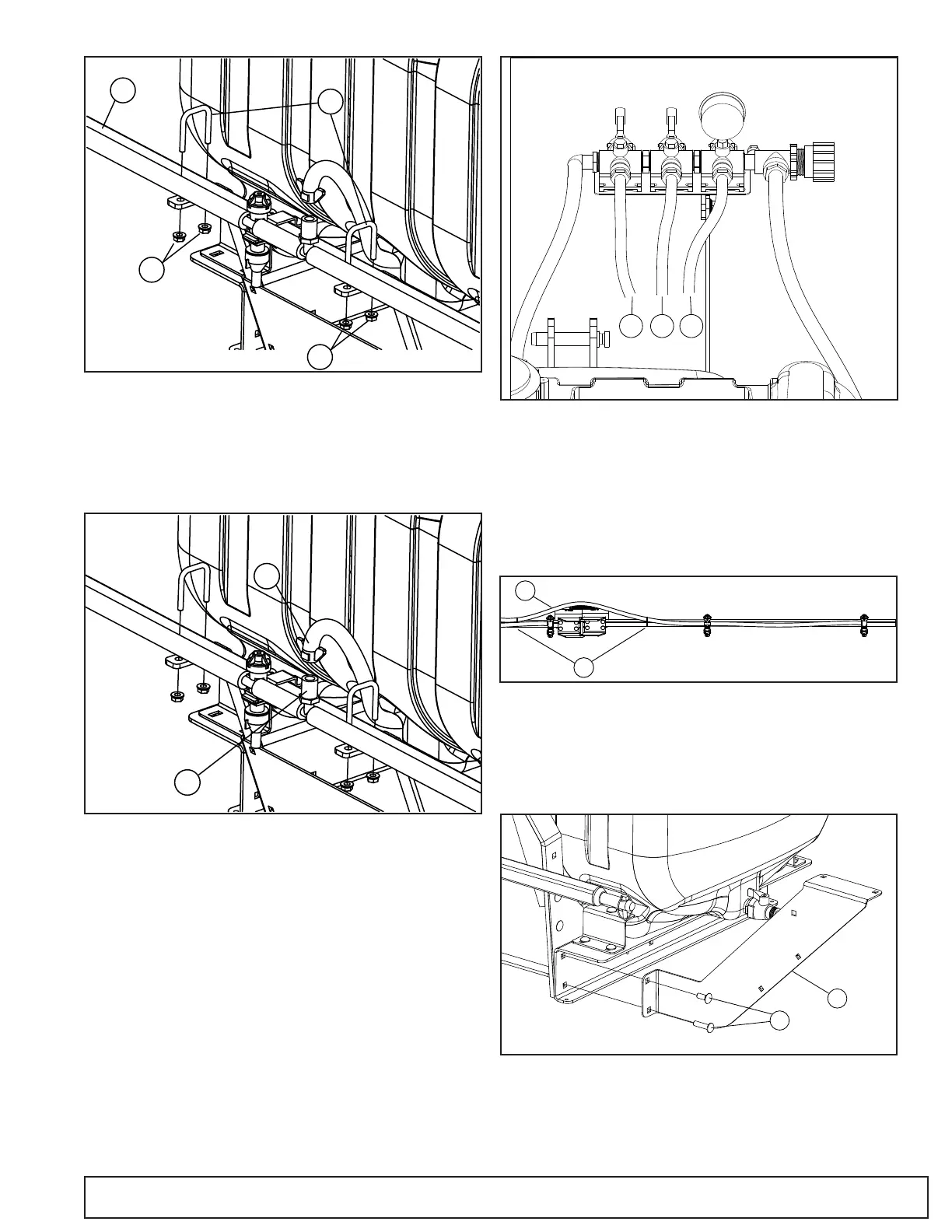

3. Connect hoses:
• For 12 ft Boom and Boomless:
• Connect and tighten the wingnut on the
hose (D) from the valve to the threaded
tting (E) in the center of the boom.
• For 18 ft Boom:
• Connect the hoses from the valves to the
appropriate sections of the boom. (F) to
the left boom, (G) to the center boom and
(H) to the right using 1/2 in. hose clamps.
4. For the two outside booms, use wire ties (I)
to secure hoses to the back of the booms
about 1 foot away from the hinge on either
side leaving all the slack (J) at the hinge. Be
sure the hose does not kink when the boom
is folded and does not interfere with spray.
(Optional) Install 100 ft Hose Reel Kit
1. Install Front Mounting Bracket (A) to left side
of sprayer frame using the existing hardware
(B).
2. Install Rear Mounting Bracket (C) to left side
of sprayer frame using the existing hardware
(D).
Assembly
A
C
C
B
D
E
F G H
I
J
B
A
To Next Page
