Frontier LS2006 - Page 12

5CS2006OM (rev 00 07/2020) 12

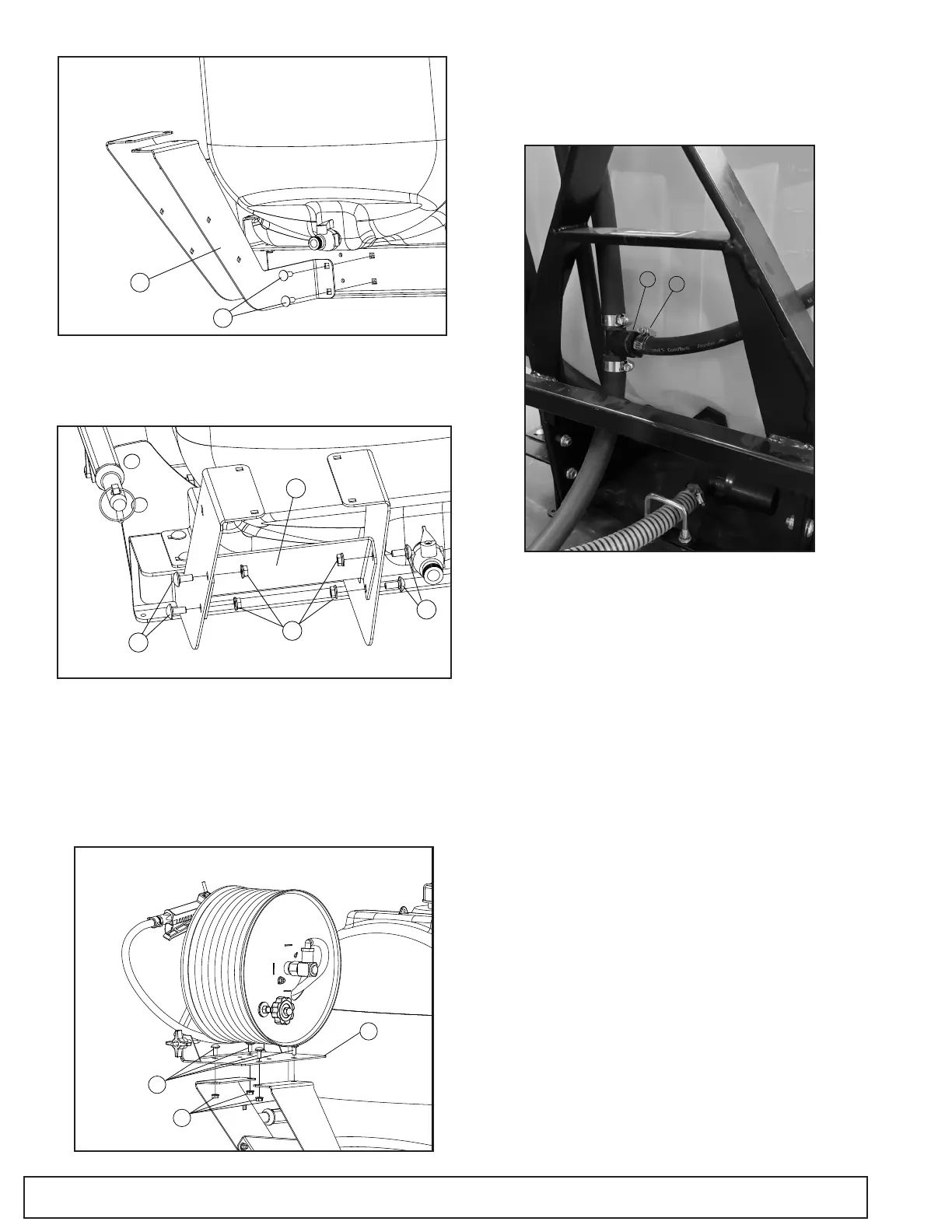

3. Loosely Install Crossmember (E) using four
5/16" x 3/4" Carriage Bolts (F) and four
5/16" Flange Nuts (G) as shown.
4. Install Hose Reel Assembly (H) on top of
Front and Rear Mounting Bracket using four
5/16" x 3/4" Carriage Bolts (J) and four 5/16"
Flange Nuts (K) as shown.
5. Torque all fasteners to recommended
torque. (See Torque Table section)
6. Attach free end of 1/2" hose from Hose Reel
to Tee Fitting (L) and secure with 1/2" screw
type hose clamp (M).
Assembly
C
D
E
F
F
G
H
J
K
L
M
