Frontier LS2006 - Page 17

5CS2006OM (rev 00 07/2020) 17
BOOMLESS CALIBRATION CHART FOR 24”
HEIGHT
PSI
Cap. 3
Nozzle
GPM
Spray
Width
“ft”
GPA
4 MPH 6 MPH 8 MPH 10 MPH
20 3.7 23.0 12.0 8.0 6.1 4.9
30 4.2 25.0 12.9 8.6 6.5 5.2
40 4.8 28.0 13.7 9.1 6.8 5.5
BOOMLESS CALIBRATION CHART FOR 36”
HEIGHT
PSI
Cap. 3
Nozzle
GPM
Spray
Width
“ft”
GPA
4 MPH 6 MPH 8 MPH 10 MPH
20 3.7 25.0 11.5 7.6 5.7 4.7
30 4.2 28.0 11.9 7.9 5.9 4.8
40 4.8 30.0 1.2 8.2 6.1 4.9
Adjusting the Sprayer Pressure
NOTE: All calibration needs to be done with
clean water.
Once correct pressure setting has been
determined, the sprayer must be adjusted to
that pressure setting. Before adjusting sprayer’s
pressure, it is important to set tractor rpm at
rate that was used to determine tractor speed.

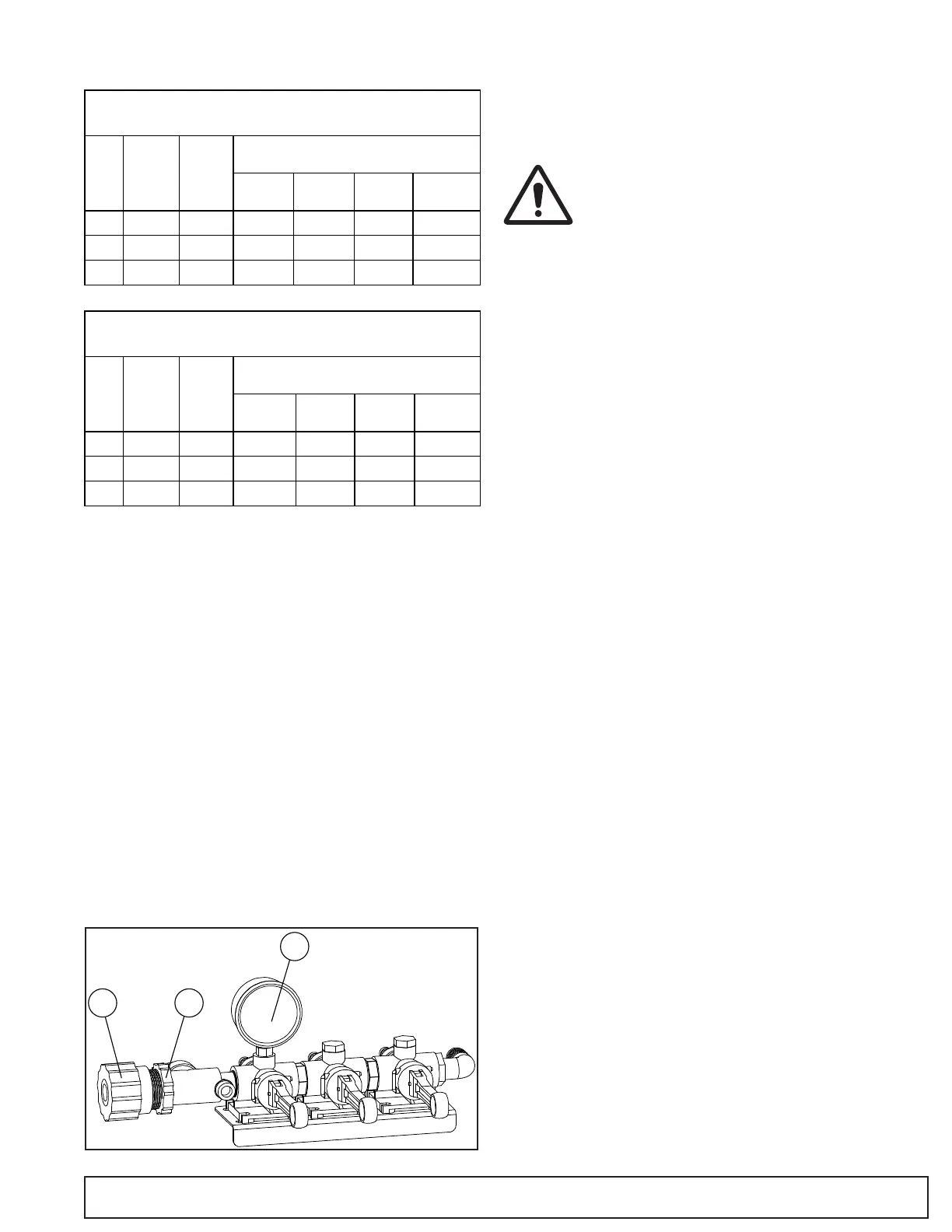

1. Loosen lock ring (A) and adjust knob (B) to
desired pressure. Pressure is displayed on
gauge (C).
2. Once desired pressure is achieved tighten
lock ring (A).
3. Sprayer is now calibrated.
Operating the Sprayer
Pump Safety Precautions
CAUTION: Chemicals can be
dangerous. Avoid injury to operator
or bystanders.
• Read chemical container label for mixing
and handling instructions. A Safety Data
Sheet (SDS) should be supplied by the
chemical dealer and provides proper safety
information. Wear proper clothing and safety
equipment while handling or applying spray
chemicals.
• Prohibit all smoking, drinking, and eating
around chemicals.
• When lling tank, never allow end of water
hose to contact chemical mixture.
IMPORTANT: Avoid damage! Clean any spills
immediately with clean water prior to operating
sprayer.
• Do not pump ammable or explosive uids
such as gasoline, fuel oil, or kerosene.
• Do not pump acids (i.e. acid fertilizer) with
cast pump. For acid fertilizer application use
the Silver Series pump with Teon rollers.
Frontier part number 5CS43649.
• Do not run pump dry! Do not pump faster or
above maximum recommended speed and
pressure (1200 rpm, 300 psi).
• Do not pump liquids at temperatures higher
than recommended maximum temperature
(60°C, 140°F).
• Disengage PTO, release all pressure and
drain all liquids before servicing pump.
Spraying with the Boom
1. Calibrate the sprayer to achieve the desired
gallons per acre (GPA). Refer to Calibrating
the Sprayer and the Calibration Chart to
determine the correct pressure settings.
2. Connect pump PTO coupler to PTO shaft.
3. Fill tank with water to set pressure and test
A
C
B
Operation
