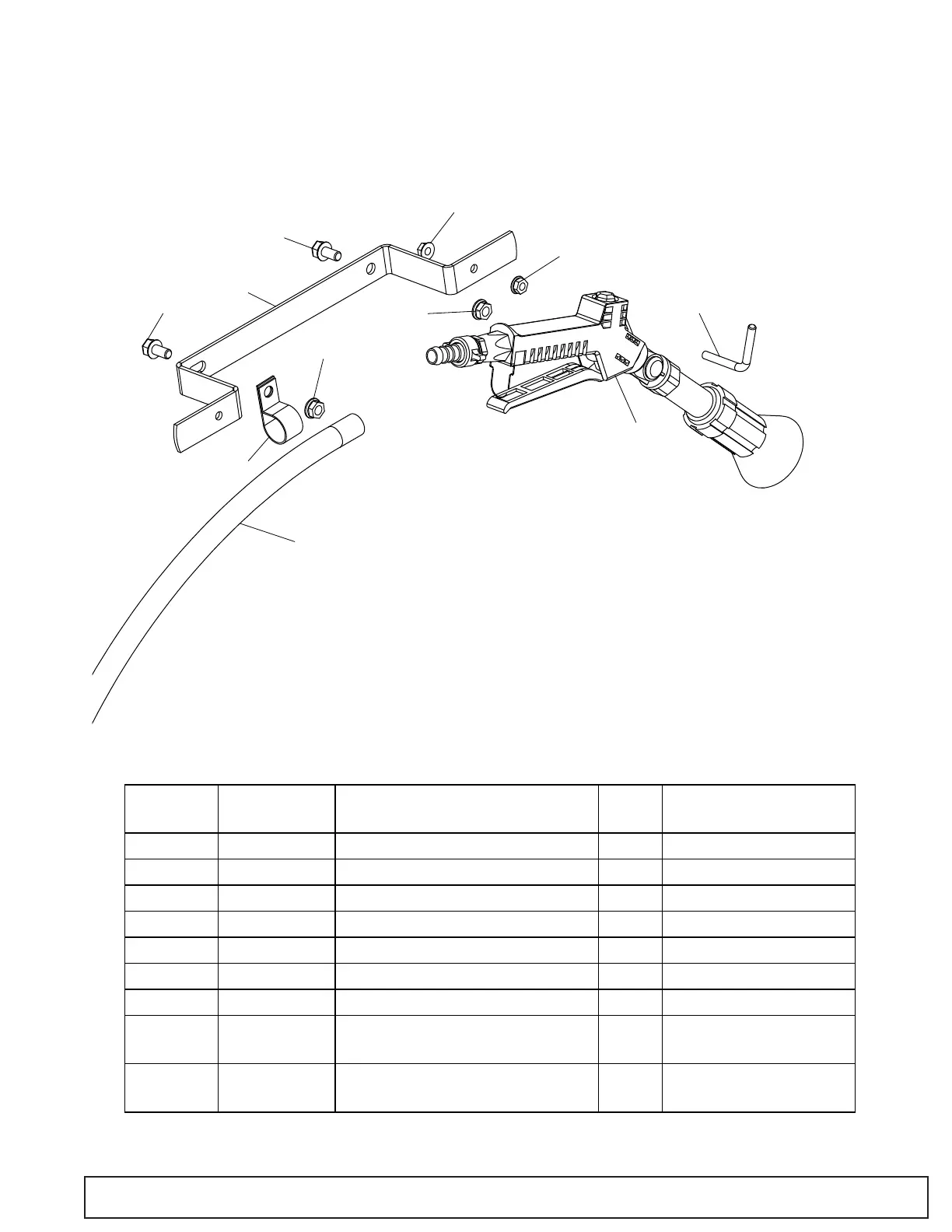

Parts Diagrams
30 ft Hand Sprayer
15
5
4
6
1
7
3
2
2
8
ITEM NO.
PART
NUMBER
DESCRIPTION QTY. Note
1 A22698 5/16” Flange Nut 2
2 N10217 1/4” Flange Nut 2
3 5CS62008 1/4” Bent Pin 1
4 5CS62006 Hose Hanger 1
5 T58694 5/16” x 5/8” Flange Bolt 2
6 5CS43663 Hose Holder 1/2” 1
7 5CS43435 Sprayer Handgun 1
8 1/2" Hose 1
CTL 360", MF
5CS43418
- 5CS43652
Hose Clamp Screw Type 3/8” -
1/2”
2 Not Illustrated
