5CS2006OM (rev 00 07/2020) 40 Parts Diagrams
13
3
2
1
3
12
3
4
11
9
6
5
11
8
7
4
11
10
6
13
12

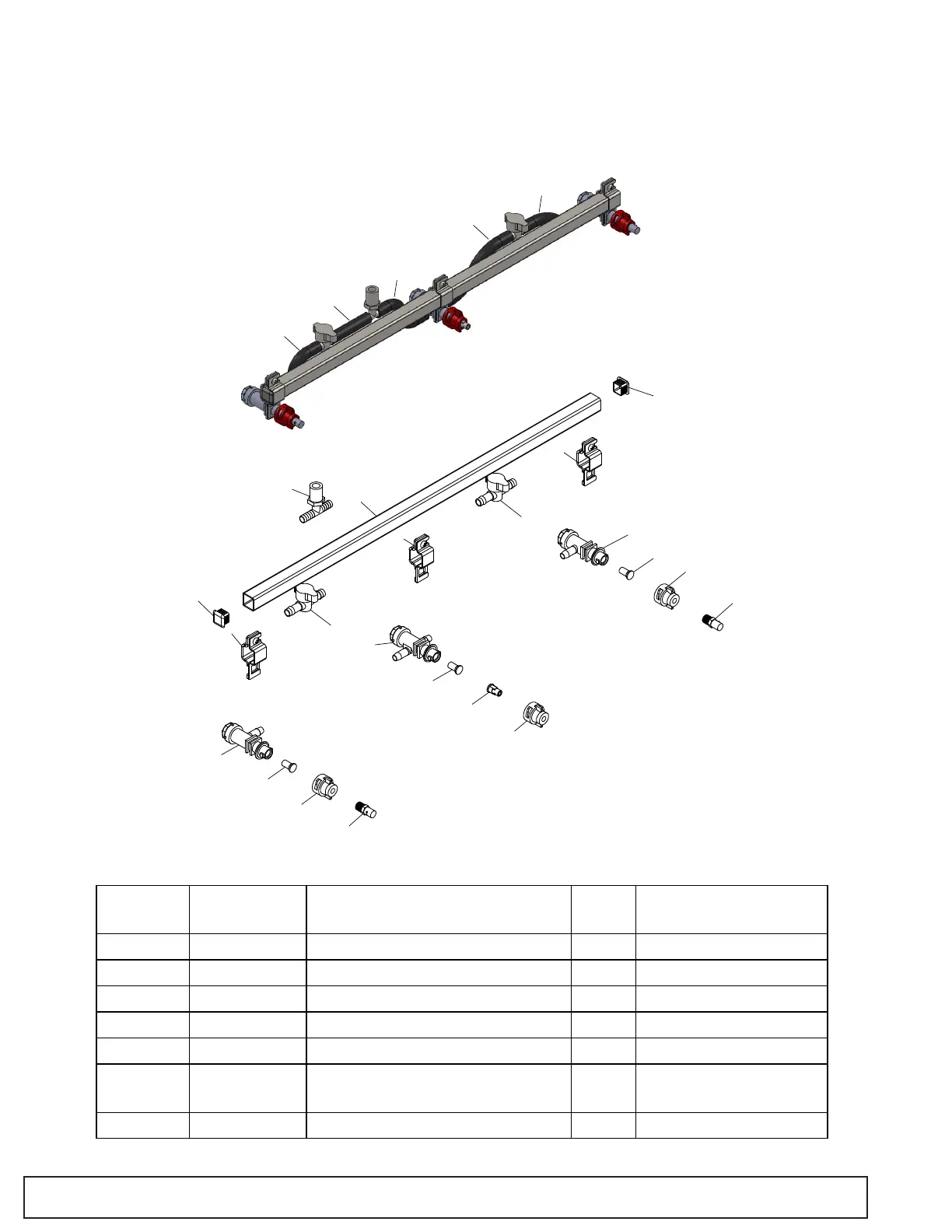

5CS0014 / 5CS0015 - 24' Boomless Nozzle
6-25-20
14
15
16
14
15
Boomless 24' Spray
ITEM NO.
PART
NUMBER
DESCRIPTION QTY. Note
1 5CS61020 Boom Tube 31” 1
2 5CS43597 Tee 1/2” Barb - 1/2” NPT F 1
3 5CS43598 Square Tube Clamp 1” 3
4 5CS43658 Nozzle Body Single Hose 1/2” 2
5 5CS43595 Nozzle Body Dual Hose 1/2” 1
6 5CS43599
Spray Tip Cap w/ Gasket for
Threaded Tips
2
7 5CS43408 Spray Tip Cap w/ Gasket 1
To Next Page
