Frontier LS2006 - Page 42

5CS2006OM (rev 00 07/2020) 42 Parts Diagrams
?
2
9
4
21
20 20
23
1
20
20
6
25
9
9
2
24
5
10
7
11
13
8
19
3
22
12
18
18
27
26
28
19
19
14
15
17
16
18
18
18
18
19
19
19
19
19
18
18
30
20
31
32

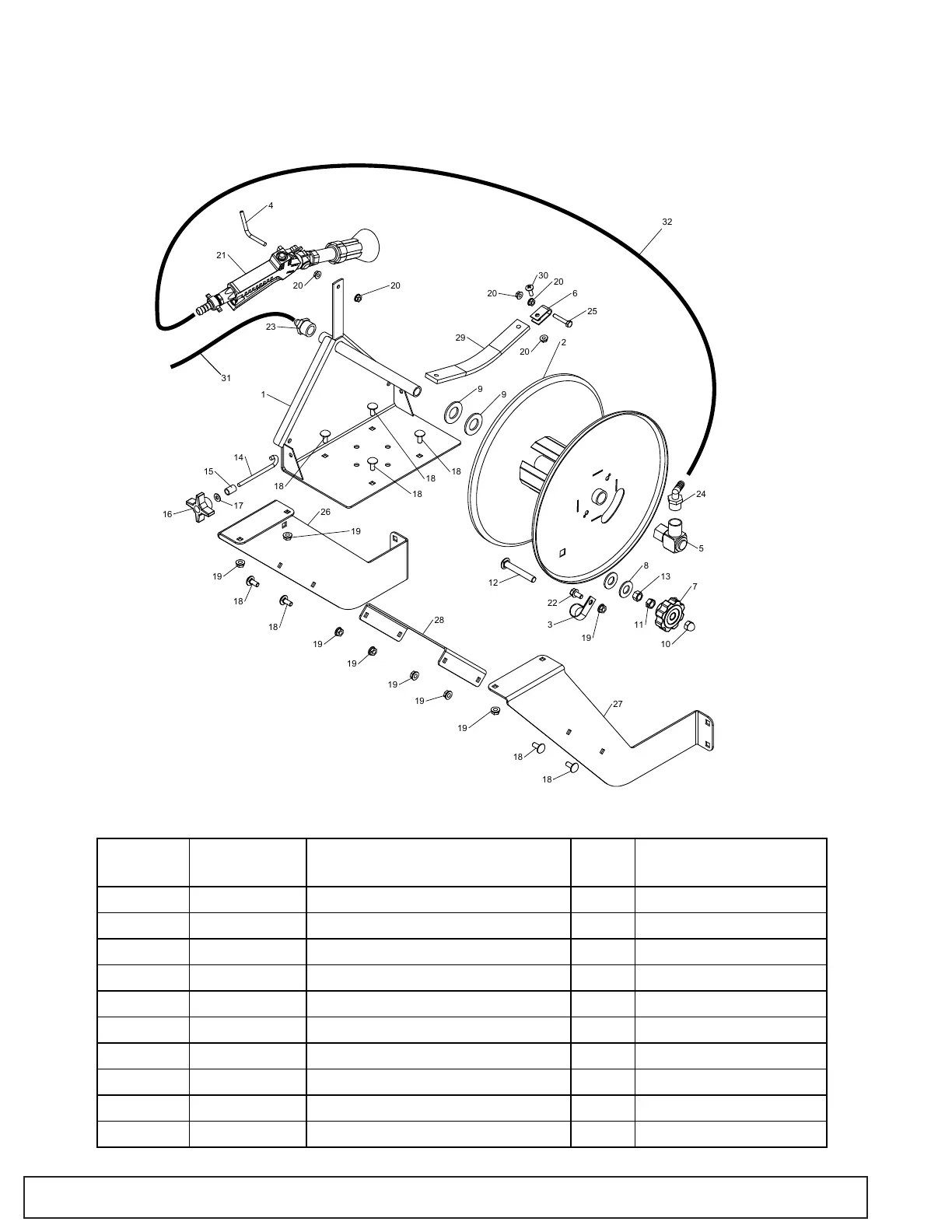

100 ft Hose Reel
ITEM NO.
PART
NUMBER
DESCRIPTION QTY. Note
1 5CS43686 Hose Reel Base 1
2 5CS43687 Hose Reel Assembly 1
3 5CS43663 Hose Holder 1/2” 1
4 5CS62008 1/4” Bent Pin 1
5 5CS43782 Swivel 1/2” FPT, Elbow 1
6 5CS50245 Retention Strap Clamp 1
7 5CS43783 Swivel Knob 1
8 A110615 5/8” SAE Washer 2
9 5CS65161 7/8” SAE Washer 2
10 5CS65162 7/16” Acorn Nut 1
