Frontier RT 1149 - Installation and Removal; Tiller Attachment Steps

C
B
Locate driller pin in lower lift brackets holes
(B).
RT 1157-1165 model.

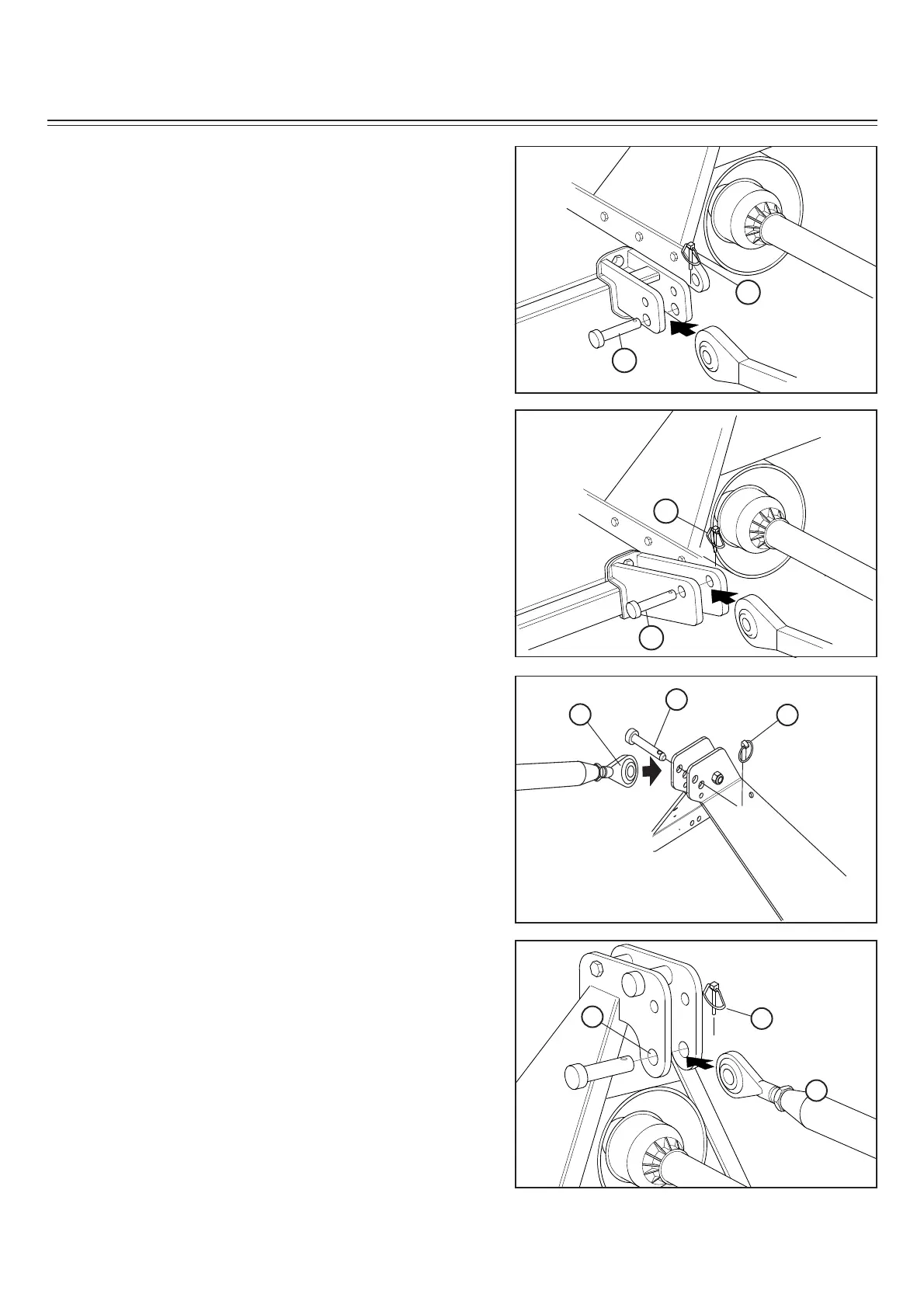

2. Fasten each draft link to draft link brackets with drilled
pins and quiklock pins (C).
Locate driller pin in holes (B).
RT 1265 model.
2. Fasten each draft link to draft link brackets with drilled
pins and quiklock pins (C).
Locate driller pin in top holes (D)
RT 1142-1149 model.
3. Install center link (F) on tiller and fasten with drilled
pin and quiklock pin (E).
Locate driller pin in top holes (D)
RT 1157-1165 and 1265 model.
3. Install center link (F) on tiller and fasten with drilled
pin and quiklock pin (E).
INSTALLING
E
F
C
B
D
E
F
D
Preparing the vehicle - Page 11
