Spare parts
Spare parts should be ordered from your Dealer and should always include the following indications:
• Type, model and serial number of the machine. These data are punched on the data plate with which
every implement is equipped.
• Code number of the required spare part. This will be found in the spare parts catalogue.
• Description of the part and required quantity.
• Table number.
NOTE: The terms right or left indicated in the descriptions refer to the implement when viewed
from the rear side.

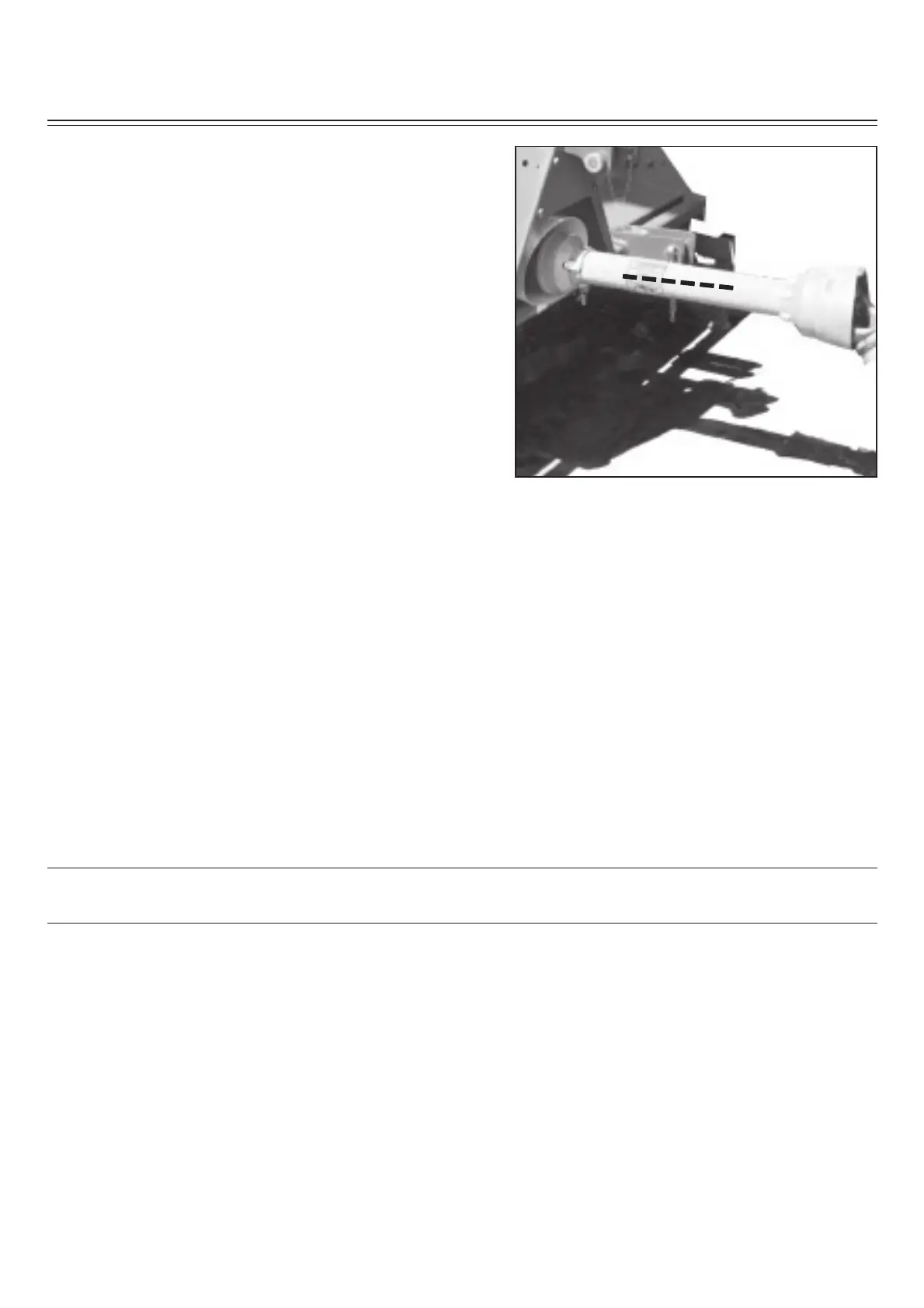

Installing driveline on tiller
NOTE: Shield removed for clarity ONLY. ALWAYS
keep shield in place.
1. Pull coupler back and slide driveline on driveshaft until
coupler LOCKS in place.
NOTE: You should hear a clicking sound when dri-
veline is properly installed.
ASSEMBLY / SPARE PARTS
Assembly - Page 34
