6.0 INSTALLATION INSTRUCTIONS: READ CAREFULLY
BEFORE INSTALLING ALARM
CAUTION: THIS UNIT IS SEALED. THE COVER IS NOT
REMOVABLE!
6.1 Select proper location (See section 5.0)
6.2 A mounting plate is provided on the back of the alarm. Remove the
mounting plate from the back of the alarm by holding the mounting
plate and twisting the alarm in the direction indicated by the "OFF"
arrow on the alarm cover.
Step A: Wall Alignment
Step B: Alarm Activation Step C: Removal and Installation
6.3 To insure aesthetic alignment of the alarm with the hallway or wall, the UP ↑
arrow on the mounting plate must be vertical when wall mounting:

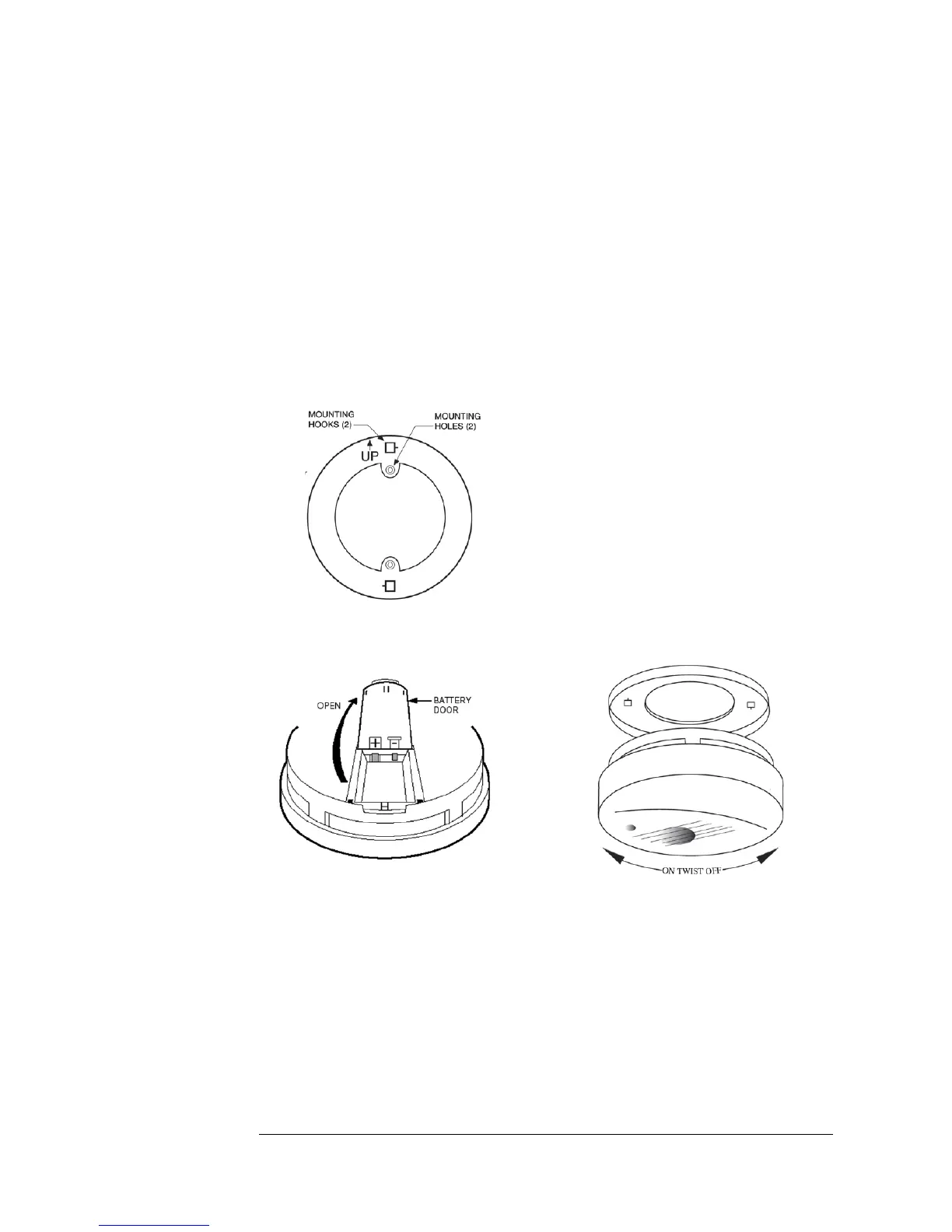

Figure 2: Installation Instructions
