FS N5860 Series - Connecting the Console Port; Connecting the MGMT Port

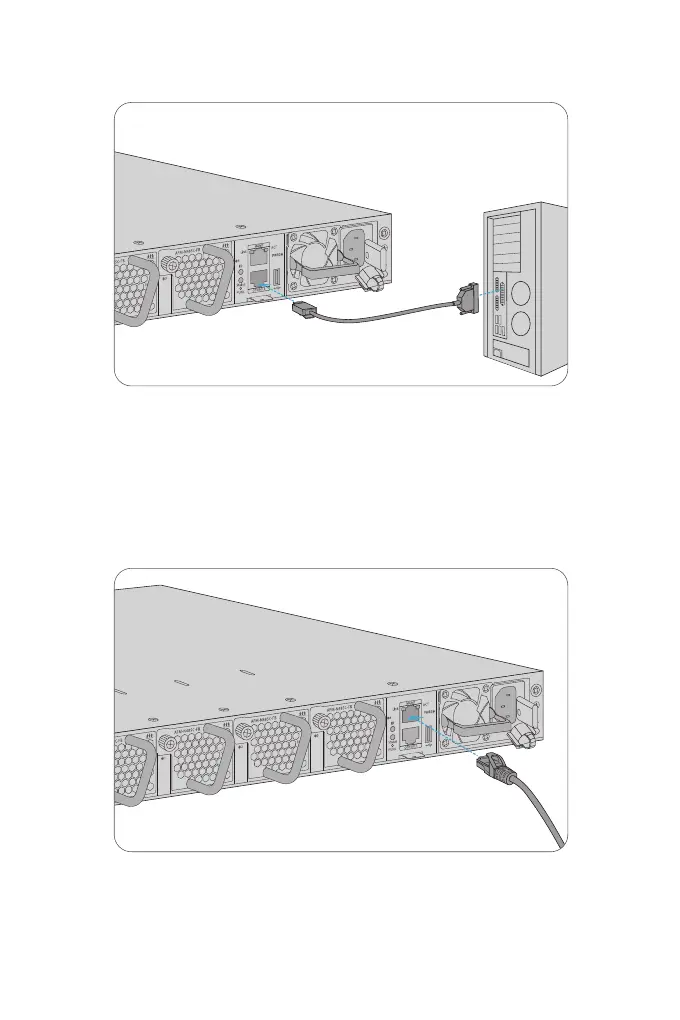

Connecting the Console Port
1. Insert the RJ45 connector into the RJ45 CONSOLE port of the switch.
2. Connect the DB9 female connector of the console cable to the RS-232 serial port on the computer.
Connecting the MGMT Port
1. Connect one end of a standard RJ45 Ethernet cable to a computer.
2. Connect the other end of the cable to the MGMT port of the switch.
