FS UMC-GA1SC1T-SM-FX - Bottom Panel

4 EN
NOTE: 1. LFP (Link Fault Pass Through) Function: If enabled, when a
device is connected to the converter and the TP/ber line loses the
link, the converter's ber will disconnect the link of transmit.
2. ALS (Automatic Laser Shutdown) Function: If enabled, the output
power of the SFP transmitter will be automatically shut down in case of
ber break.
3. FX Reset: If enabled, when the FX link is down, the power will shut
down, but a few seconds later the power will restart automatically.
No.
1
2
3
4
Function
LFP Function
State
OFF
Description
Disable
ALS Function
ON Enable
FX Reset
OFF Disable
FX Speed Set
ON Enable
OFF Disable
ON Enable
OFF FX 1000M
ON FX 100M/1000M

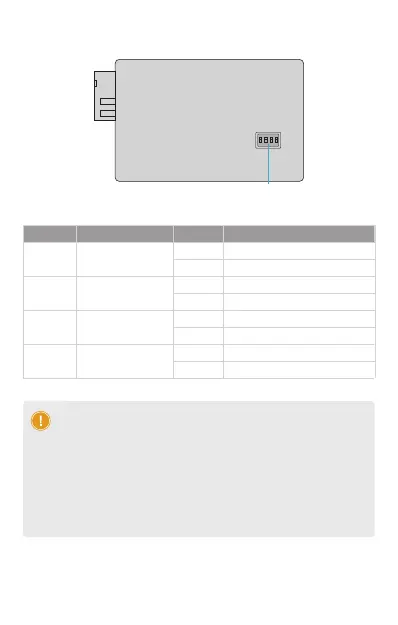

Bottom Panel
ON
1 2 3 4
KE
DIP Switch
