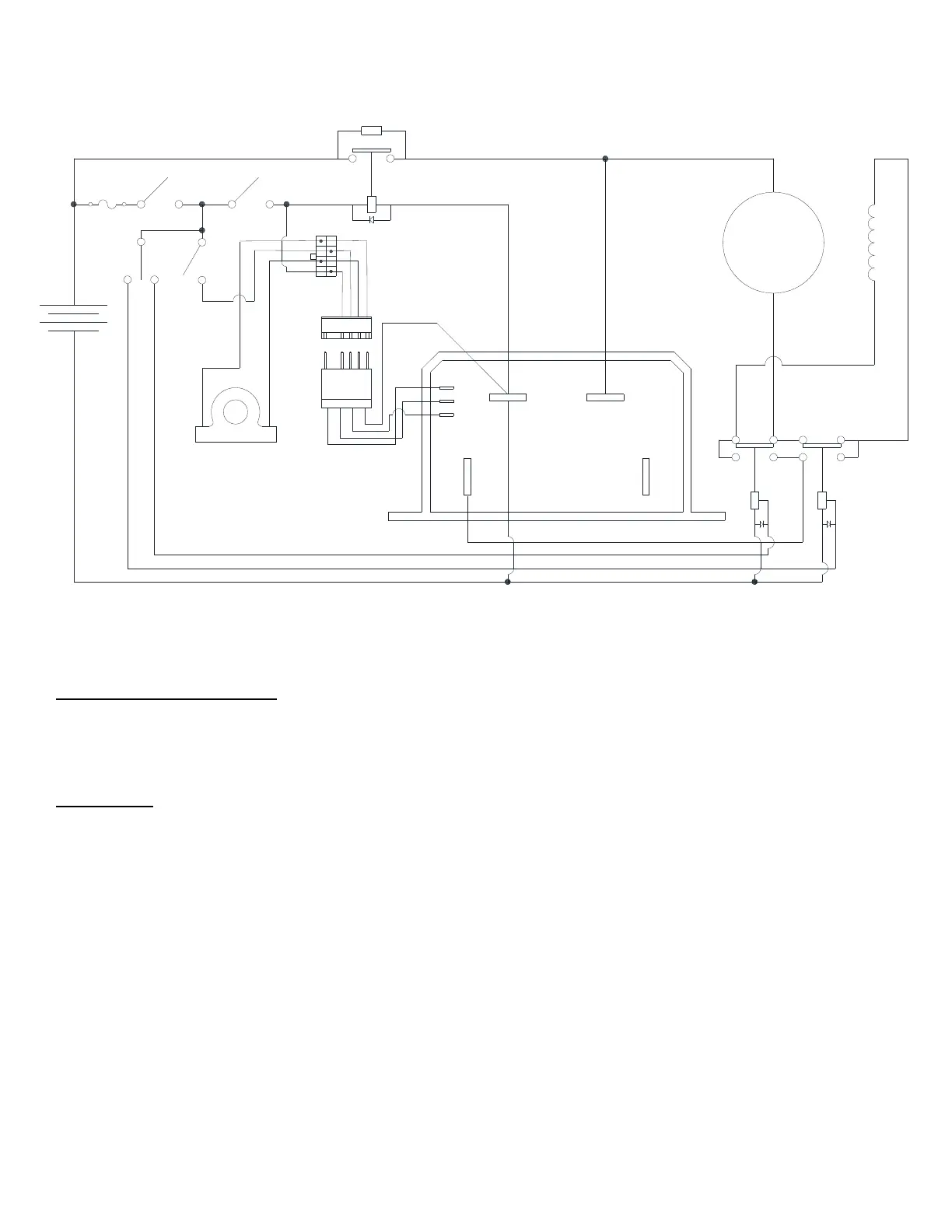

Typical Ruff-N-Tuff Golf Car wiring with F & R switch using ITS Converter
Original 8 Pin Vehicle Connector
Pin 5 – ITS Input to Pin 1 of ITS Converter
Pin 7 – ITS Positive to Pin 2 of ITS Converter
Pin 2 – Turf Switch to Pin 3 of ITS Converter
Pin 4 – Key Switch to Pin 4 of ITS Converter
ITS Converter
Pin 1 (Red) – B+ volts with accelerator depressed (Start Switch) wired to Pin 1 of STAR
Pin 2 (Blue) – 5vdc (wired to Pin 2 of STAR)
Pin 3 (White) – 0 to 5vdc (open to full throttle) wired to pin 3 of STAR.
Pin 4 (Black) – Wired to B- post of STAR controller.
B-
B+
M-
A2
ITS
CONVERTER
1
2
3
4
1
2
3
1
5
4
8
MICROSWITCH
KEY SWITCH
F-R SWITCH
FUSE
PRECHARGE
A1
A2
S1
S2
FWD
1
2
3
4
6
REV
LINE
ITS THROTTLE
TURF SW
PIN VIEW
