Output Layout

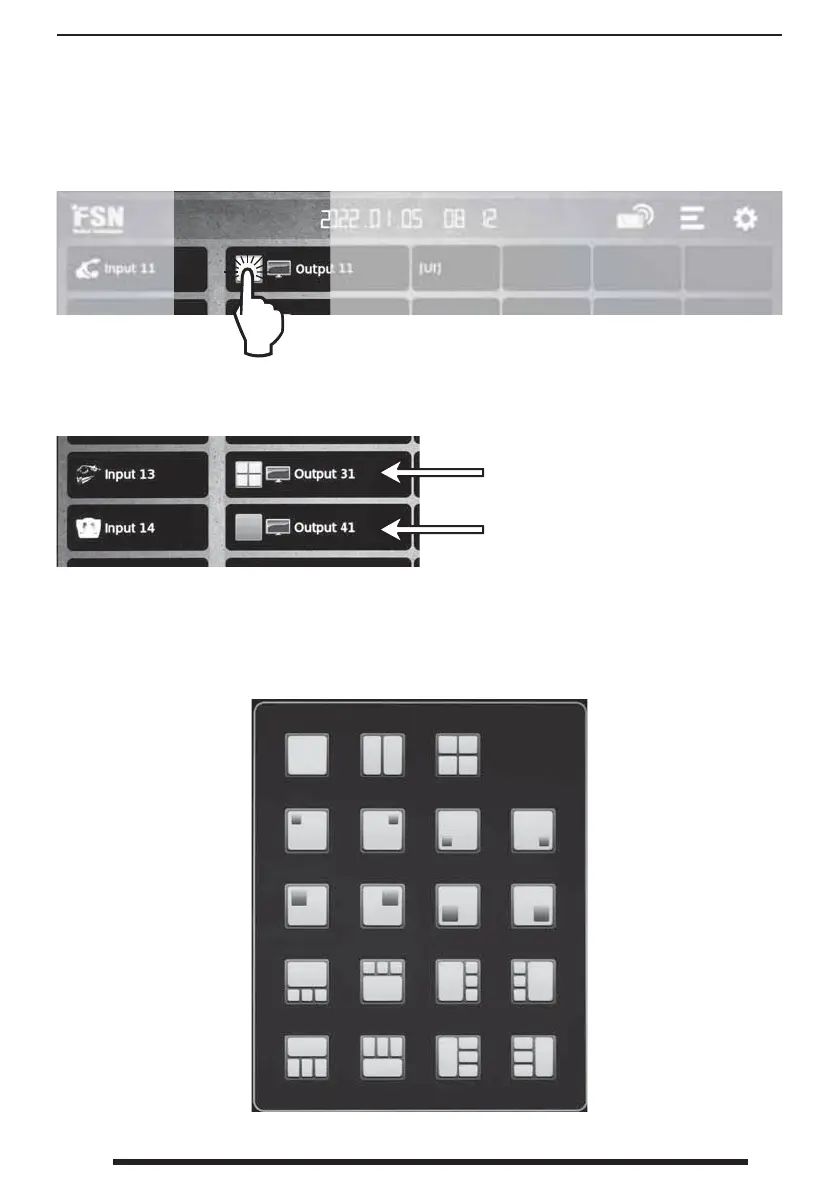

From the dashboard, select the layout icon to show the output layout options.
Select the desired output window layout. Changes take e ect immediately.
If the layout icon is gray, this indicates that multi window layouts are not available (non-scaled
output board).
Scaled output board.
Non-scaled output board.
