FSN IPS4000 - Connections

17
11/2022
IN OUT
1 2 3 4
1
MONITOR
OUTPUT
INPUT SLOT 1-4 OUTPUT SLOT 5-8 OUTPUT SLOT 9-12
RS-232 UART AS
2
3
4
5
6
7
8
9
10
11
12
AUDIO
1
2
3
4
I
O

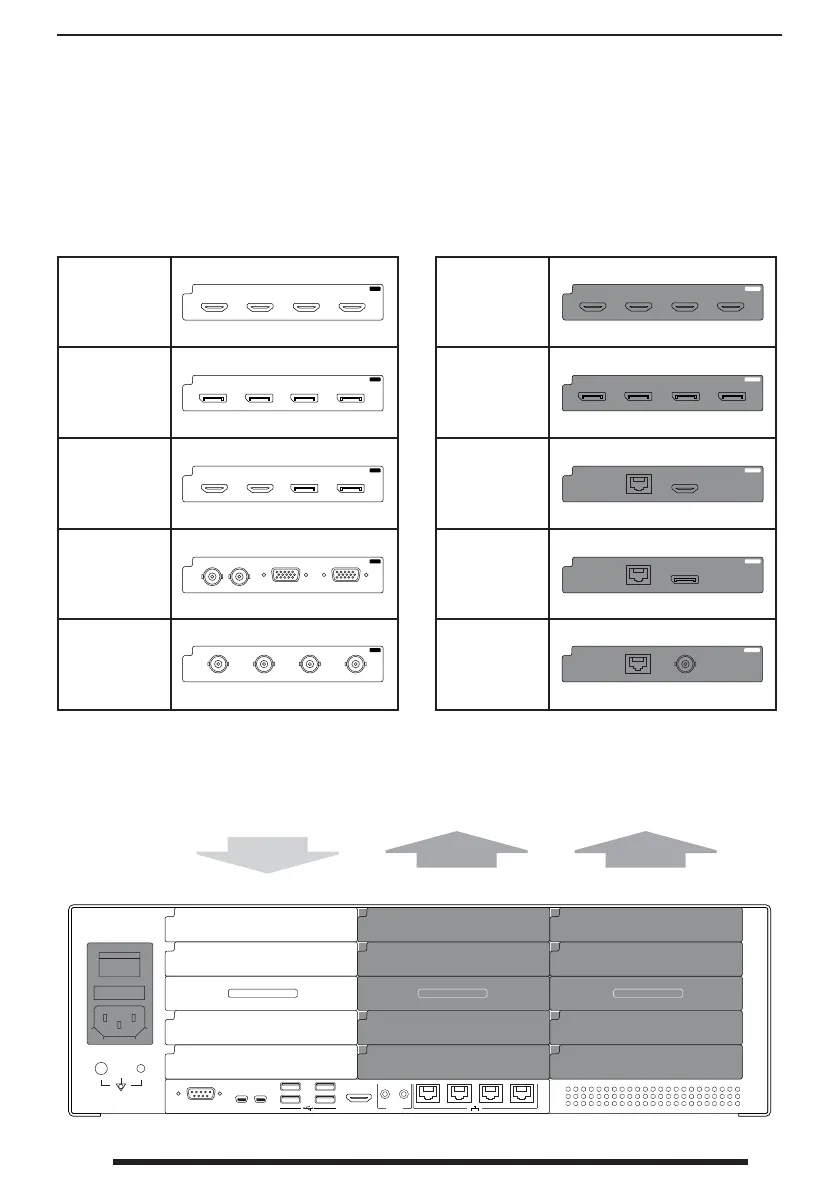

Connections
Up to 4 input slots available. Up to 8 output slots available.
Input Output Output
* Scaled output. Adjustments available for resolu-
tion, window layout, zoom, pan functions.
IPS4000 is designed for modular con guration. Various combinations of input and output cards
can be assembled at the factory. Not all IPS4000 units will look the same.
Following are descriptions of IPS4000 input and output cards and their unique functions.
HDMI quad input
card.
Name: HDIN
HDMI 1 HDMI 2 HDMI 3 HDMI 4
HDIN
DisplayPort quad
input card.
Name: DPIN
DP 1 DP 2 DP 3 DP 4
DPIN
Dual HDMI, dual
DisplayPort input
card.
Name: DHIN
HDMI 1 HDMI 2 DP 1 DP 2
DHIN
Analog input
card.
Name: ANIN
CVBS 1 CVBS 2 VGA 1 VGA 2
ANIN
12G SDI input
card.
Name: SDIN
INPUT OUTPUT INPUT OUTPUT
12G-SDI 1 12G-SDI 2
SDIN
HDMI quad
output card.
Name: HQOUT
HDMI 1 HDMI 2 HDMI 3 HDMI 4
HQOUT
DisplayPort quad
output card.
Name: DQOUT
DP 1 DP 2 DP 3 DP 4
DQOUT
HDMI (scalable)*
output card.
Name: HDOUT
HDMI
RS-232
HDOUT
DisplayPort
(scalable)*
output card.
Name: DPOUT
RS-232
DP
DPOUT
12G SDI
(scalable)*
output card.
Name: SDOUT
12G-SDI 2
RS-232
SDOUT
