Online UPS 1K/2K/3K
FSP Manual Guide

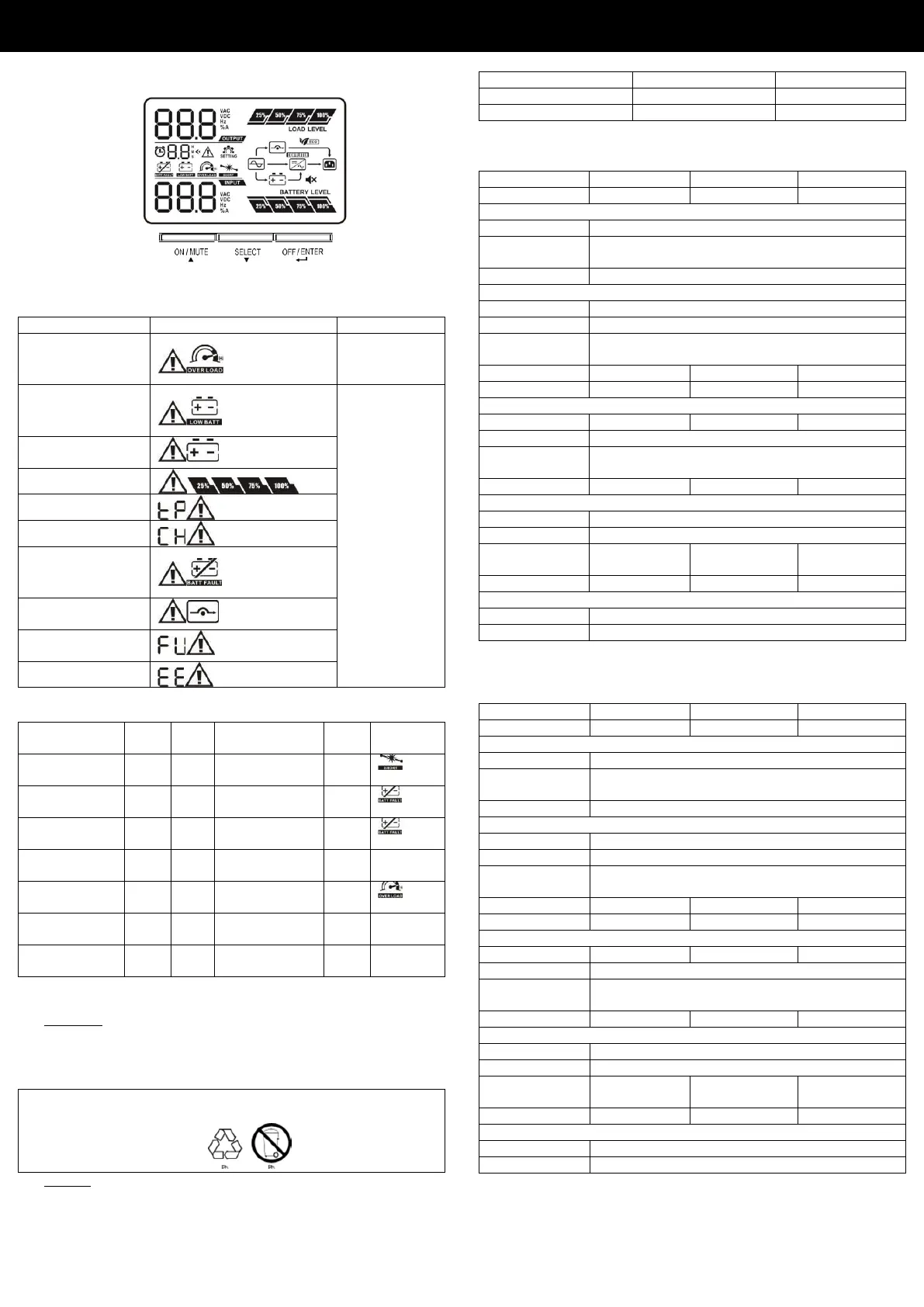

 LCD Panel & Button operation
Detail function/setting and LCD icon indicators. Please see user manual.
 Warning indicator
Warning
Icon (flashing)
Alarm
Overload
Sounding twice
every second
Low Battery
Sounding
every second
Battery is not
connected
Over Charge
Over temperature
Charger failure
Battery fault
Out of bypass
voltage range
Bypass frequency
unstable
EEPROM error
 Faults Reference Code
Fault event
Fault
code
Icon
Fault event
Fault
code
Icon
Bus start fail
01
X
Inverter output
short
14
Bus over
02
X
Battery voltage
too high
27
Bus under
03
X
Battery voltage
too low
28
Bus unbalance
04
X
Over
temperature
41
X
Inverter soft
start fail
11
X
Overload
43
Inverter
voltage high
12
X
Charger failure
45
X
Inverter
voltage Low
13
X
 Storage and Maintenance
Operation
The UPS system contains no user-serviceable parts. If the battery
service life (3~5 years at 25°C ambient temperature) has been
exceeded, the batteries must be replaced. In this case, please contact
your dealer.
Be sure to deliver the spent battery to a recycling facility or ship it to
your dealer in the replacement battery packing material.
Storage
Before storing, charge the UPS 5 hours. Store the UPS covered
and upright in a cool, dry location. During storage, recharge the battery
in accordance with the following table:
Storage Temperature
Recharge Frequency
Charging Duration
-25°C - 40°C
Every 3 months
1-2 hours
40°C - 45°C
Every 3 months
1-2 hours
 Specifications
Champ Tower 1~3K
MODEL
1K(L)*
2K(L)*
3K(L)*
CAPACITY*
1000VA/900W
2000VA/1800W
3000VA/2700W
INPUT
Voltage
208 / 220 / 230 / 240Vac
Voltage Range
120-300Vac (Based on load at 50%)
160-280Vac (Based on load at 100%)
Frequency
40~70Hz
OUTPUT
Voltage
208 / 220 / 230 / 240Vac
Regulation
± 1%
Frequency
47~53Hz or 57~63Hz (Synchronized Range)
50Hz ± 0.25Hz or 60Hz ± 0.3Hz (Batt. Mode)
Eff.(AC Mode)
88%
88%
90%
Eff.(Bat mode)
83%
87%
88%
Battery
Type/ Numbers
12V/9Ah *2
12V/9Ah *4
12V/9Ah *6
Charge Time
4 hours recover to 90% capacity
Capacity
1.0A for Standard model
1A / 2A / 4A / 6A (Adjustable) for long-run model
Charge Vol.
27.4Vdc± 1%
54.7Vdc ±1%
82.1Vdc ±1%
PHYSICAL&ENVIRONMENT
Humidity
20-90% RH @ 0-40°C (non-condensing)
Noise Level
Less than 50dBA @ 1 Meter
DxWxH (mm)
282x145x220
*282x145x220
379x145x220
*379x145x220
421x190x318
*397x145x220
Net weight(kg)
9.8/*4.1
17/*6.8
27.6/*7.4
MANAGEMENT
RS-232 / USB
Supports Windows, Linux and MAC system
Optional SNMP
management from SNMP manager/web browser
*Long-run model power factor: 0.8
**Product specifications are subject to change without further notice
Champ Rack 1~3K
MODEL
1K(L)*
2K(L)*
3K(L)*
CAPACITY*
1000VA/900W
2000VA/1800W
3000VA/2700W
INPUT
Voltage
208 / 220 / 230 / 240Vac
Voltage Range
120-300Vac (Based on load at 50%)
160-280Vac (Based on load at 100%)
Frequency
40~70Hz
OUTPUT
Voltage
208 / 220 / 230 / 240Vac
Regulation
± 1%
Frequency
47~53Hz or 57~63Hz (Synchronized Range)
50Hz ± 0.25Hz or 60Hz ± 0.3Hz (Batt. Mode)
Eff.(AC Mode)
88%
89%
90%
Eff.(Bat mode)
83%
87%
88%
Battery
Type/ Numbers
12V/9Ah *2
12V/9Ah *4
12V/9Ah *6
Charge Time
4 hours recover to 90% capacity
Capacity
1.0A for Standard model
1A / 2A / 4A / 6A (Adjustable) for long-run model
Charge Vol.
27.4Vdc± 1%
54.7Vdc ±1%
82.1Vdc ±1%
PHYSICAL&ENVIRONMENT
Humidity
20-90% RH @ 0-40°C (non-condensing)
Noise Level
Less than 50dBA @ 1 Meter
DxWxH (mm)
310x438x88
*310x438x88
410x438x88
*410x438x88
630x438x88
*410x438x88
Net weight(kg)
12/*9
19/*12
29.3/*14.2
MANAGEMENT
RS-232 / USB
Supports Windows, Linux and MAC system
Optional SNMP
management from SNMP manager/web browser
*Long-run model power factor: 0.8
**Product specifications are subject to change without further notice
