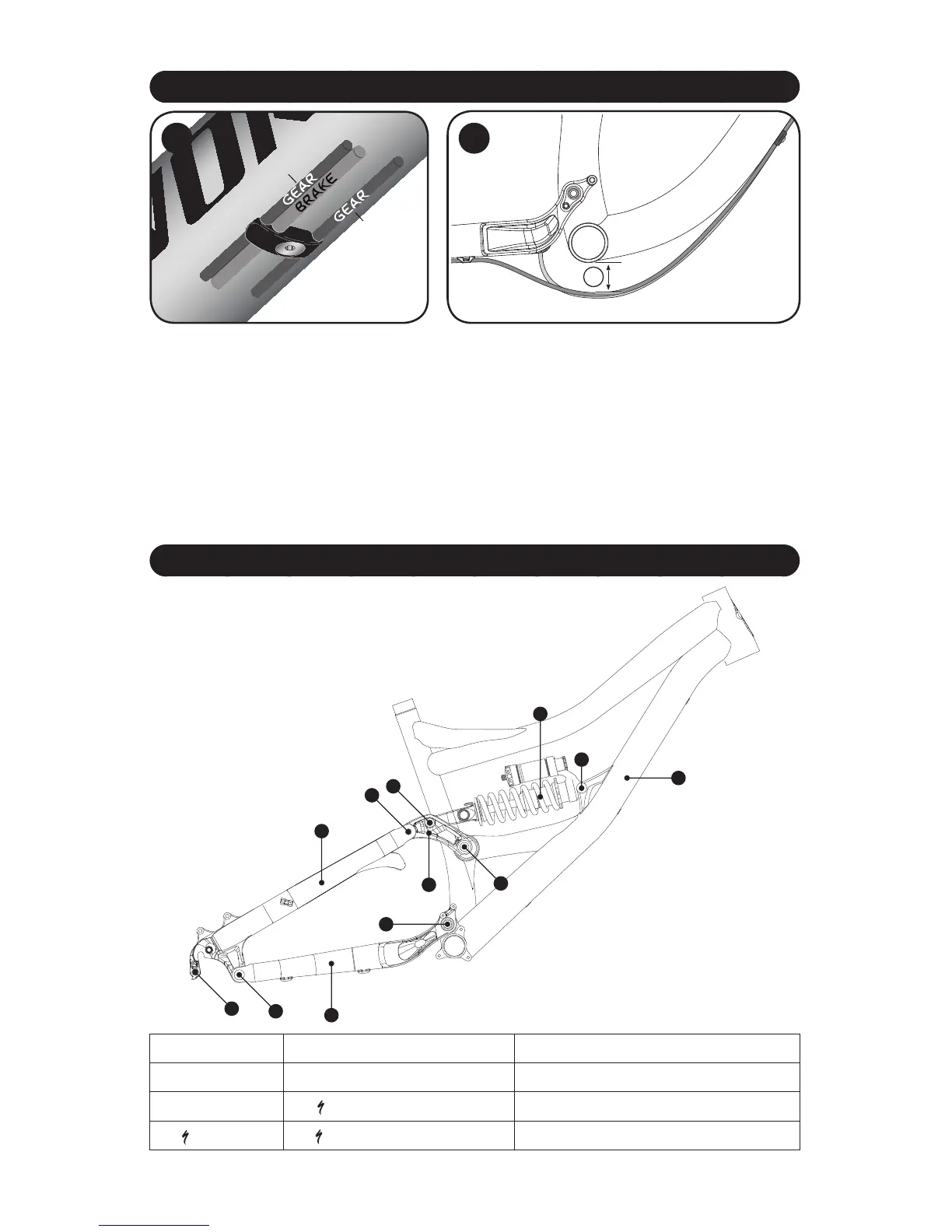

Specialized SX Trail frames are equipped with bolt-on down tube cable guides. For
proper housing placement and function, the hydraulic rear brake housing goes in the
larger middle slot, the gear cables go on the outside (Fig. 1).
NOTES:
Only use 4mm gear housing.
Do not overtighten the guide bolts!
SX Frames require approximately 1.5” (38mm) of distance (A) between the bottom
bracket shell and the cable housings (Fig. 2).
FRAME FEATURES
1
2
3
4
5
6
7
8
9
10
11
12
1. Main Frame 5. Main Pivot / DMD 9. Upper Shock Eyelet
2. Seatstay 6. Dropout (Horst) Pivot 10. Lower Shock Eyelet
3. Chainstay
7.
-Link @ Seatstay Pivot
11. Shock
4. -Link 8. -Link @ Frame Pivot 12. Replaceable Derailleur Hanger
1 2
A
