Fuel Ergometer FE 300 - Page 31

31

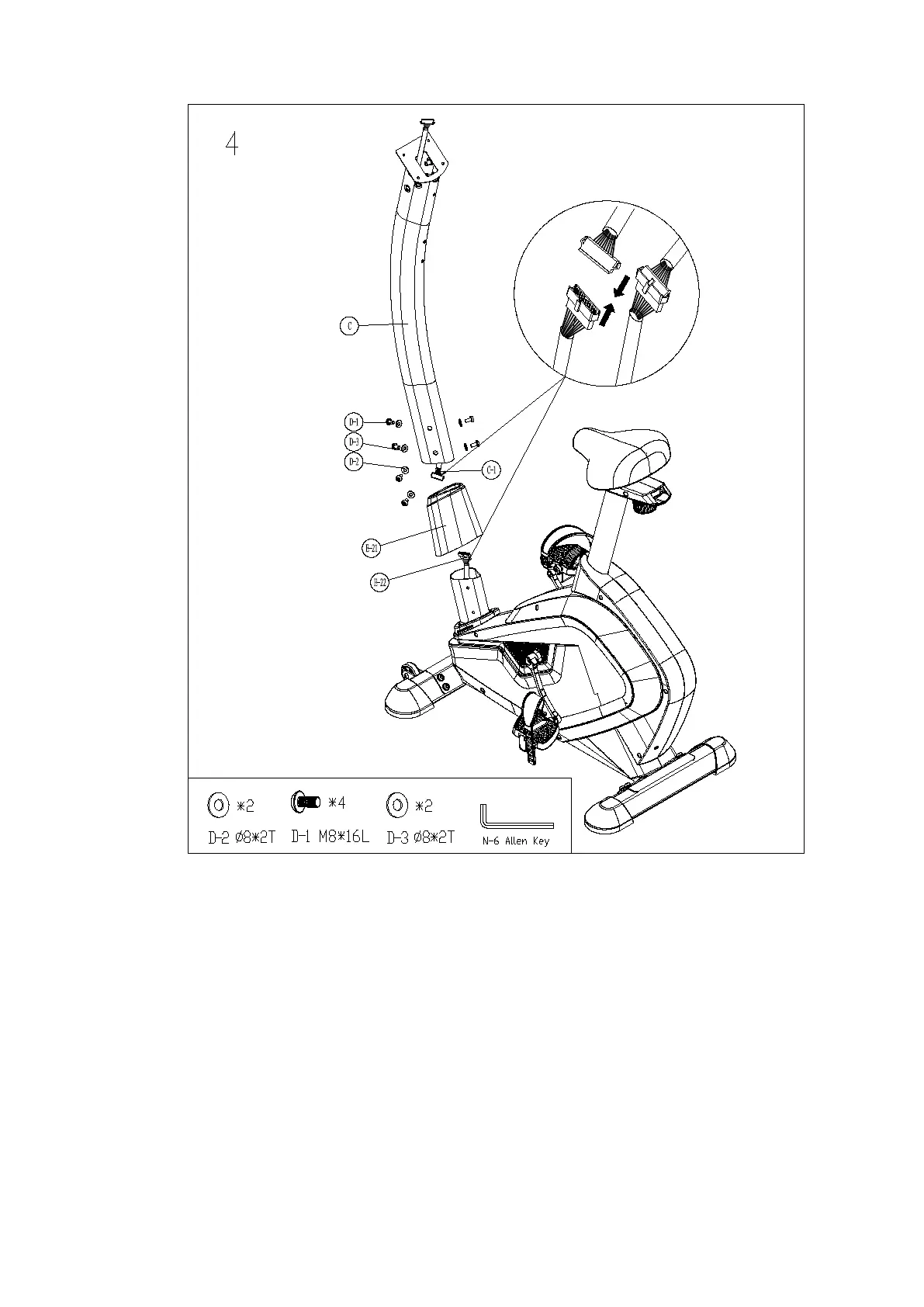

Step 4:
1. Loose the fixings (D-1 / D-2 / D-3), carefully pull out the cables (E-22 / C-1) from the main
frame and connect them with the upper cable parts.
2.
Slide the cover (E-21) from bottom end through the handlebar post (C) and fix the post
with the screws (D-1), washers (D-2) and circle washers (D-3) on main frame.
