Fuel Ergometer FE 300 - Page 32

32

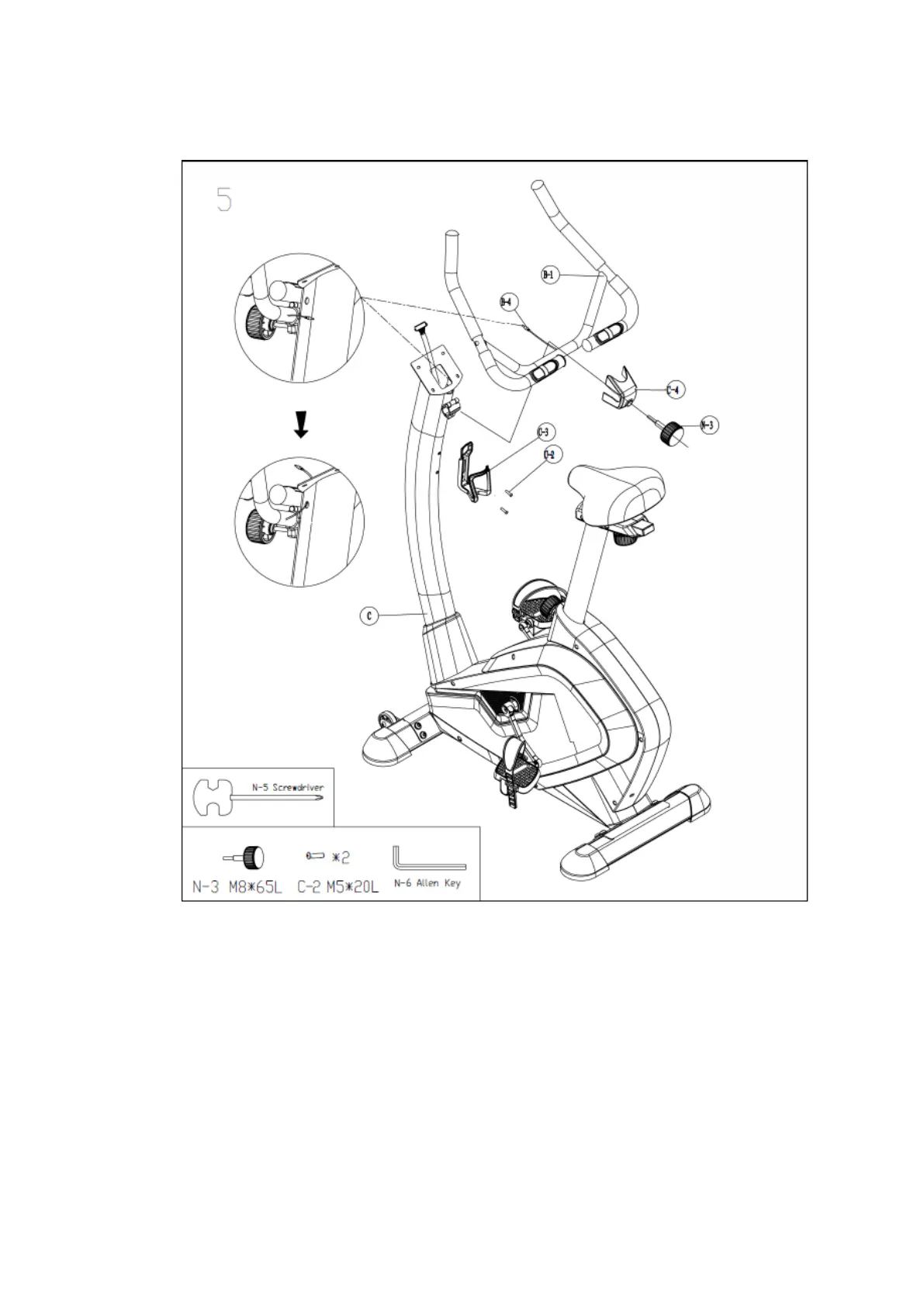

Step 5:
1. Fix the bottleholder (C-3) on handlebar post (C) with 2 screws (C-2).
2. Guide the handpulse cable through the drilling as shown in the small drawing above.
3. Fix
the handlebars (B-1) with the cover (C-4) and the T-knob screw (N-3) on handlebar post
(C).
