Product Overview
2

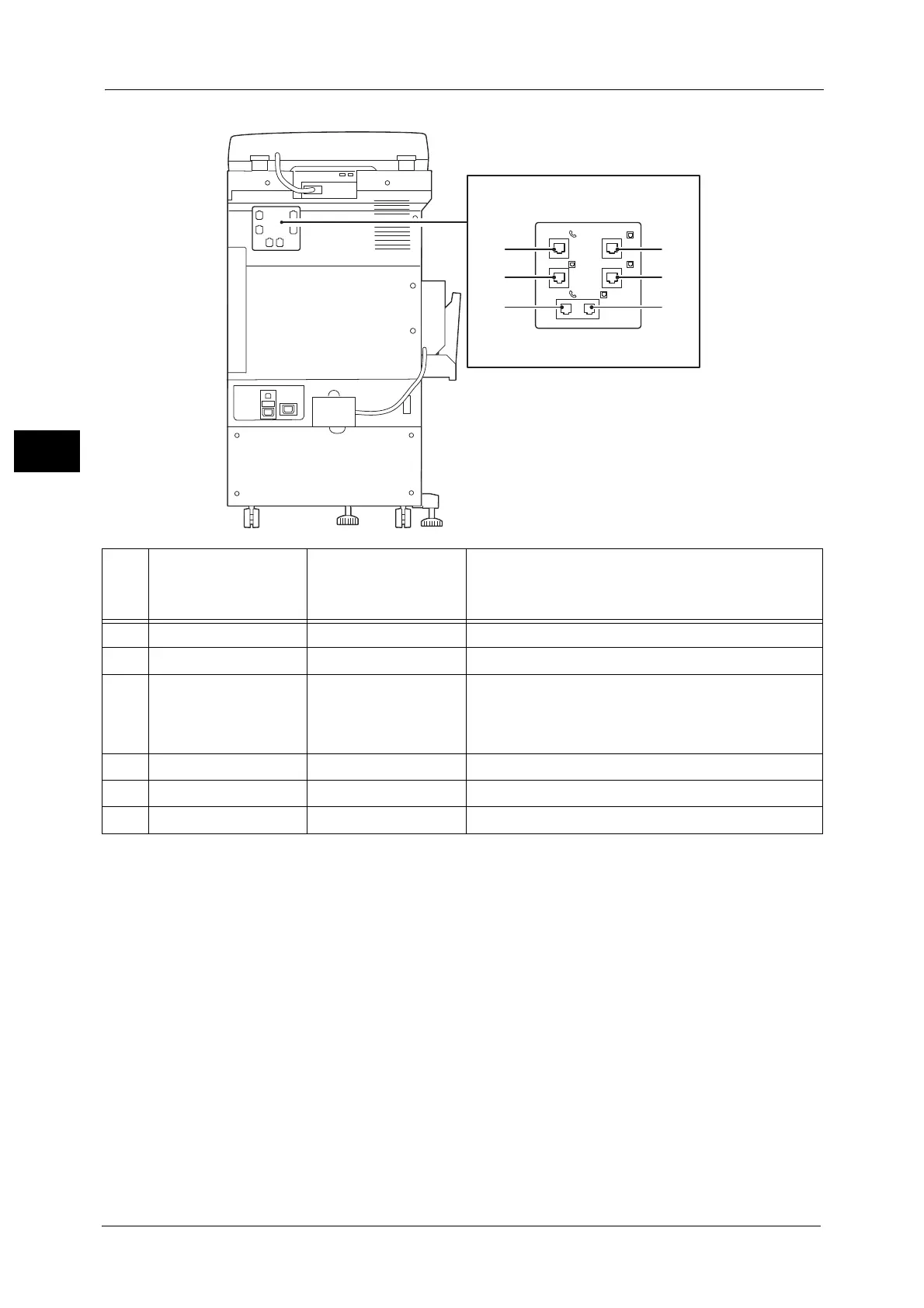

Telephone line connectors
Note • The Fax service is not available for some models. An optional component is required. For more
information, contact our Customer Support Center.
• LINE 2 (Line 2) and LINE 3 (Line 3) are optional.
• HANDSET and EXT. LINE are not used.
• ISDN connection is not available.
• When you talk into the external telephone receiver connected to TEL, only the line connected to
LINE 1 is available. (LINE 2 and LINE 3 are not available.)
HANDSET
EXT LINE
TEL LINE1
LINE2/ISDN1
LINE3/ISDN2
5
4
3
2
1
6
No.
Name marked on
the cover of the
machine
Name displayed on
the touch screen
Function
1 HANDSET - Not available.
2 EXT. LINE - Not available.
3TEL
-
Enables you to connect the machine to a telephone
device.
Do not connect any device (fax system) other than a
telephone.
4 LINE 1 Line 1 Use this connector to connect to a telephone line.
5 LINE 2 / ISDN 1 Line 2 Use this connector to connect to a telephone line.
6 LINE 3 / ISDN 2 Line 3 Use this connector to connect to a telephone line.
