Machine Components
51
Product Overview
2

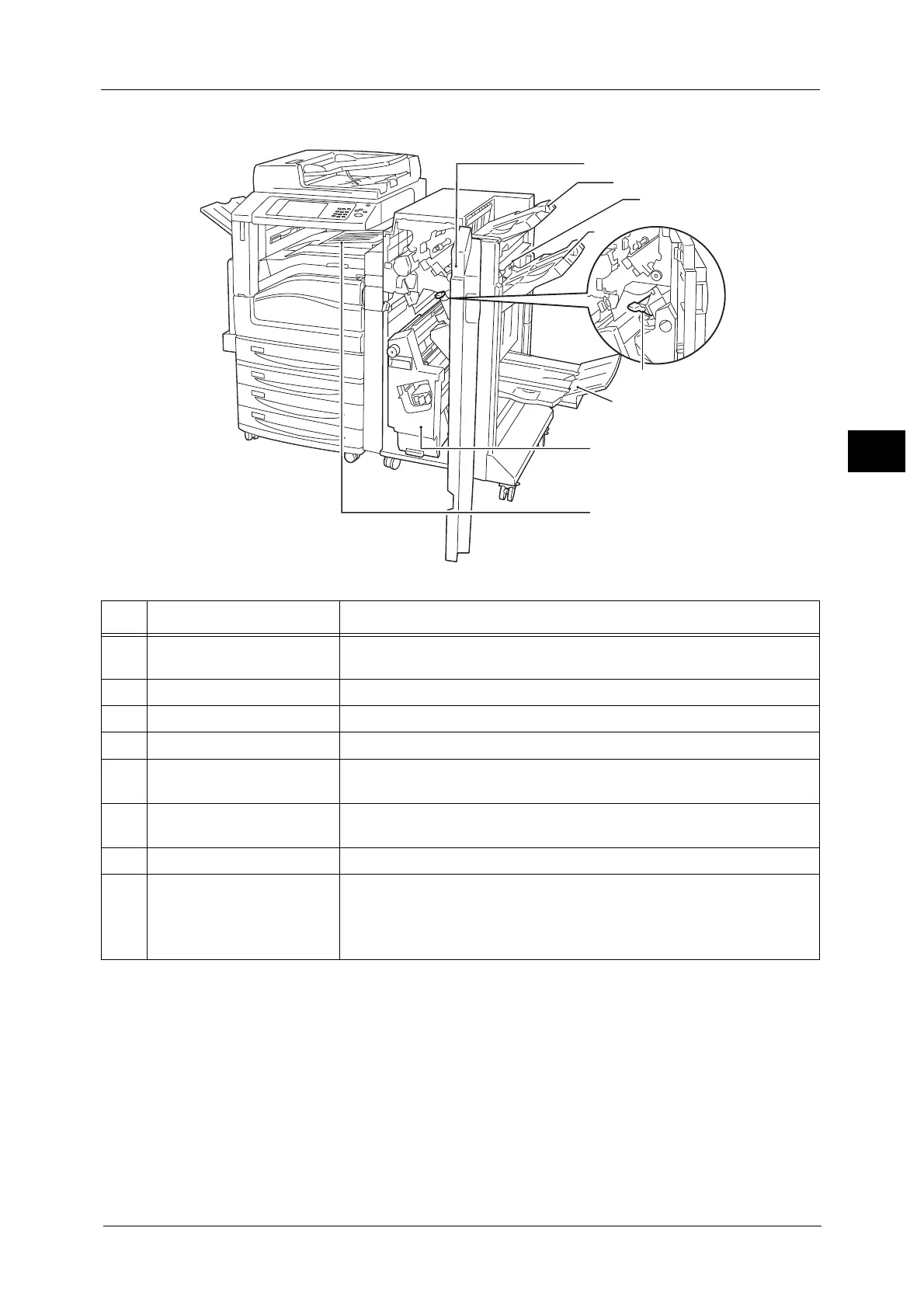

îš„ Finisher-C1 (optional) and Finisher-C1 with Booklet Maker (optional)
Note • The Finisher-C1 and the Finisher-C1 with Booklet Maker are optional. In this guide, the Finisher-A1,
Finisher-B1, and Finisher-C1 are referred to as the "finisher".
No. Component Function
1 Front cover Open this cover when clearing paper jams, replacing or adding staples,
clearing staple jams, or discarding punch scraps.
2 Output tray Outputs are delivered here.
3 Exit cover Open this cover when clearing paper jams.
4 Finisher tray Stapled outputs are delivered here.
5 Staple cartridge Contains staples. Remove this cartridge when replacing or adding staples, or
clearing staple jams.
6 Booklet tray Documents are delivered here when folding is selected for the Booklet
Creation feature.
7 Booklet unit Folds and staples outputs.
8 Center tray (Top cover of the
finisher transport)
Copies and prints are delivered here when they are unable to be delivered to
the output tray or finisher tray. Pull the cover upward when clearing paper
jams.
Note • Remove outputs delivered to the center tray constantly.
