FujiClean ACE - Specifications of the System

2
2 SPECIFICATIONS OF THE SYSTEM
SPECIFICATIONS
Volume (L) Dimensions (mm)
Sedimentation Chamber 1,114 Max. Width 1,440
Anaerobic Filtration Chamber 982 Max. Length 2,510
Aerobic Contact Filtration Chamber 580 Max. Height (with No risers) 1,870
Clarification Chamber
Disnfection/Pump Chamber
281
308
Max. Height (with 300mmH risers)
Max. Height (with 500mmH risers)
2,210
2,360
Total Volume 3,265 Inlet Invert (with No risers) 410
Weight (kg)
440
Inlet Invert (with 300mmH risers)
Inlet Invert (with 500mmH risers)
750
900
Inlet Pipe Nominal Size Dia. 100
Outlet Pipe Nominal Size Dia. 25
*Access cover lids are not included in the height
ＯＳ
Ｏ Ｓ
WL
Inlet
Recirculation Pipe
Sedimentation
Chamber
Anaerobic
Filtration
Chamber
Aeration Pipes
Pump Chamber
Chlorinator
Irrigation Pump
Access Covers
Blower Box
Outlet
Riser Ring
Pump
Sedimentation
Chamber
Anaerobic
Filtration
Chamber
Aerobic Contact
Filtration Chamber
Clarification
Chamber
Pump
Chamber

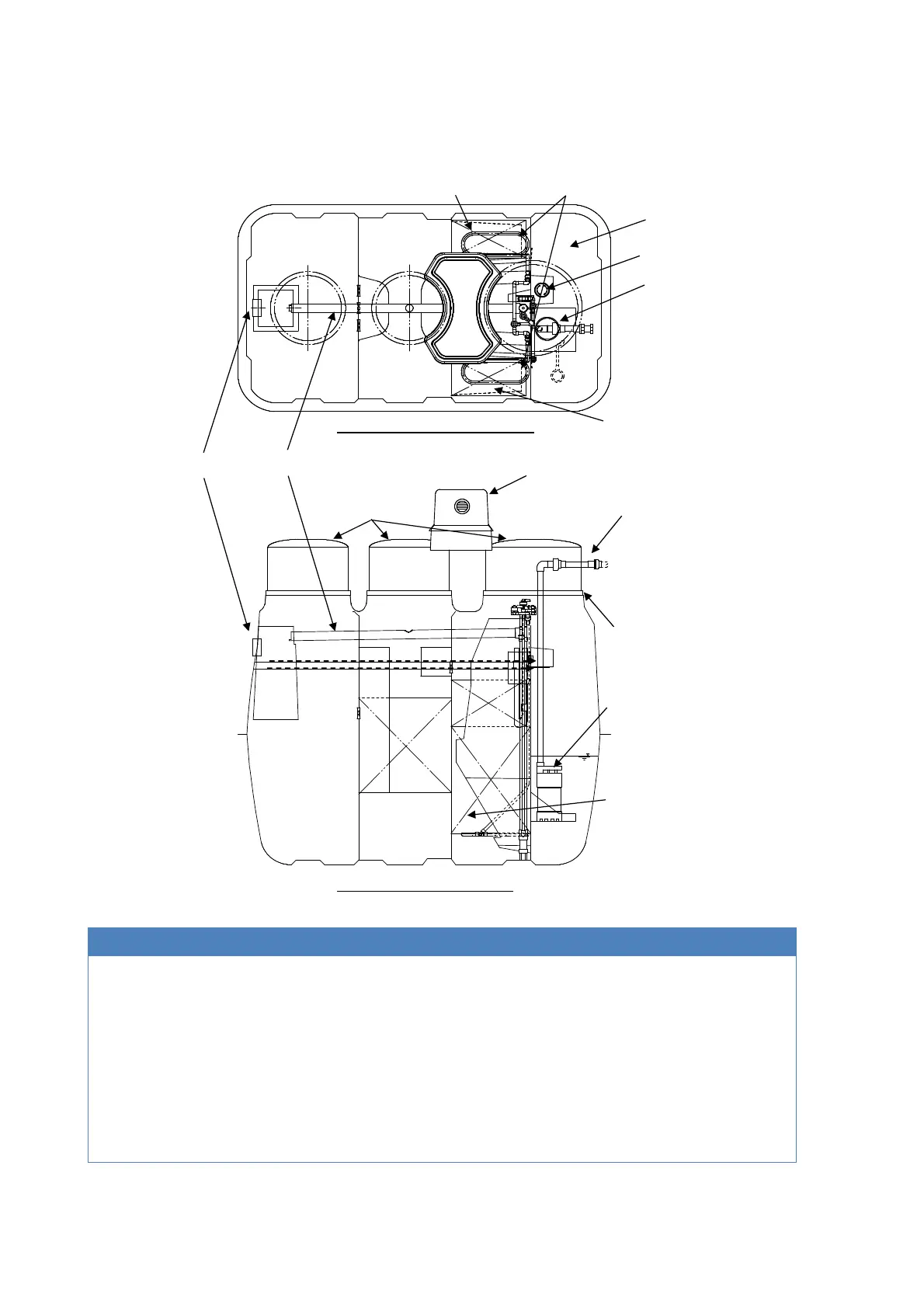

Horizontal Sectional View
Vertical Sectional View
Low Water Level(LWL) ↑
High Water Level(HWL) ↓
Aerobic Contact
Filtration Chamber
Aerobic Contact
Filtration Chamber
