FujiClean ACE - Wiring Instructions for Electrician

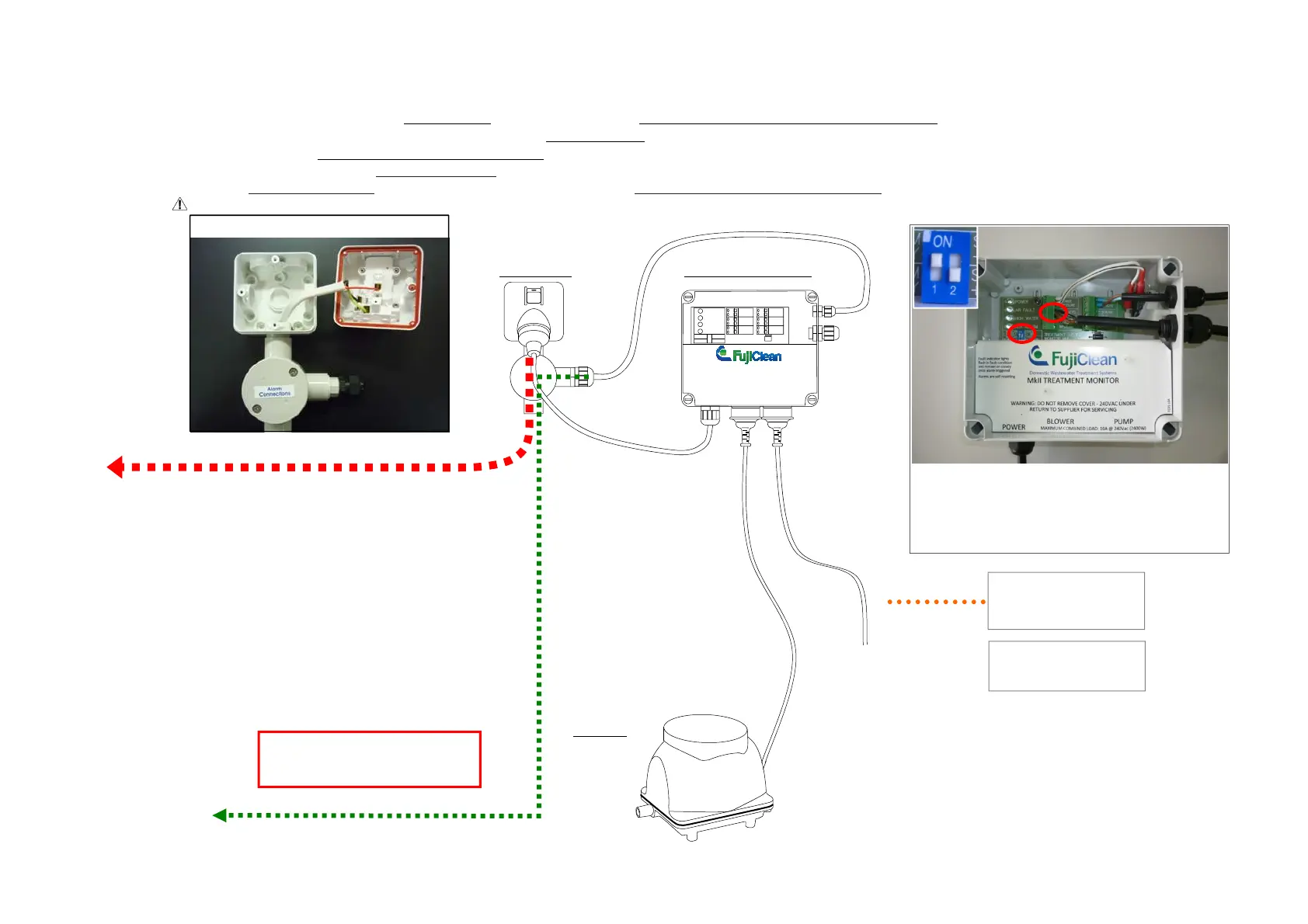

4 WIRING INSTRUCTIONS FOR ELECTRICIAN
Power Outlet
All electrical power connections to the system must be carried out by a licensed electrician.
The power supply to the FujiClean ACE is single phase service and requires a dedicated circuit protected by a 10A RCD.
Connect remote alarm plate to the Treatment Monitor Unit with two wire cable. Since the two wire alarm cable is enclosed in the same conduit as the mains supply
to this unit back to the house, the cable must be rated for 240V to comply with the Australian Standard.
Remote Alarm Plate must be positioned inside the dwelling in an area that is readily visible as per the Australian Standard.
If this is not possible an LED strobe light must be placed on blower box which is readily visible from inside the dwelling.
CAUTION: The warranty would void when the above instruction was neglected.
BLOWER
240V / 50Hz
single phase
68W *
* MAC100RII
Treatment Monitor Unit
High Water Float Switch
to monitor
PUMP FAILURE
Pressure Switch
to monitor
BLOWER FAILURE
Domestic Wastewater Treatm ent Systems
MkII TREATMENT MONITOR
WARNING: DO NOT REMOVE COV ER
—
240VAC UNDER
POWER
BLOWER
PUMP
MAXIMUM COMBINED LOAD: 10A @ 240Vac (2400W )
Fault indicator lights
POWER
AIR FAULT
HIGH WATER
AUX ALARM
TREATMENT SYSTEM
240V Mains Power Connection
WARNING!!
Never connect 240 Volt mains power
to the alarm wire connections.
A
B
(Mounted inside
the dwelling)
