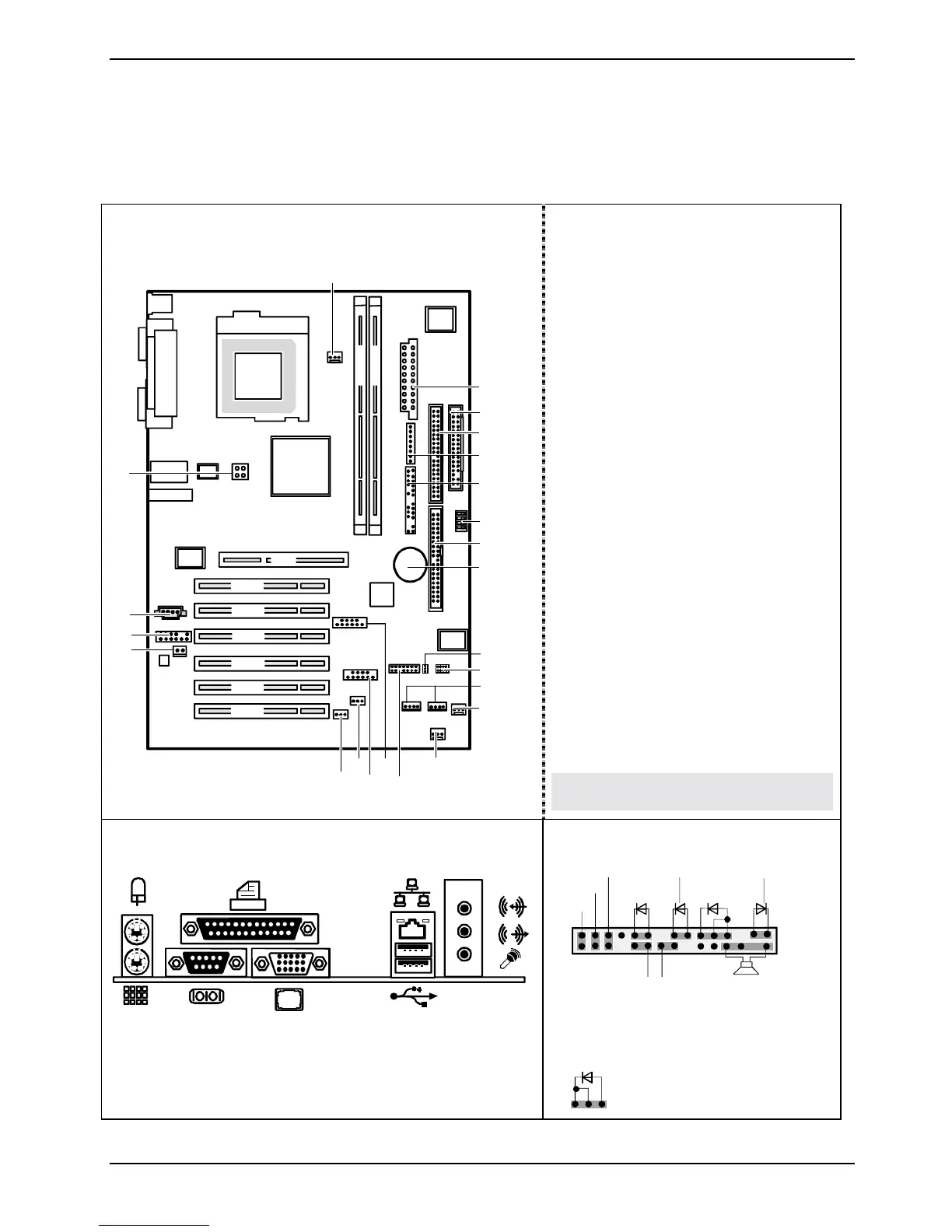

Übersicht /Overview Mainboard
D1526/D1527
Interne Anschlüsse und Steckplätze / internal
connectors and slots
DIMM 2
PCI 1
PCI 2
AGP
DIMM 1
PCI 4
PCI 5
PCI 3
20
21
1
2
3
4
5
7
9
19
12
14
11
15
17
13
23
PCI 6
22
16
8
6
10
18
1 = Stromversorgung / Power Supply
2 = Diskettenlaufwerk / Floppy disk drive
3 = IDE-Laufwerke 3/4 / IDE-drives 3/4
4 = Systemüberwachung / System
monitoring
5 = Bedienfeld / Frontpanel
6 = Schalter / Switch
7 = IDE-Laufwerke 1/2 / IDE-drives 1/2
8 = Batterie / Battery
9 = Power On LED II
10 = Serielle Schnittstelle 2 / serial
interface 2
11 = SMB 2, SMB 1
12 = Lüfter 2 / Fan 2
13 = Lüfter 3 / Fan 3
14 = LCD Bedienfeld / LCD Frontpanel
15 = USB C/D
16 = USB E/F
17 = Gehäuseüberwachung / Intrusion
18 = Wake On LAN
19 = S/PDIF Anschluss / S/PDIF
Connector
20 = Audio-Bedienfeld / Audio Frontpanel
21 = CD audio in
22 = Stromversorgung Prozessor /
Processor power supply
23 = Lüfter 1 / Fan 1
Optionale Komponenten / Optional
components
Externe Anschlüsse / external connectors
LAN
AUDIO
Bedienfeld / Front panel
1) Cable is not included in the delivery scope.
2) The same interface
3) 2pin or 3pin connector possible
1
2
HD-LED
1)
Power On/Off
SCSI LED Input
2)1)
1)
Sleep
Reset
1)
Power On
LED
1) 3)
Sleep LED
Speaker
Message LED
PowerOn LED II
3)
1)
13

Fujitsu Siemens Computers D1527 Specifications

General

Brand	Fujitsu Siemens Computers
Model	D1527
Category	Motherboard
Language	English
